ZYWELL ZM06 80mm Portable Thermal Printer

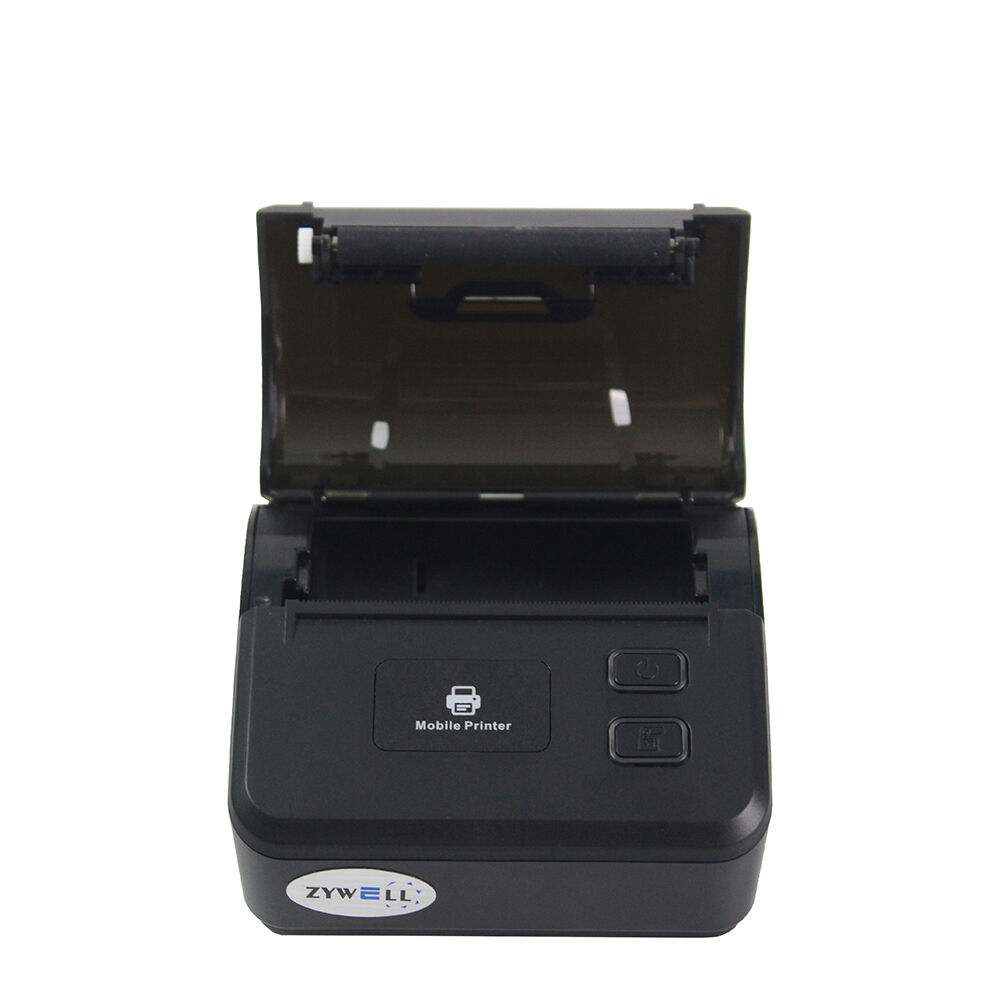

- Ingenious Lever Opening: Features a brand-new lever-style mechanism for effortless paper access and loading.
- Variable Media Support: Highly adaptable, supporting thermal paper widths from 48mm up to 80mm to meet diverse printing requirements.
- Status Indicators: Equipped with two-color lighting tips for clear, intuitive visual feedback on device status.
- Extended Battery Life: Powered by a 7.4V 2000mAh rechargeable Li-ion battery, providing a reliable standby time of one week.
- Modern Charging: The Type-C interface serves a dual purpose, supporting both high-speed charging and data communication.
- Mobile Optimized: Small footprint and lightweight design make it easy to carry for field service, logistics, and mobile law enforcement.
- Durable Core: Features a high-quality print head with a rated lifespan of 50km.
- Application Ready: Supports a wide range of mobile applications through a user-friendly App interface.
- Overview
- Parameter
- Product Details
- Recommended Products
ZM06: 80mm High-Capacity Portable Thermal Printer

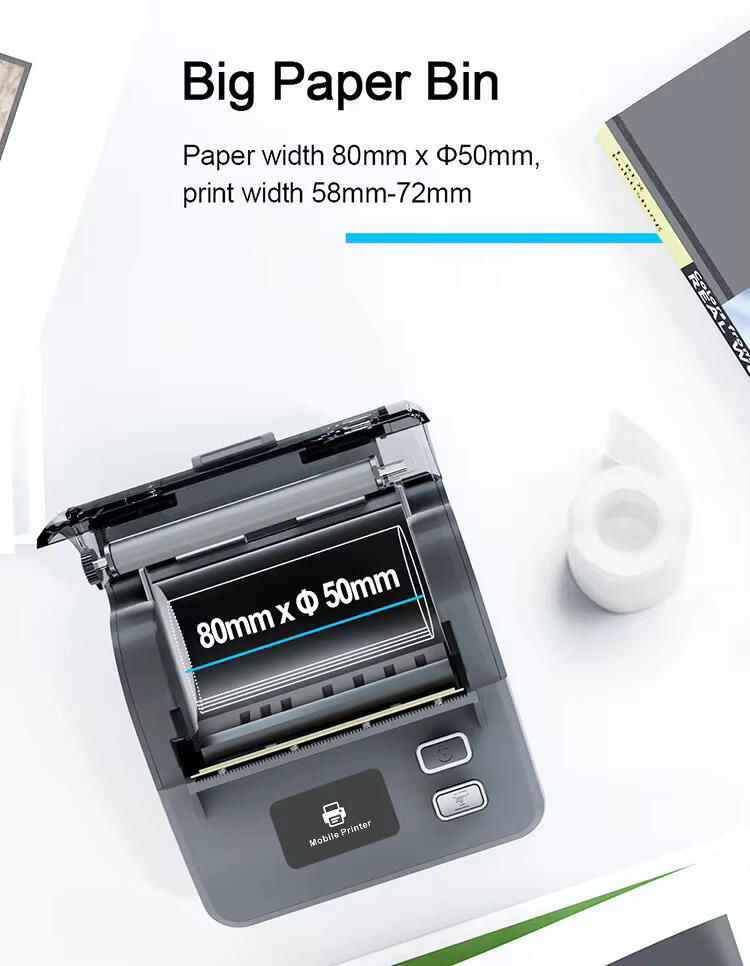

Paper Capacity: Unlike standard mobile printers, the ZM06 features an 80mm large paper bin. This minimizes downtime by allowing larger rolls, significantly reducing the frequency of paper changes in the field.
Battery Stamina: Equipped with a 2000mAh (7.4V) lithium-ion battery, providing up to 105 hours of standby time. It is built to last through entire work shifts without the need for midday recharging.
Unmatched Media Versatility: A single device that adapts to multiple business needs, supporting seven adjustable paper widths (from 48mm up to 80mm).
Efficient Performance: Delivers stable 80mm/s printing with a 50km rated print head. Features integrated sensors for Black Mark detection, paper out, and cover-open alerts to ensure error-free operation.
Modern Connectivity: Supports Bluetooth and WiFi for wireless integration with Android/iOS, utilizing a Type-C interface for both fast charging and data communication.
Ideal For: Last-mile logistics, mobile law enforcement, and high-traffic pop-up retail where reliability and paper capacity are critical.
| Model | ZM06 |
| Print Method | Direct Thermal |
| Resolution | 203 dpi (8 dots/mm) |
| Printing Width | 48mm (max) |
| Memory | Input buffer: 256k bytes; NV Flash: 2M |
| Interface | USB+BLUETOOTH/USB+WIFI |
| Print Speed | 80mm/s (Max) |
| Fonts | |
| Font A | 12x24 |
| Font B | 9x17 |
| Chinese Fonts | GB18030, BIG5 24x24dots; Supports alphanumeric characters, Simplified Chinese, Traditional Chinese; 35 international character sets |
| Barcode | |
| 1D | UPC-A, UPC-E, EAN-8, EAN-13, CODE 39, ITF, CODE 128, CODE 93 |
| 2D | QR code, PDF417 |
| Detection | |
| Sensors | Paper out, cover opening detection |
| Power Supply | |
| Battery | 7.4V rechargeable Li-ion battery, 2000mAh |
| Input | AC 100V-240V 50/60HZ |
| Output | DC 5V/1A |
| Charging time | 4 hours |
| Paper | |
| Paper Type | Thermal Receipt Paper |
| Paper Width | Max.57.5±0.5mm |
| Paper Thickness | 0.06-0.08mm |
| Roll Dia | Max. Φ40 mm(O.D) |
| Paper Load | Easy paper loading |
| Paper Cut | Manual tear |
| Physical Characteristics | |
| Working Condition | -10℃ ~ 50℃, 10% ~ 80% R.H, no-condensing |
| Storage Condition | -20 ~ 60℃, 10 ~ 90% R.H, no-condensing |
| Dimensions | 117(D)×110(W)×50(H) mm |
| Net weight | Net weight: 0.4kg; Gross weight: 0.5kg |
| Accessories | |
| Accessories | Data cable, Power plug, Battery, Manual |
| Reliability | |
| Printing head | 50KM |
| Packing | |
| Individual box | Dimension 128×66×170mm(L×W×H) 1unit/carton |
| Master carton | Dimension 410×300×385mm(L×W×H) 20unit/carton |
| OS | |
| Emulation | TSPL, CPCL, ESC/POS |
| Driver | Windows/Linux/Mac |
| SDK | iOS/Android/Windows |
