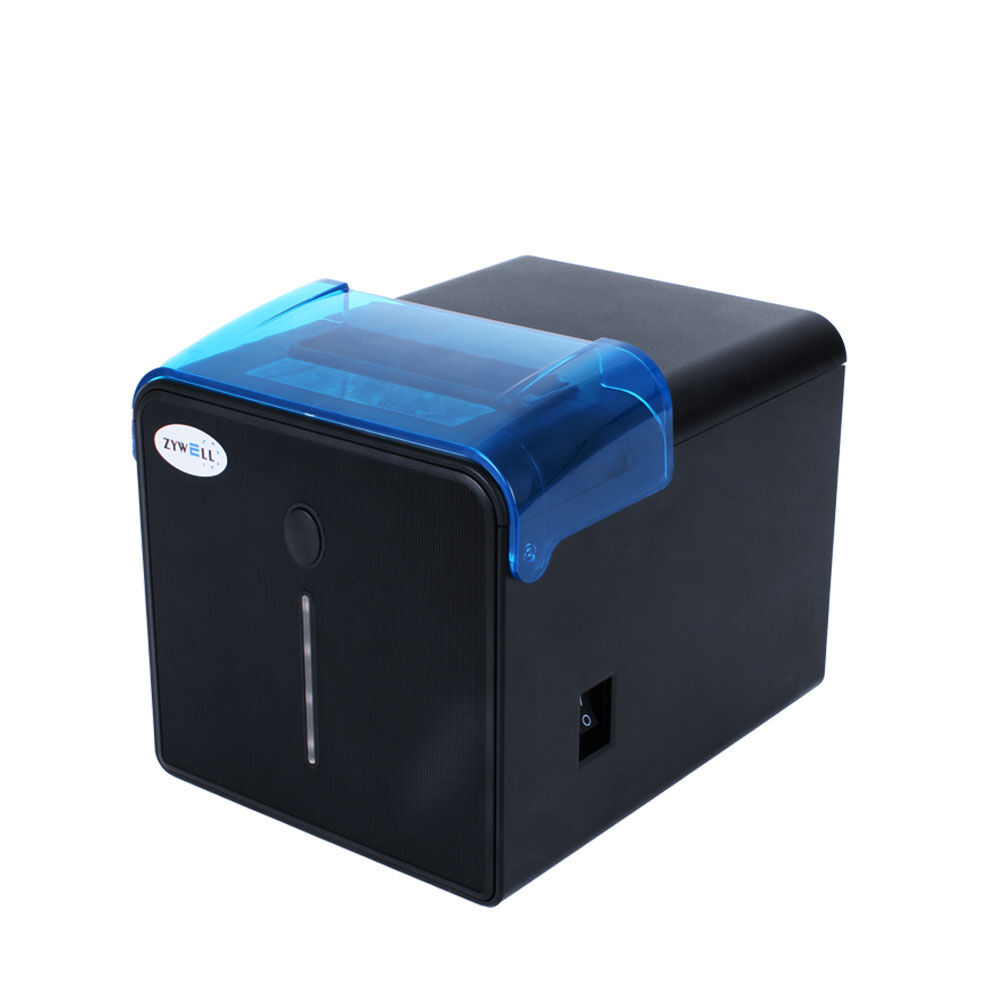

ZYWELL Zy905 80mm Kitchen Printer
High-Velocity Output: Delivers rapid processing and printing of both complex text and high-resolution graphics, ensuring order tickets are dispensed instantly during peak hours.
Proactive Network Monitoring: Supports advanced network status monitoring, allowing kitchen staff or IT managers to verify connectivity and printer readiness at a glance.

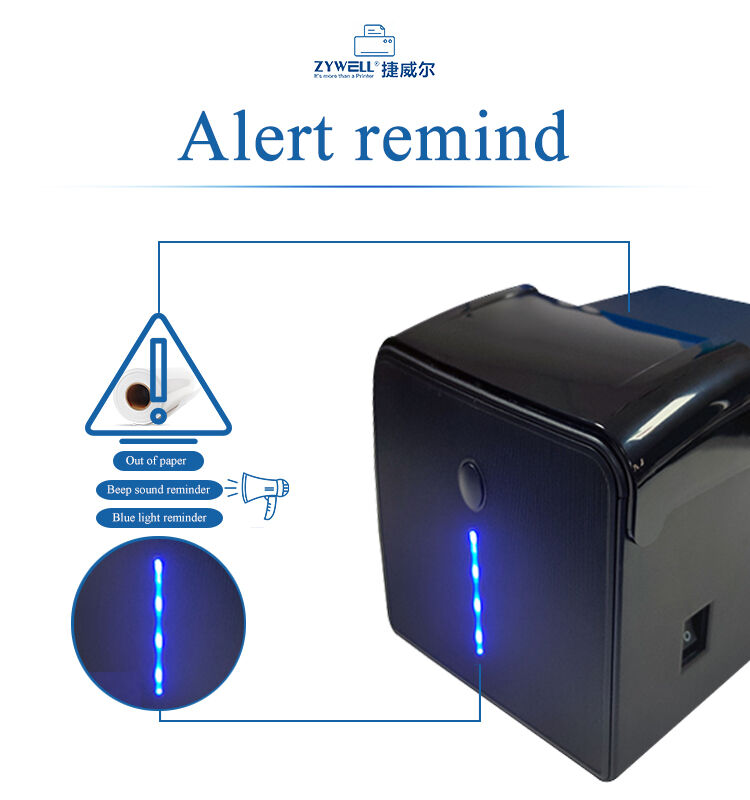

Zero-Miss Order Notification: Engineered with a high-decibel internal beeper and a flashing LED alert system, ensuring that orders are noticed immediately, even in loud, high-pressure kitchen environments.

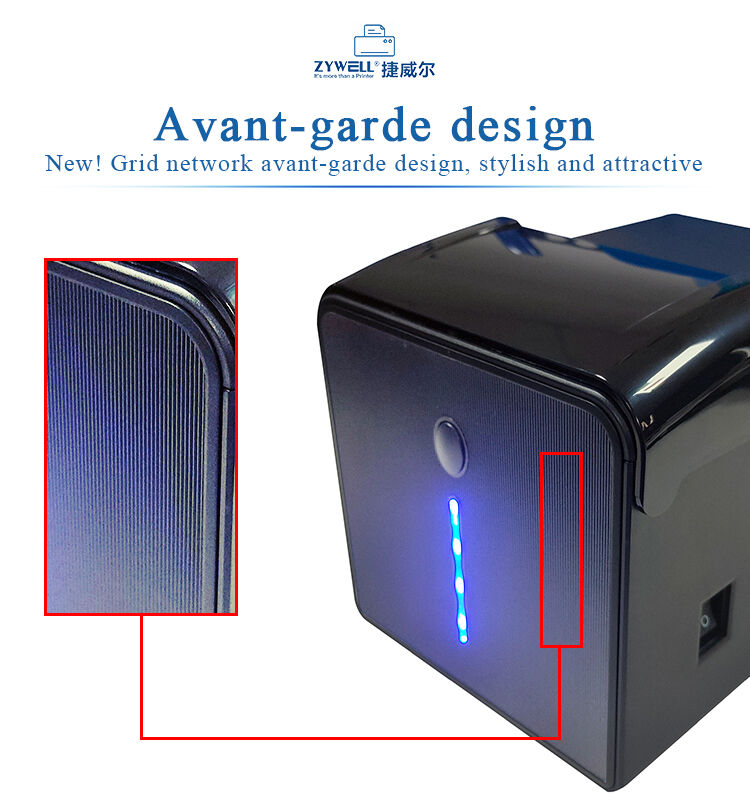

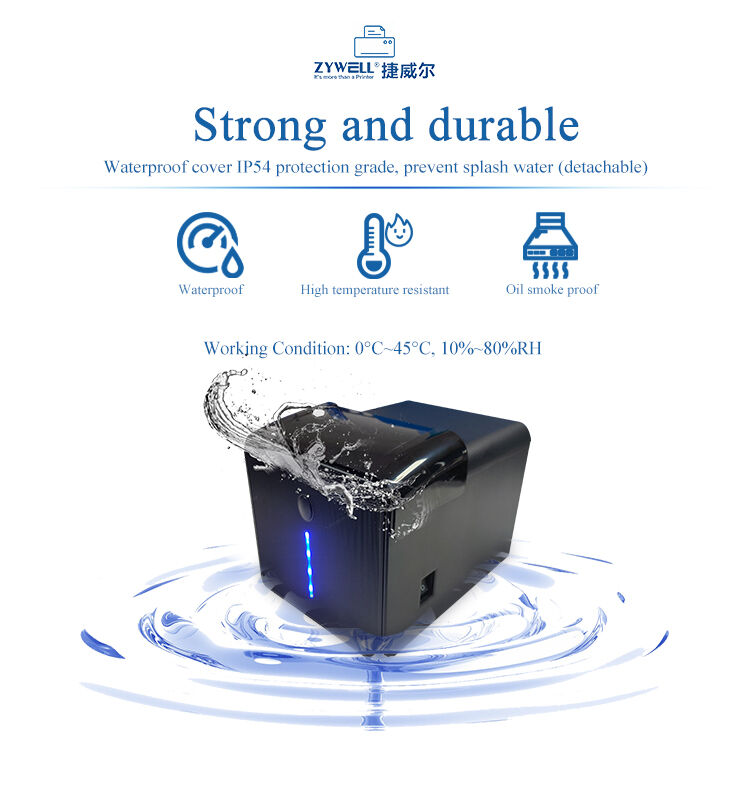

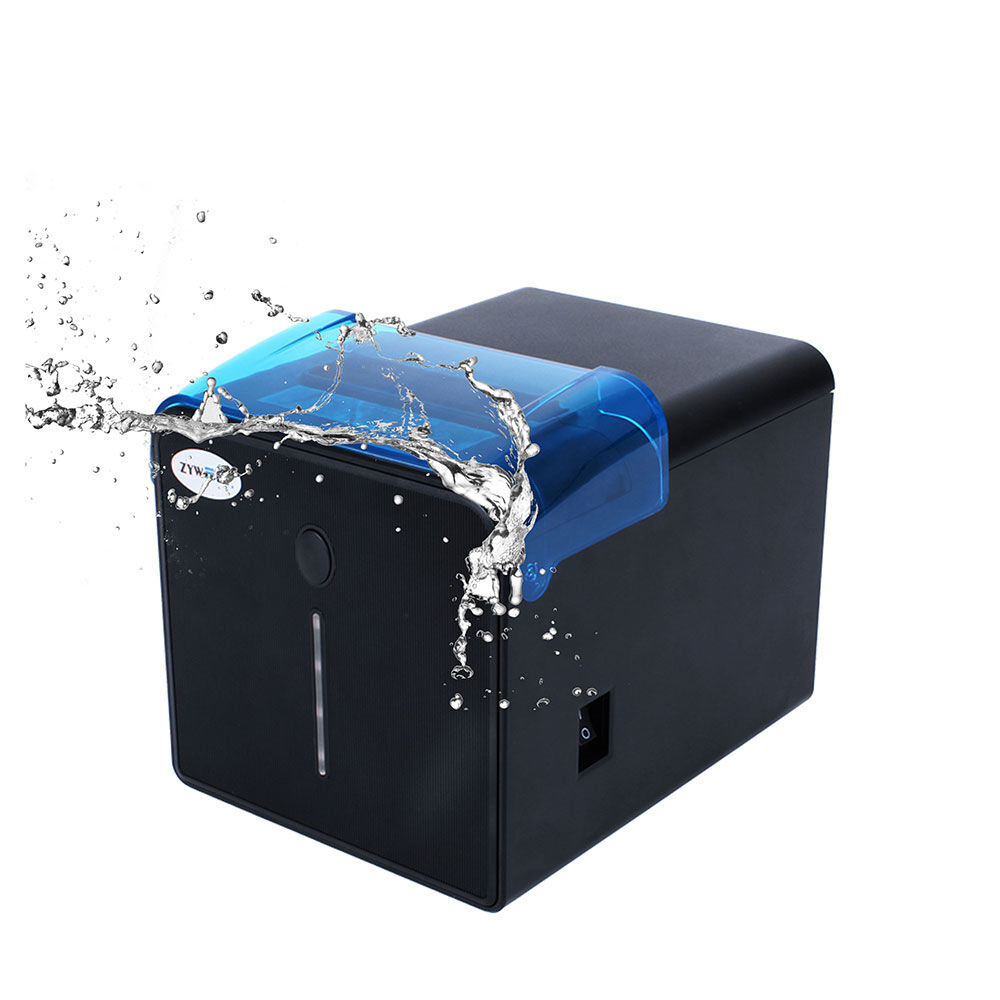

IP54-Rated Protection: Features an IP54-grade waterproof cover combined with an avant-garde grid network design, providing superior protection against splashes, steam, and oil.

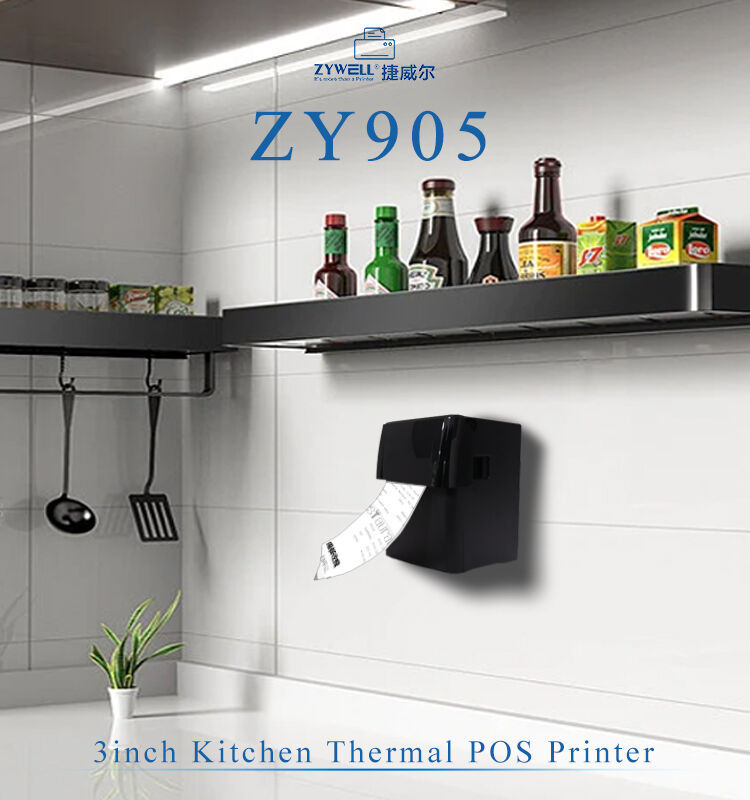

Industrial Hygiene & Durability: Incorporates a specialized cockroach-proof vent design to prevent pest intrusion, paired with wall-mounting support to optimize vertical space and keep the unit away from counter-top spills.
- Overview
- Parameter
- Product Details
- Recommended Products
In the heart of a busy restaurant, the kitchen printer is the vital link between the front-of-house and the culinary team. The Zy905 is purpose-built to thrive where standard printers fail. Encased in an IP54-rated waterproof and dustproof housing, it is shielded from the inevitable splashes, steam, and airborne grease of a professional line. To ensure maximum hygiene and operational longevity, it features a specialized cockroach-proof vent design, preventing pest intrusion and internal hardware damage—a critical requirement for health-compliant kitchen environments.
Communication in a loud, high-heat kitchen must be unmistakable. The Zy905 eliminates the risk of missed tickets through a dual-sensory alert system, combining a high-decibel beeper with a synchronized flashing LED. This ensures that even during the most chaotic dinner rush, every order is acknowledged instantly. With its avant-garde grid design and integrated wall-mount capability, the Zy905 doesn't just sit on a counter—it optimizes the workspace, keeping your order flow seamless, organized, and entirely reliable from the first ticket to the last.
| Item | Specification |
|---|---|
| Model | Zy905 |
| Print Method | Direct Thermal |
| Resolution | 576 dots/line |
| Printing Width | 80mm (max)/72mm (default) |
| Paper separator (option) | 48mm/52mm/56mm/64mm/68mm/76mm/80mm |
| Memory | NV Flash 256k bytes |
| Interface | U+L/U+S+L/U+S+L+BT/U+S+L+W |
| Print Speed | 230-260mm/s |
| Voice reminder | Support |
| Fonts | |
| Font A | 12×24 |
| Font B | 9×17 |
| Chinese | GB18030, BIG5 24x24dots |
| Japanese/Korea | Optional |
| User-defined | Support |
| Barcode | |
| 1D | UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)/CODE39/ITF/CODABAR/CODE93/CODE128 |
| 2D | QR code |
| Detection | |
| Sensors | Paper shortage, cover open, over heat, cutter stuck, paper pick sensor |
| Power Supply | |
| Input | AC 100V-240V 50/60HZ |
| Output | DC 24V/2.5A |
| Paper | |
| Paper Type | Thermal Receipt Paper |
| Paper Width | Max.79.5±0.5mm |
| Paper Thickness | 0.06~0.08mm |
| Roll Dia | Max. Ø 83 mm |
| Paper Load | Easy paper loading |
| Paper Cut | Auto-cutter |
| Physical Characteristics | |
| Working Condition | 0°C~45°C, 10%~80%RH |
| Storage Condition | -10°C~60°C,10%~90%RH |

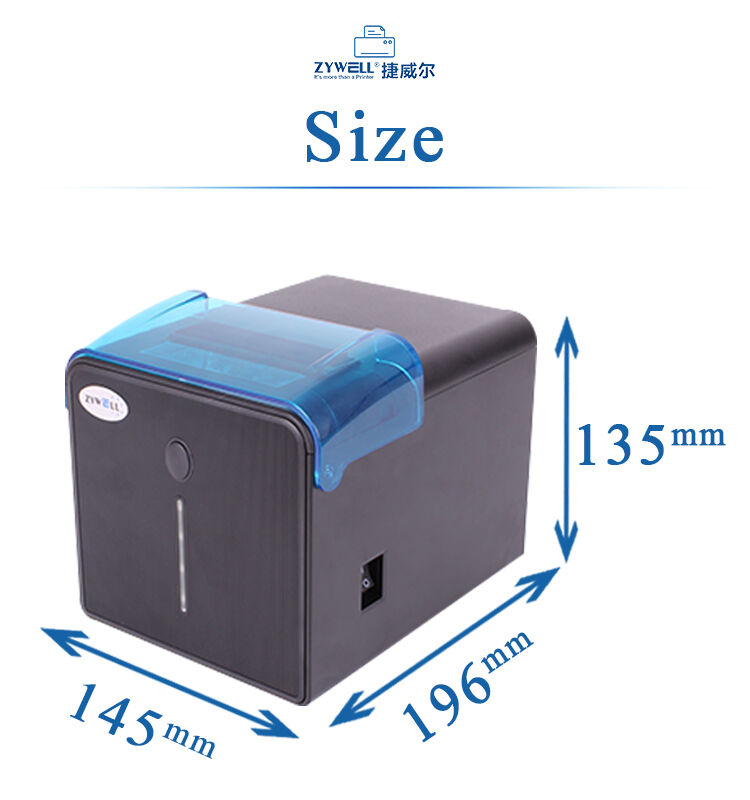

| Dimensions | 196(D)×145(W)×135(H)mm |
| Net weight | Net weight: 1.2kg, Gross weight: 1.7kg |
| Reliability | |
| Printing head | 150KM |
| Cutter | 1.5million |
| Accessories | Data cable, Power adaptor, Power cord, Paper roll, CD, Manual, Roller, Paper separator(option) |
| Packing | |
| Individual box | Dimension 286×164×160mm(L×W×H) 1unit/carton |
| Master carton | Dimension 615×370×535mm(L×W×H)12unit/carton |
| OS | |
| Emulation | ESC/POS |
| Driver | Windows/Linux/Mac |
| SDK | Android/iOS/Windows |
