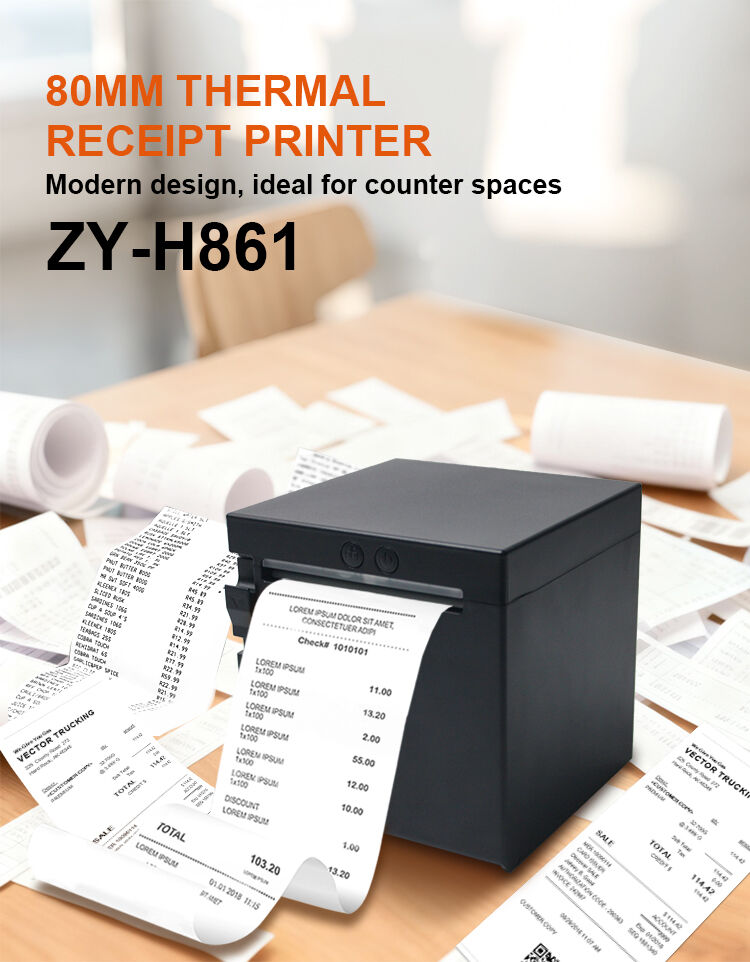

ZYWELL Zy-H861 Thermal Receipt Printer
- Modern Craftsmanship: Features a fashionable and minimalist aesthetic, combining a compact footprint with an exquisite finish that complements any modern service counter.
- Space-Saving Efficiency: Its small-form-factor design is ideal for high-traffic environments where workspace is at a premium.

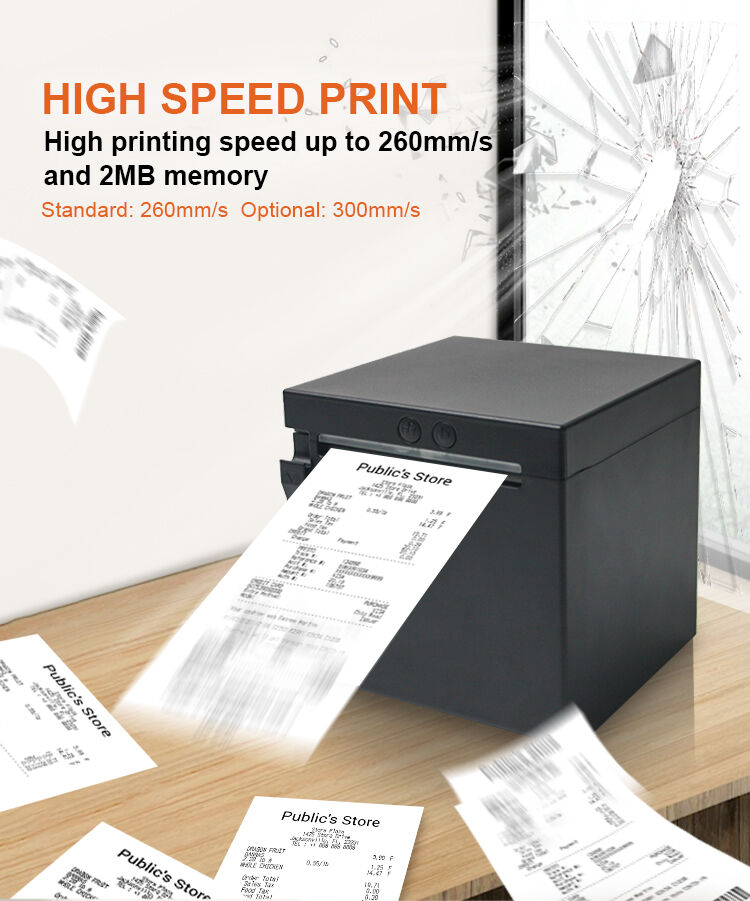

- High-Speed Output: Capable of printing at speeds up to 260mm/s, ensuring rapid service and enhanced customer satisfaction.
- Enhanced Memory: Built-in 2MB memory capacity allows for steady data processing and reliable execution of print commands.
- Dual Discharge Modes: Offers adjustable paper output options, supporting both "Top Paper Exit" and "Front Paper Exit" to accommodate various installation heights and angles.
- Flexible Interface: Designed for easy integration with existing systems, providing a seamless user experience.

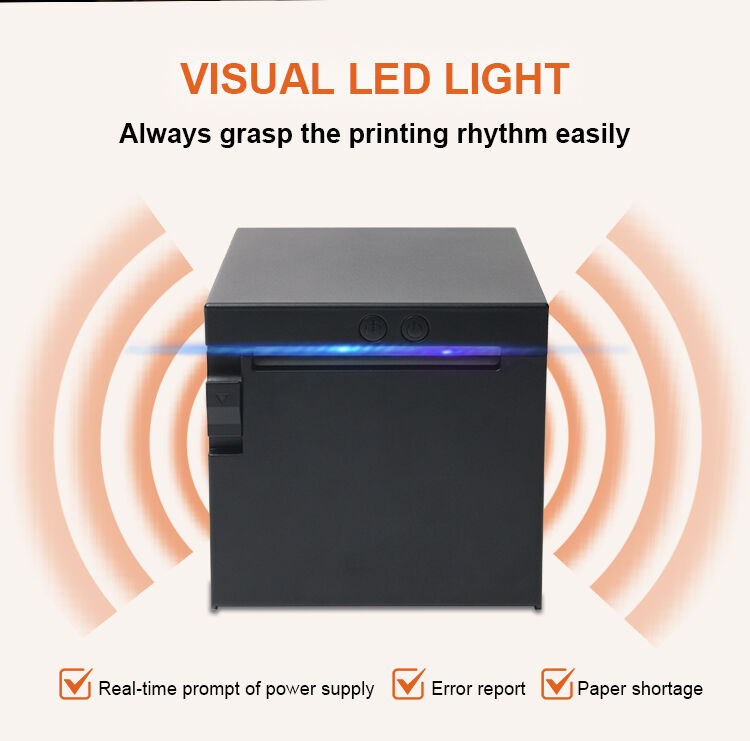

- Visual Diagnostics: Equipped with an intuitive LED indicator light, allowing users to monitor the machine's status at a single glance.
- Comprehensive Sensor Suite:
- Over-temperature detection (for hardware protection).
- Paper-out detection (to prevent data loss).
- Cover-opening detection (for operational safety).
- Overview
- Parameter
- Product Details
- Recommended Products
The ZYWELL ZY-908 is a compact and efficient thermal receipt printer, designed to optimize workspace and enhance productivity. With a built-in power adapter, it eliminates messy cables, ensuring a clean and organized desk setup.
For businesses looking to save space, the ZY-908 comes with a wall-mounting option, making it an excellent choice for retail, hospitality, and service industries. It supports NV logo customization, allowing businesses to personalize each receipt with their brand identity.
Built with a high-quality Japanese printing mechanism, the ZY-908 offers exceptional durability and a long operational life. It features an auto-cutter for precise and hassle-free paper cutting, reducing manual effort and improving workflow efficiency.
This printer is highly versatile, with multiple connectivity options, including USB, LAN, Serial, Bluetooth, and Wi-Fi (optional), making it compatible with Windows, Mac, and Linux systems. Whether for restaurants, retail stores, or corporate offices, the ZY-908 delivers fast, reliable, and professional receipt printing to meet various business needs.
| Model | Zy-H861 |
| Print Method | Direct Thermal |
| Resolution | 203dpi |
| Printing Width | 80mm(MAX)/72mm(default) |
| Paper separator (option) | 58mm(57.5±0.5mm)/80mm(79.5±0.5mm) |
| Memory | Input buffer: 2M; NV Flash: 256kbytes |

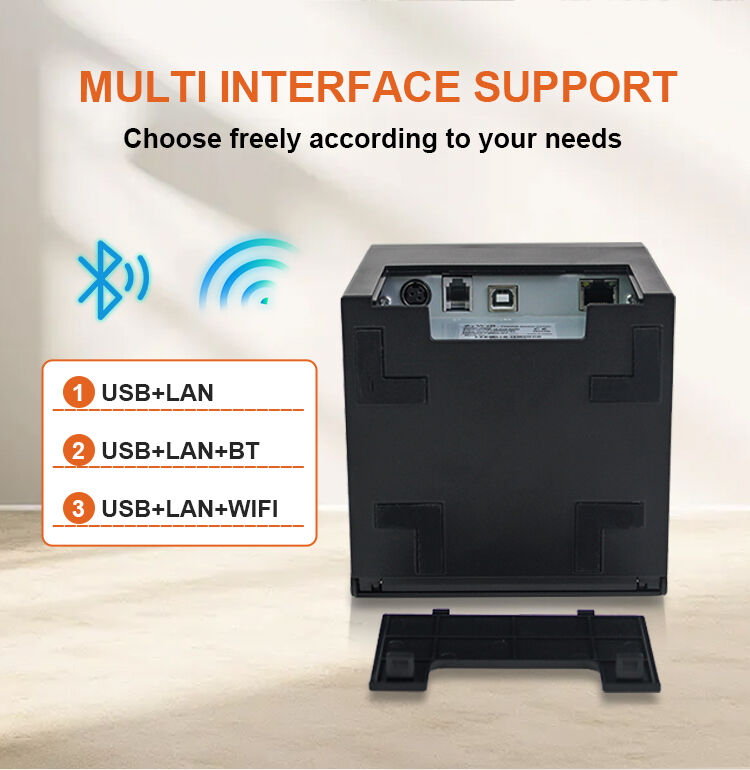

| Interface | USB+LAN/USB+LAN+WIFI/BLUETOOTH(optional) |
| Print Speed | 260mm/s |
| Discharge direction | "Top paper" and "Front paper" can be adjusted in both directions |
| Fonts | |
| Font A | 12x24 |
| Font B | 9x17 |
| Chinese | GB18030, BIG5 24x24dots |
| Japanese/Korea | Japanese JIS, Korean KSC5601 (optional) |
| User-defined | Support |
| Character Size (mm) | Font A:1.5x3.0mm; Font B:1x2.1mm; Simple/Traditional:3.0x3.0mm |
| Barcode | |
| 1D | UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)/CODE39/ITF/CODABAR/CODE93/CODE128 |
| 2D | QR code, PDF417 |
| Detection | |
| Sensors | Lack of paper detection, open cover detection, overtemperature detection |
| Power Supply | |
| Input | AC 100V-240V 50/60HZ |
| Output | DC 24V/2.5A |
| Paper | |
| Paper Type | Thermal Receipt Paper |
| Paper Width | 58mm(57.5±0.5mm)/80mm(79.5±0.5mm) |
| Paper Thickness | 0.04-0.08mm |
| Roll Dia | Max. Ø 82 mm |
| Paper Load | Easy paper loading |
| Paper Cut | Auto-cutter (half cut) |
| Physical Characteristics | |
| Working Condition | 5℃-45℃, 10%-90%RH |
| Storage Condition | -20℃-60℃, 10%-90%RH |

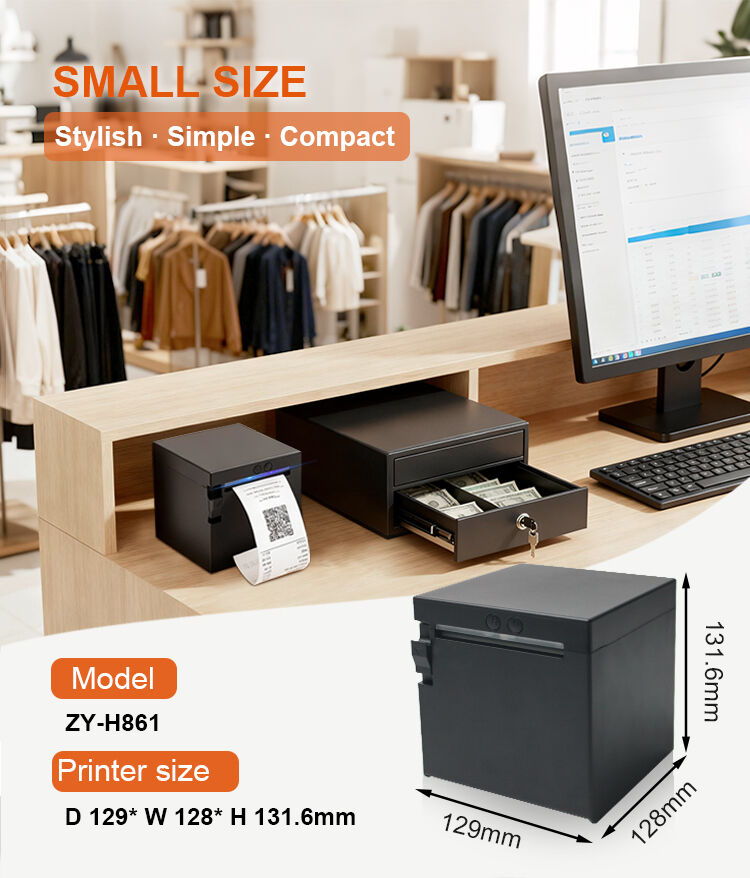

| Dimensions | 128(D)x129(W)x132.6(H)mm |
| Net weight | Net weight: 1.0kg; Gross weight: 1.7kg |
| Reliability | |
| Printing head | 150KM |
| Cutter | 2.0million |
| Accessories | |
| Accessories | USB data cable, Power adaptor, Power cord, Paper roll, CD, Manual, Paper separator, Serial cable (optional) |
| Packing | |
| Individual box | Dimension 230×155×144mm(L×W×H) 1unit/carton |
| Master carton | Dimension 480×310×490mm(L×W×H) 12unit/carton |
| OS | |
| Emulation | ESC/POS |
| Driver | Windows/Linux/Mac |
| SDK | Android/iOS/Windows |
| Safety standard | CCC/ROHS/CE |
| Website | www.zywell.net/www.zywell.com |
