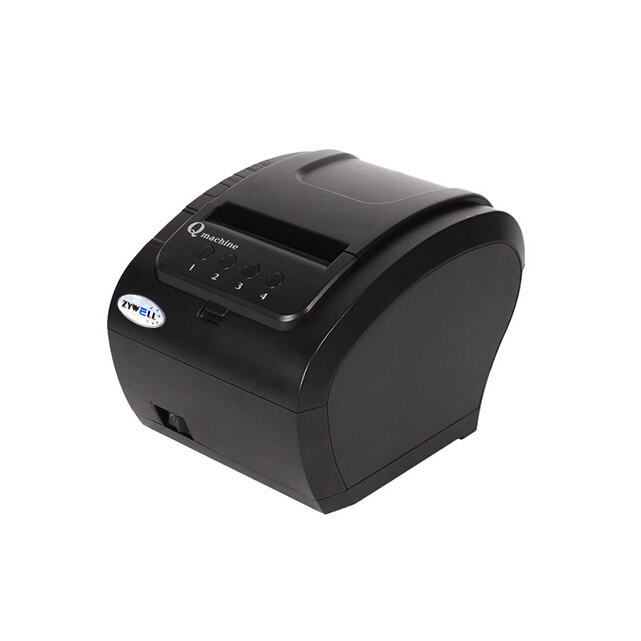

ZYWELL Zy307Q Queue Number Thermal Printer

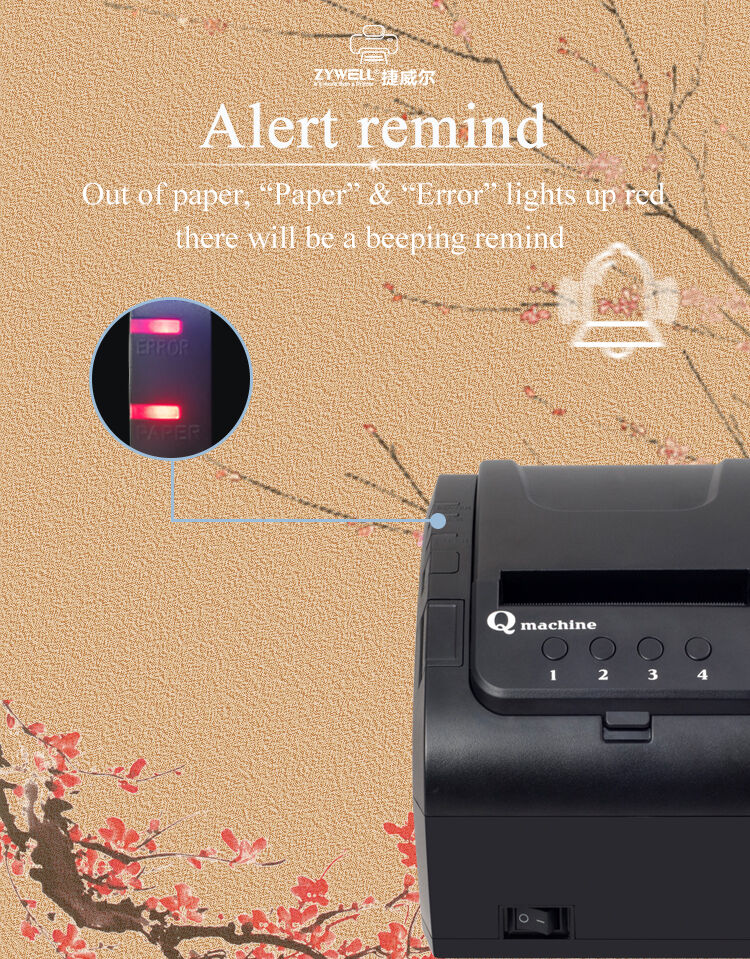

Intelligent Error Monitoring: Features a comprehensive prompt system that alerts operators to paper jams, cutter jams, and open covers, minimizing downtime in high-traffic queue environments.
Integrated Cash Drawer Support: Equipped with a standard RJ11 interface, allowing the printer to trigger a connected cash drawer for unified POS and ticketing operations.
Versatile Media Support: Fully compatible with high-definition QR codes, text, and graphics, ensuring that queue numbers and promotional content are clear and scannable.
Adaptable Paper Handling: Supports eight different paper widths (optional), providing the flexibility to switch between various ticket formats and sizes within a single hardware platform.
- Overview
- Parameter
- Product Details
- Recommended Products

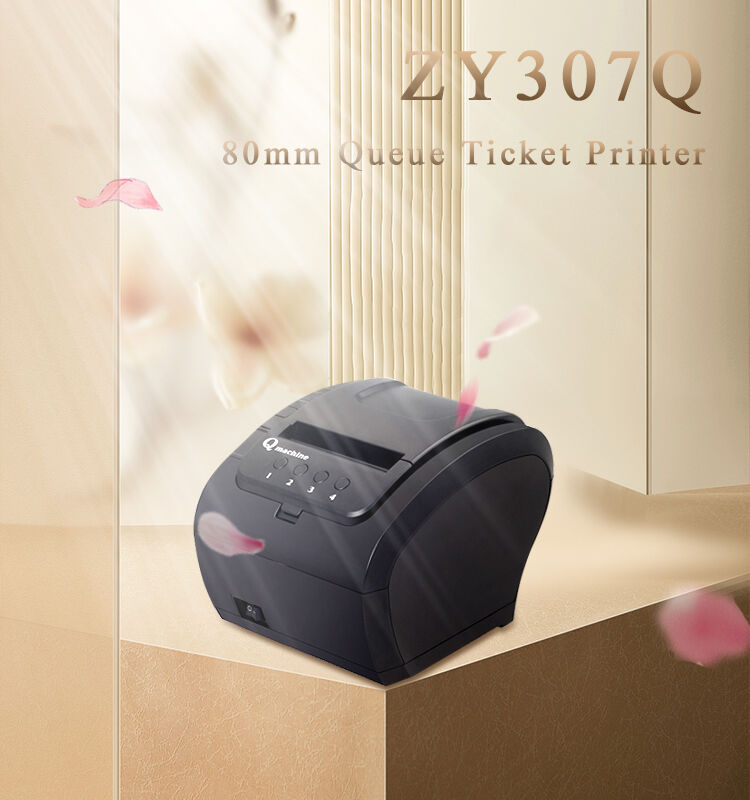

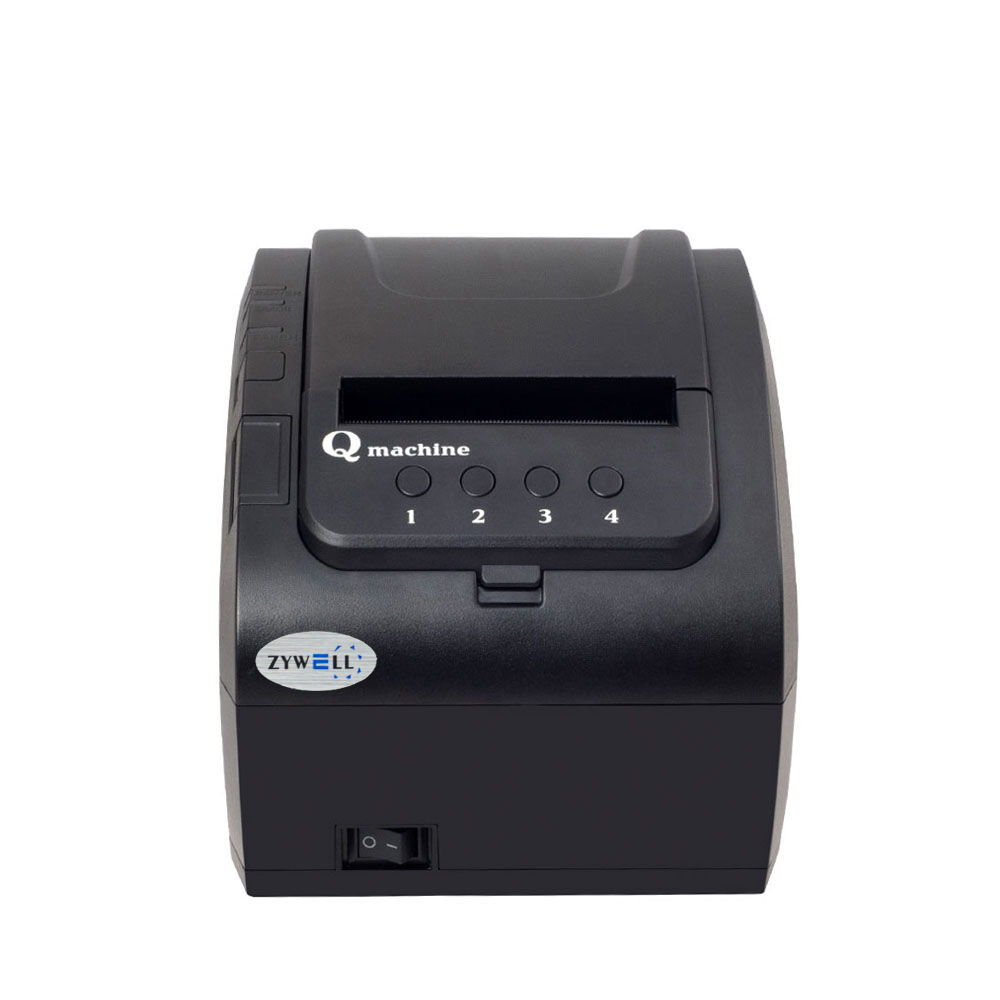

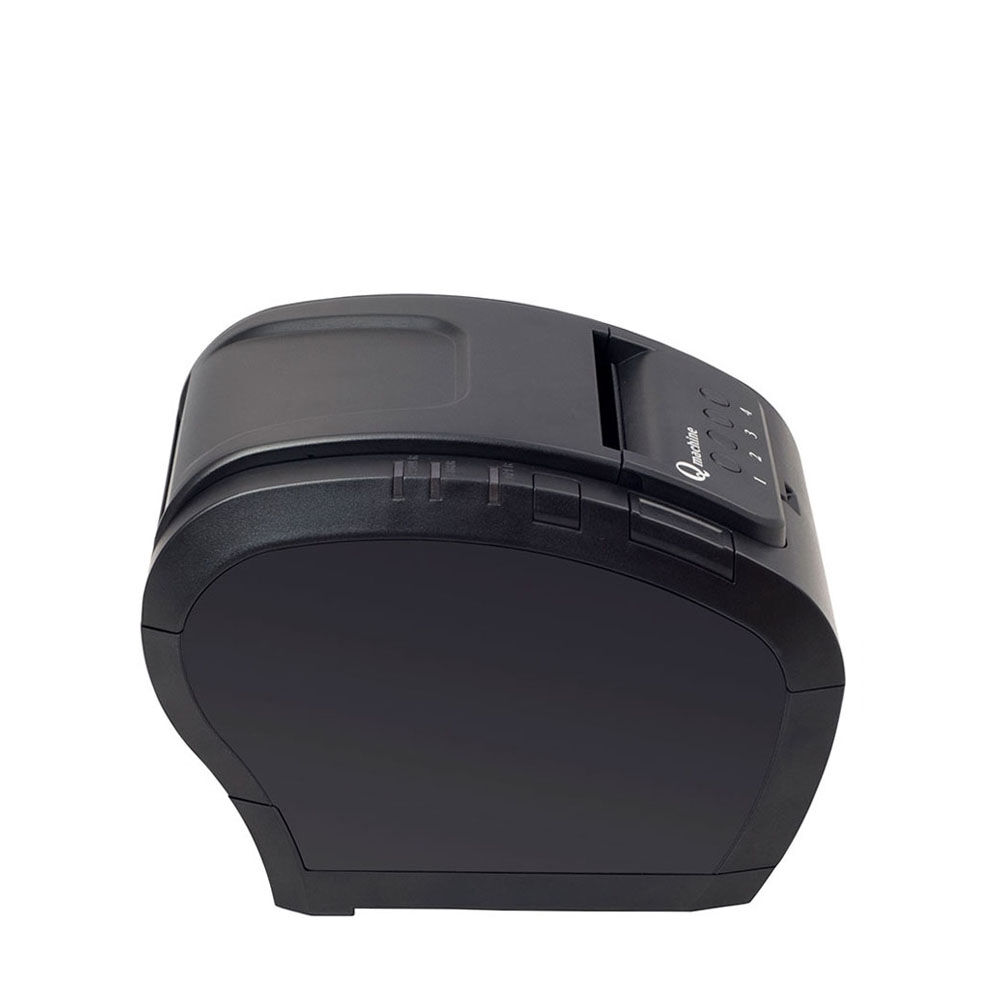

The ZYWELL Zy307Q is a high-performance 80mm thermal printer engineered to eliminate operational downtime in busy service environments like banks and clinics. It proactively solves common maintenance issues with intelligent error prompts for paper jams, cutter jams, and open covers, ensuring your queue management remains uninterrupted.

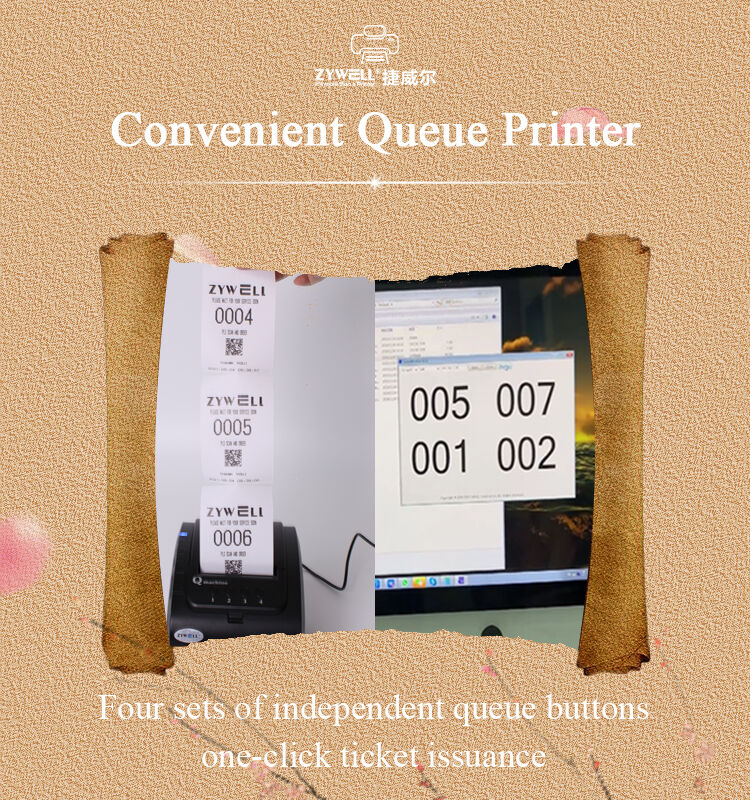

Featuring a robust industrial-grade printing mechanism, it supports high-speed output for customizable queue tickets, QR codes, and graphics across eight different paper widths (optional).
ZYWELL provides comprehensive OEM/ODM services, including custom branding and specialized firmware, to deliver a hardware solution perfectly tailored to your project needs.
| Item | Specification |
|---|---|
| Model | Zy307Q |
| Print Method | Direct Thermal |
| Resolution | 576 dots/line |
| Printing Width | 80mm (Max)/72mm (default) |
| Paper separator (option) | 48mm/52mm/56mm/64mm/68mm/76mm/80mm |
| Input buffer | 256k bytes |
| NV Flash | 256k bytes |
| Interface | USB+LAN+SERIAL |
| Queuing function | Support |
| Print Speed | 260mm/s (Max) |
| Fonts | |
| Font A | 12×24 |
| Font B | 9×17 |
| Chinese | GB18030, BIG5 24×24dots |
| Japanese/Korean | Support |
| User-defined | Support |
| Barcode | |
| 1D | UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)/CODE39/ITF/CODABAR/CODE93/CODE128 |
| 2D | QR code |
| Detection | |
| Sensors | Paper shortage detection, cover opening detection, over temperature detection, knife jam detection |
| Power Supply | |
| Input | AC 100V-240V 50/60HZ |
| Output | DC 24V/2.5A |
| Paper | |
| Paper Type | Thermal Receipt Paper |
| Paper Width | Max.57.5±0.5mm or 79.5±0.5mm |
| Paper Thickness | 0.06~0.08mm |
| Roll Dia | Max. Ø 82 mm |
| Paper Load | Easy paper loading |
| Paper Cut | Auto-cutter |
| Physical Characteristics | |
| Working Condition | 0°C~45°C, 10%~80%RH |
| Storage Condition | -10°C~60°C, 10%~90%RH |
| Dimensions | 191(D)×145(W)×141.5(H)mm |
| Net weight | Net weight: 1.0kg, Gross weight: 1.8kg |
| Reliability | |
| Printing head | 150KM |
| Cutter | 1.5million |
| Accessories | Data cable, power adapter, power cord, paper roll, CD, instruction manual, roller, paper baffle (optional) |
| Packing | |
| Individual box | Dimension 266×164×160mm(L×W×H) 1unit/carton |
| Master carton | Dimension 575×370×535mm(L×W×H) 12unit/carton |
| OS | |
| Emulation | ESC/POS |
| Driver | Windows/Linux/Mac |
| SDK | Android/iOS/Windows |
| Website | www.zywell.net/www.zywell.com |
