ZYWELL Zy-3311 80mm Thermal Linerless Printer
- Increased Roll Capacity: By eliminating the bulky liner, the number of labels per roll increases by as much as 65% compared to standard rolls of the same diameter.
- Reduced Downtime: More labels per roll mean fewer roll changes, allowing for continuous, high-volume labeling workflows.
- Optimized Storage: Without the extra thickness of the backing paper, significantly less warehouse space is required for label inventory.
- Lower Freight Costs: Lighter and more compact rolls can reduce total transportation costs by 35% to 40%, directly improving your bottom line.
- Improved Environment: The absence of smooth, siliconized backing paper (which often ends up on the floor) creates a safer, slip-free production environment.
- Simplified Cleanup: Eliminates the need to manage and dispose of hazardous or messy waste paper during the printing process.
- Zero Waste Construction: Linerless technology eliminates 100% of backing paper waste, ensuring that every part of the roll is used for labeling.
- Reduced Carbon Footprint: Offers a measurable reduction in CO2 emissions during both the manufacturing and transportation phases, supporting your corporate ESG (Environmental, Social, and Governance) goals.
- Overview
- Parameter
- Product Details
- Recommended Products

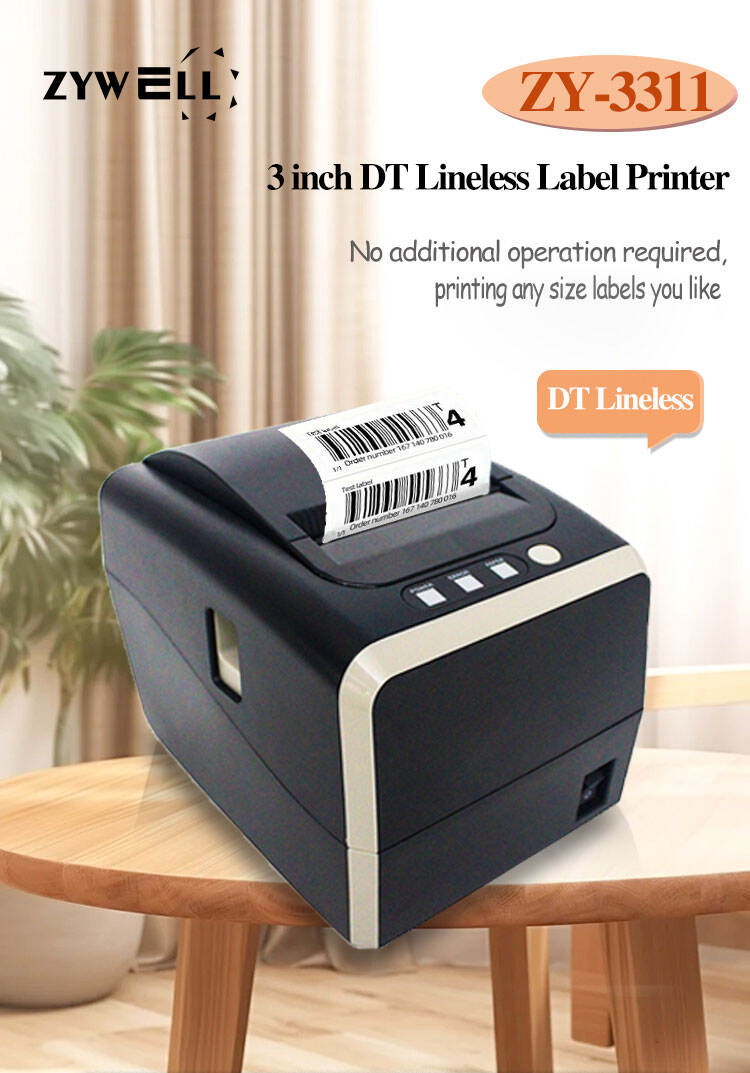

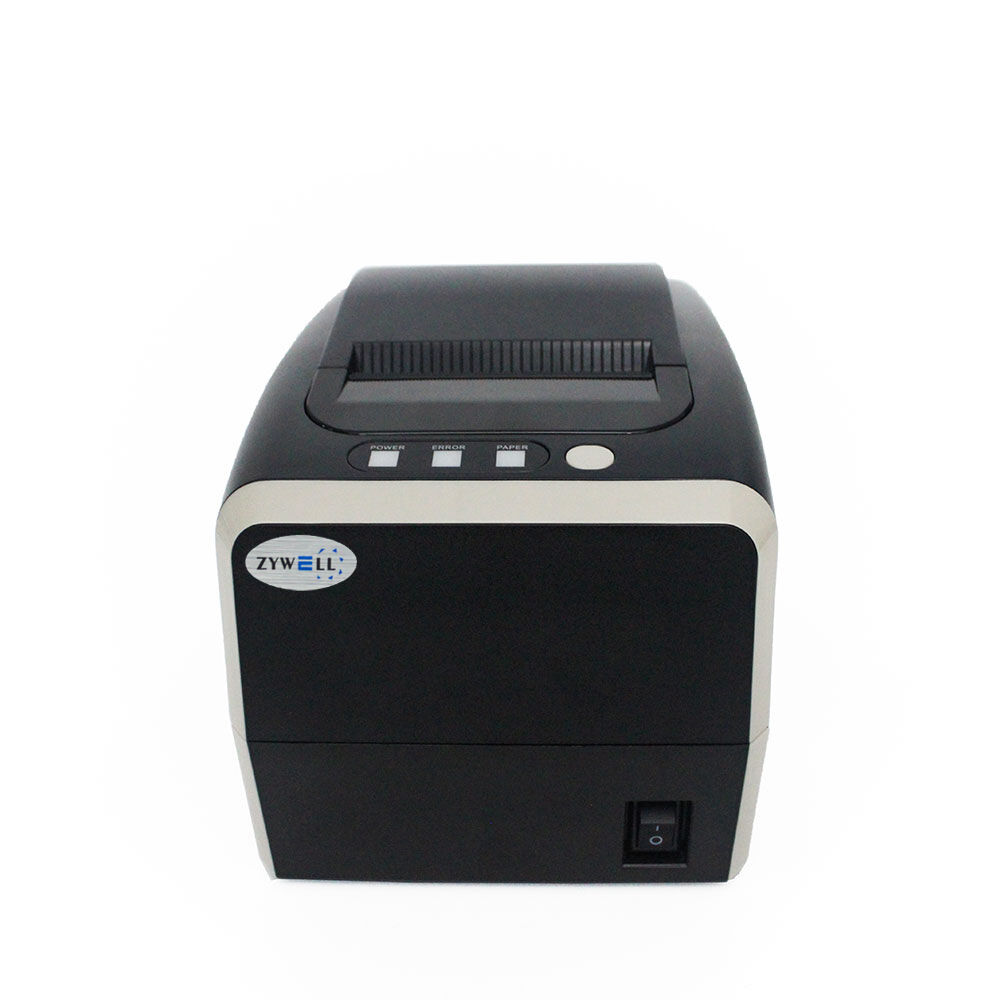

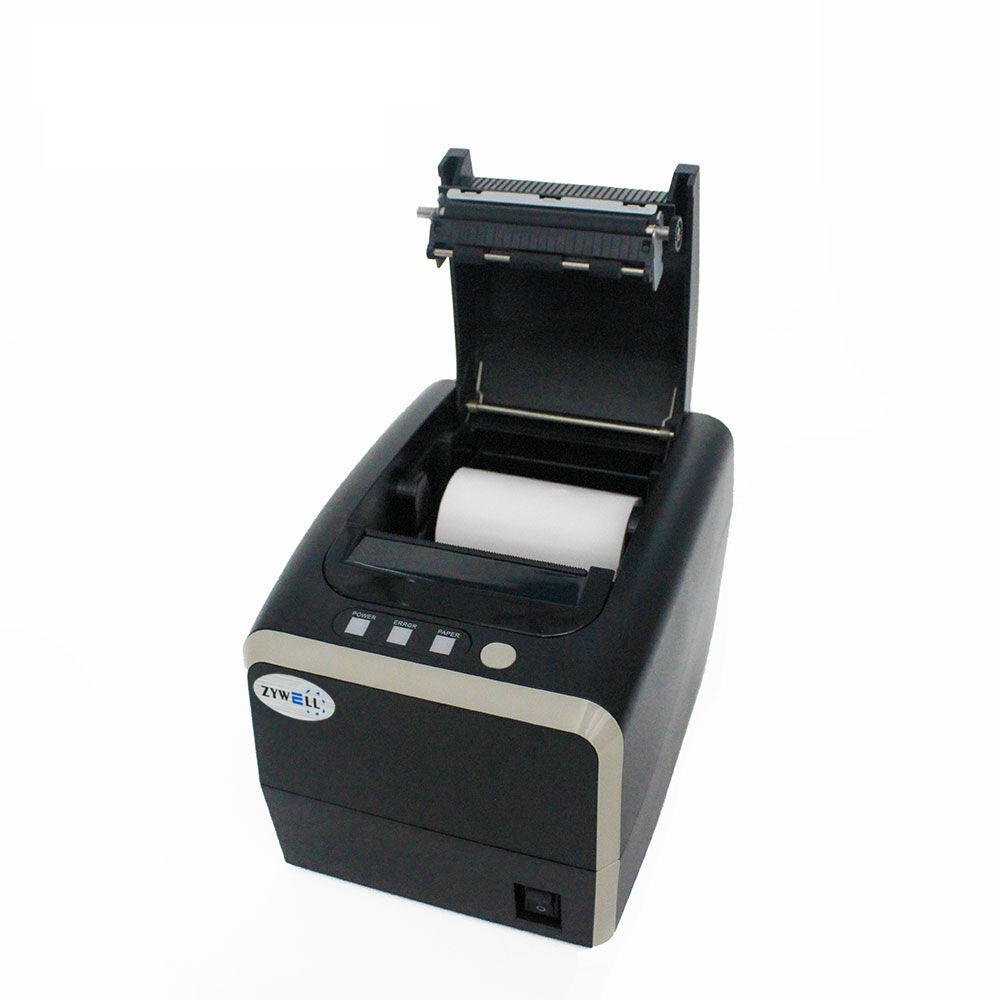

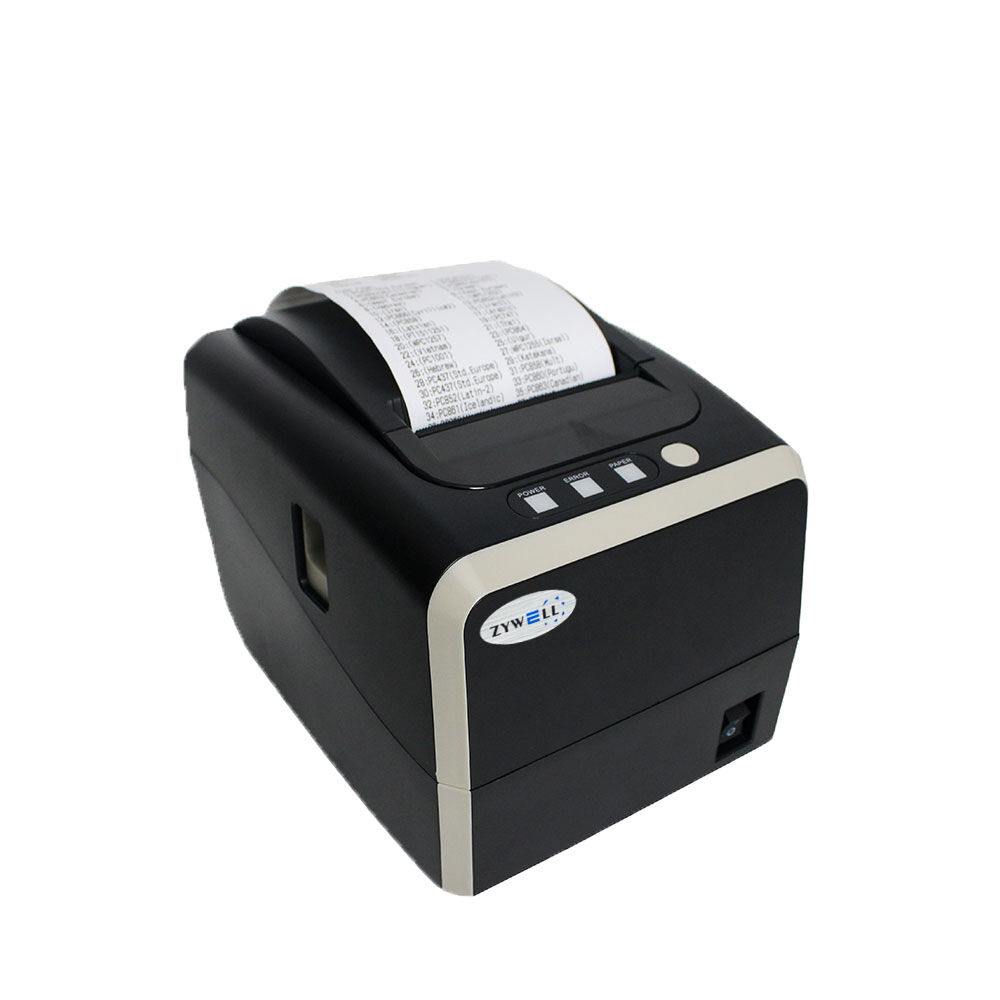

The Zy-3311 is ZYWELL's paperless thermal printer, offering 576 dpi resolution and a maximum print width of 80mm. It supports fast printing speeds up to 152mm/s and is equipped with a durable 50KM print head and 1.0 million cuts lifespan. The printer is compatible with various paper sizes (40mm, 58mm, 80mm) and offers flexible connectivity options, including USB, WiFi, and Bluetooth. With its compact design and compatibility with Windows, Linux, and Mac, the ZY-3311 is used in the Take-away Label, Office Label, Storage Label, and Food Label industries.
| Model | Zy-331 |
| Print Method | Direct Thermal |
| Resolution | 576 dots/line |
| Printing Width | 80mm(MAX)/72mm(default) |
| Paper separator (option) | 56mm/58mm/80mm |
| Memory | Input buffer: 2M; NV Flash: 4M |
| Interface | U+S+U/L+S+L+BT/U+S+L+BT |

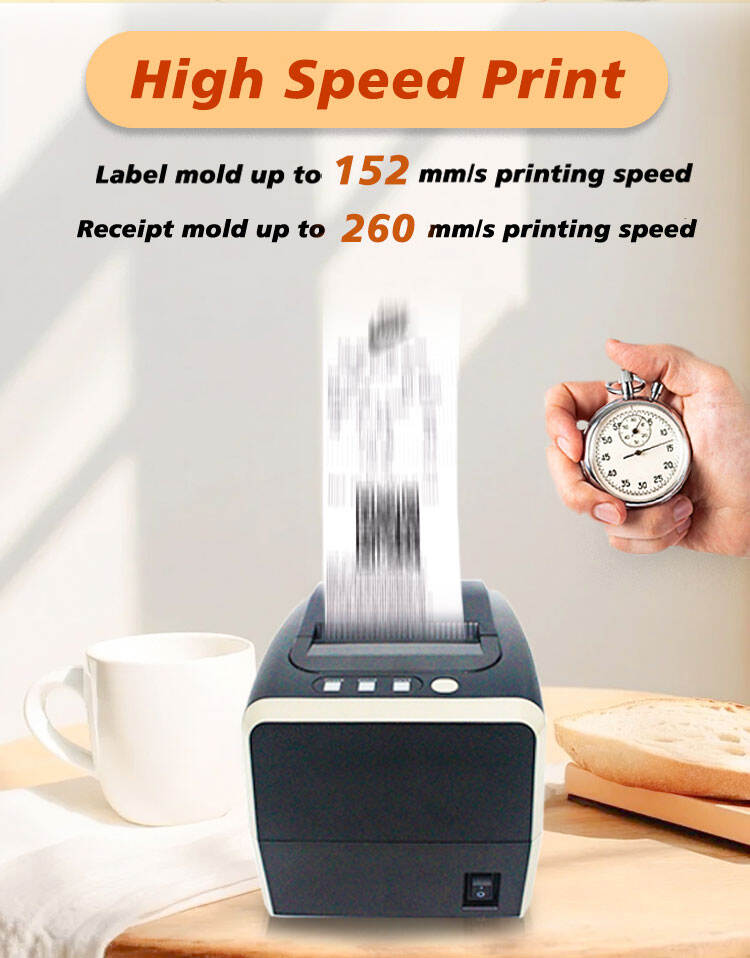

| Print Speed | Max 152mm/s |
| Fonts | |
| Font A | 12x24 |
| Font B | 9x17 |
| Chinese | GB18030, BIG5 24x24dots |
| Japanese/Korea | Optional |
| User-defined | Support |
| Barcode | |
| 1D | UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)/CODE39/ITF/CODABAR/CODE93/CODE128 |
| 2D | QR code, PDF417, Data Matrix |
| Detection | |
| Sensors | Paper out, cover open, cutter jam, paper jam and black mark detection |
| Power Supply | |
| Input | AC 100V-240V 50/60HZ |
| Output | DC 24V/2.5A |
| Paper | |
| Paper Type | Linerless Paper |
| Paper Width | Max.79.5±0.5mm/57.5±0.5mm |
| Paper Thickness | 0.06-0.10mm |
| Roll Dia | Max. Ø 80 mm |
| Paper Load | Easy paper loading |
| Paper Cut | Auto-cutter |
| Physical Characteristics | |
| Working Condition | 0℃-45℃, 10%-80%RH |
| Storage Condition | -10℃-60℃,10%-90%RH |
| Dimensions | 195(D)x151(W)x145(H)mm |
| Net weight | Net weight: 1.2kg; Gross weight: 1.8kg |
| Reliability | |

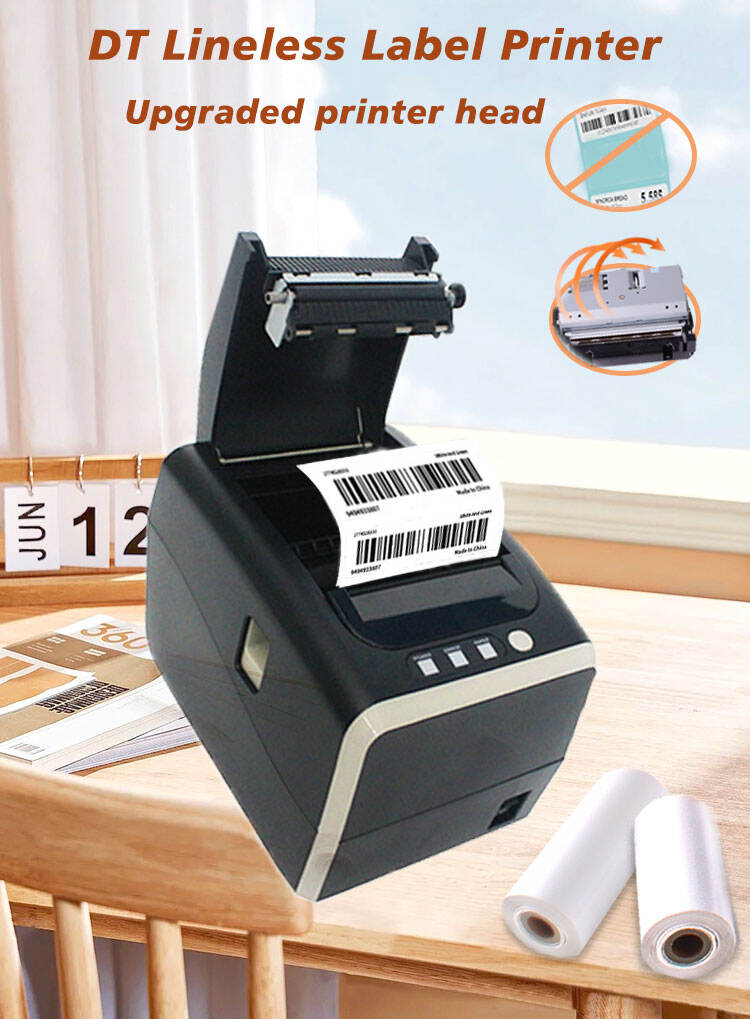

| Printing head | 50KM |

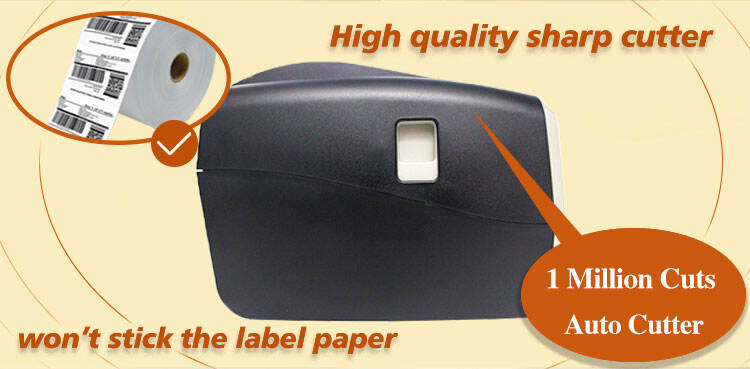

| Cutter | 1.0million |
| Accessories | |
| Accessories | Data cable, power adaptor, power cord, paper roll, CD, manual, roll, paper separator(option) |
| Packing | |
| Individual box | Dimension 286×164×160mm(L×W×H) 1unit/carton |
| Master carton | Dimension 615×370×535mm(L×W×H) 12unit/carton |
| OS | |

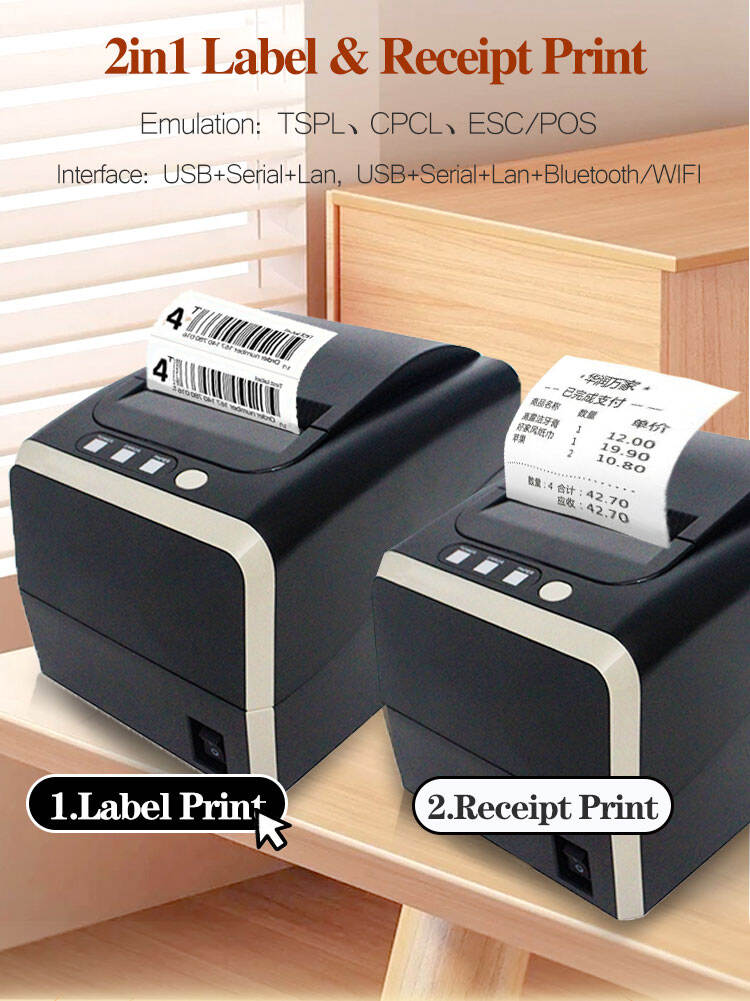

| Emulation | TSPL, CPCL, ESC/POS |
| Driver | Windows/Linux/Mac |
| SDK | Android/iOS/Windows |
