ZYWELL Zy-T812 Wholesale Receipt Printer

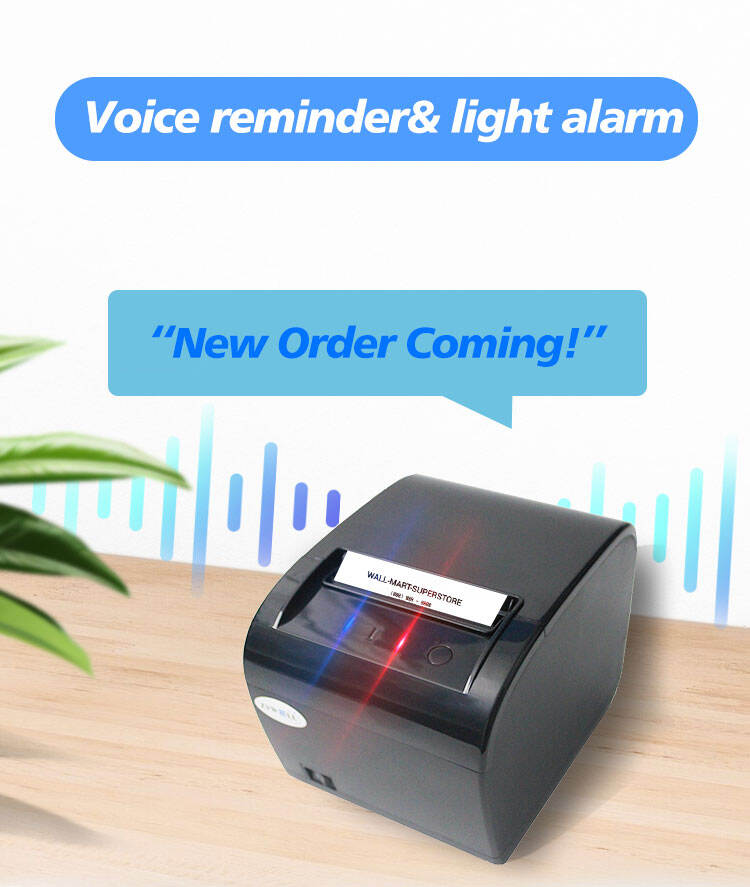

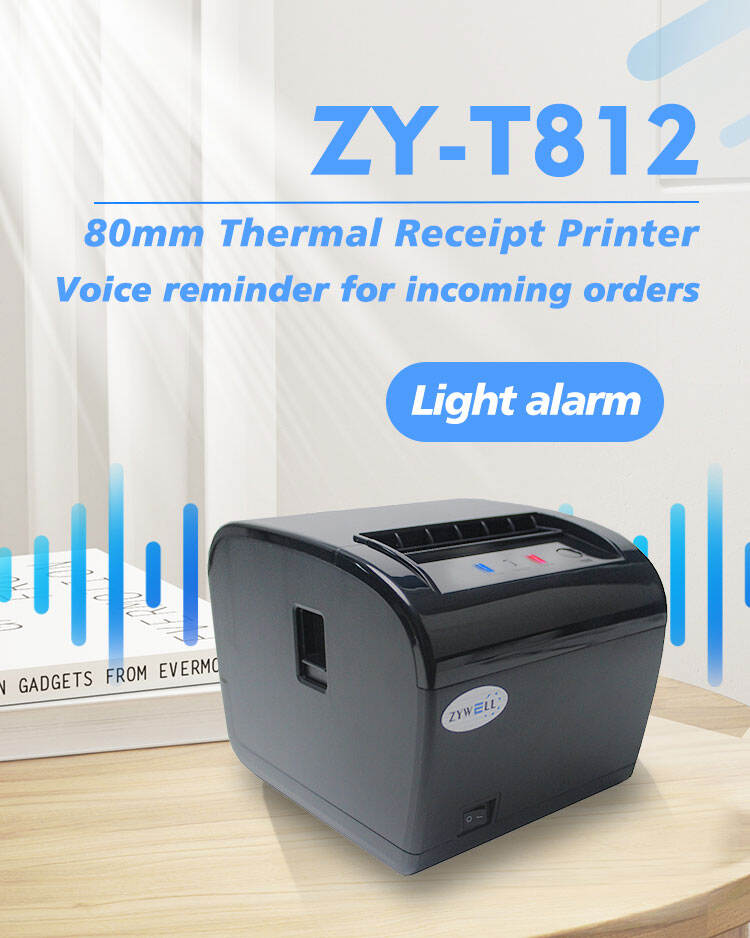

Configurable Alert System: Offers optional voice notification and synchronized sound/light alarm modules. These add-ons provide audible and visual cues for order arrivals, suitable for busy or high-noise environments.

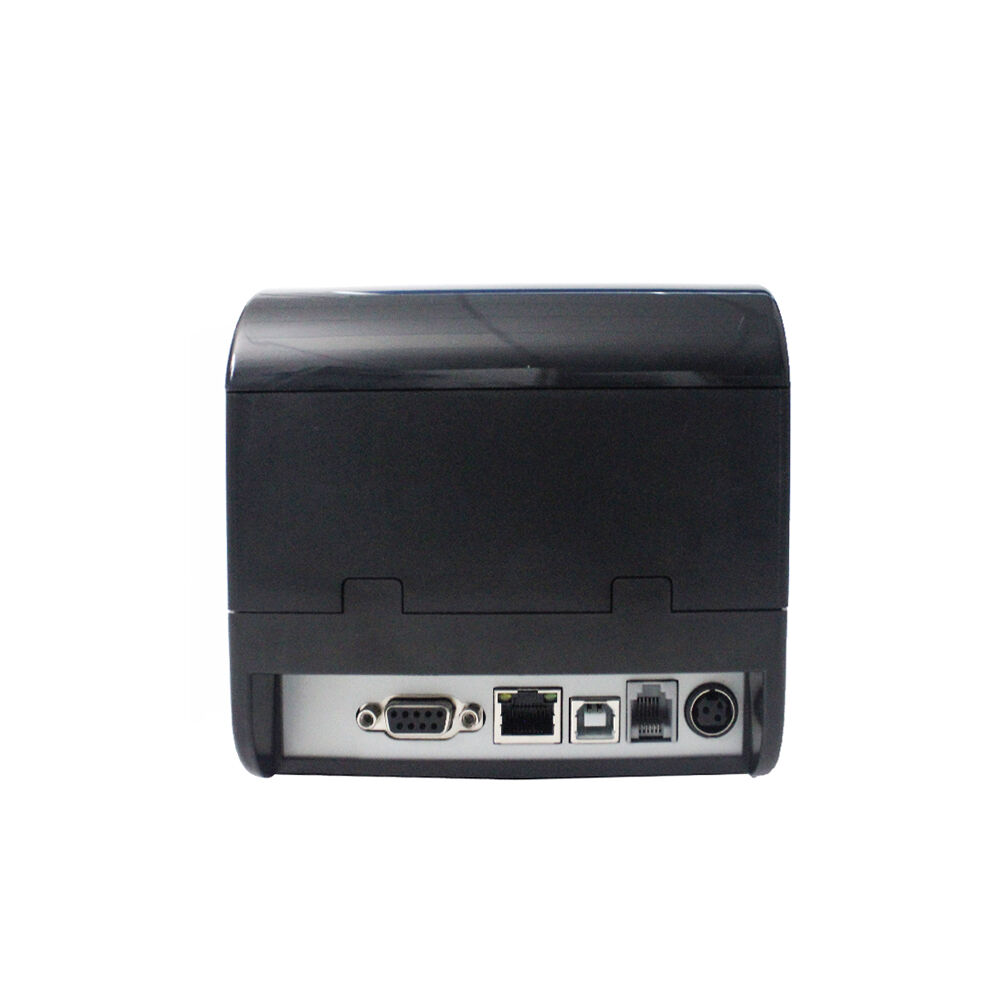

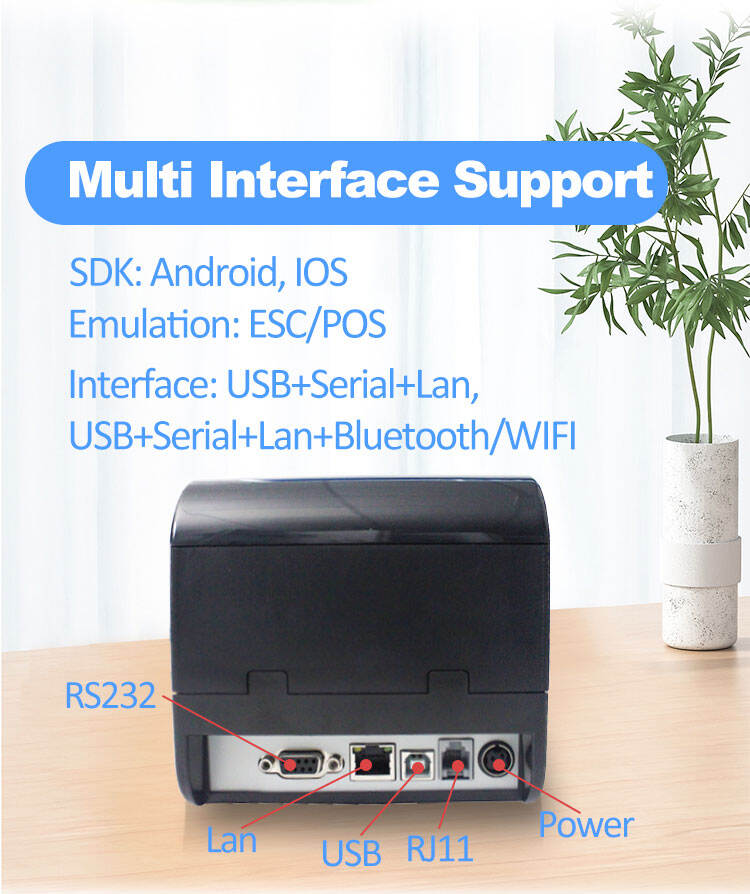

Hybrid Connectivity Interface: Supports a wide range of hardware connections, including USB, Ethernet, Serial, Bluetooth, and Wi-Fi. This multi-interface design allows the printer to adapt to both traditional wired infrastructures and modern wireless mobile-POS systems.

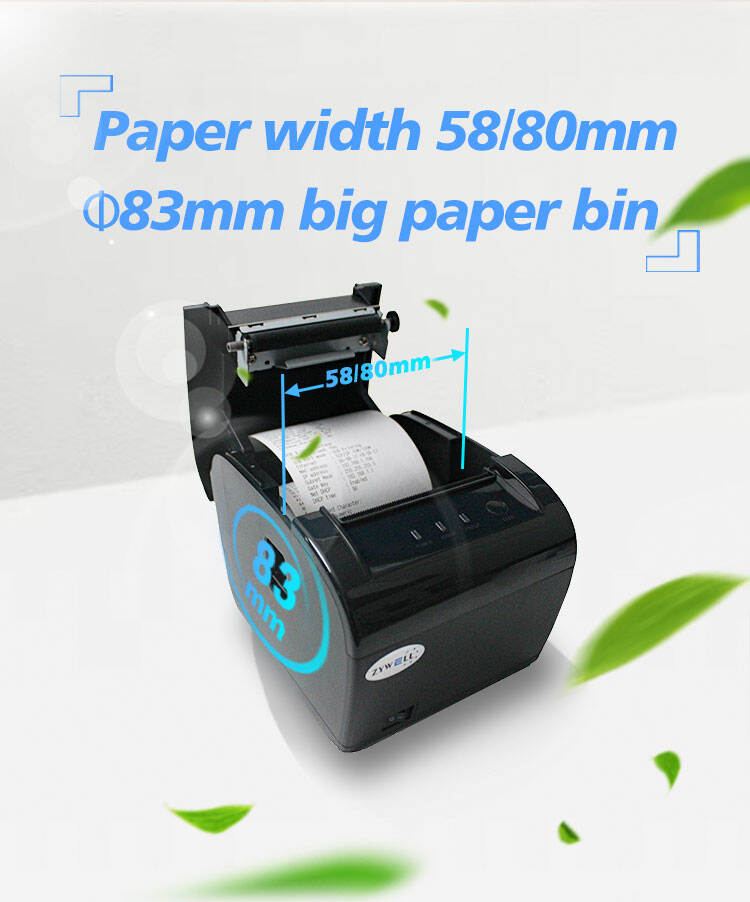

Dual-Width Media Support: Compatible with both 58mm and 80mm thermal paper. The adjustable paper path accommodates different receipt formats based on specific business requirements.
Multi-Format Data Processing: Capable of rendering QR codes, plain text, and high-resolution graphics. The internal controller ensures clear output for digital payment codes and branded logos on every receipt.
- Overview
- Parameter
- Product Details
- Recommended Products
The Zy-T812 is designed to function as a versatile terminal in high-volume distribution and retail settings. With a multi-interface suite supporting USB, Ethernet, Serial, Bluetooth, and Wi-Fi, it integrates into existing wired local area networks or modern mobile-POS configurations without requiring infrastructure changes. This connectivity allows the unit to receive and process QR codes, text, and graphics from multiple hardware sources simultaneously.
In operational environments where noise levels vary, the Zy-T812 provides sensory feedback through optional voice modules and sound-and-light alarms, ensuring that order arrivals are acknowledged in both kitchen and front-of-house settings.
| Item | Specification |
|---|---|
| Model | Zy-T812 |
| Print Method | Direct Thermal |
| Resolution | 576 dots/line |
| Printing Width | 80mm(max)/72mm(default) |
| Paper separator (option) | 48mm/52mm/56mm/64mm/68mm/76mm/80mm |
| Input buffer | 256k bytes |
| NV Flash | 256k bytes |
| Interface (Without Voice) | U+L/U+S+L/U+BT/U+W |
| Interface (With Voice) | U+S+L+BT/U+S+L+W |

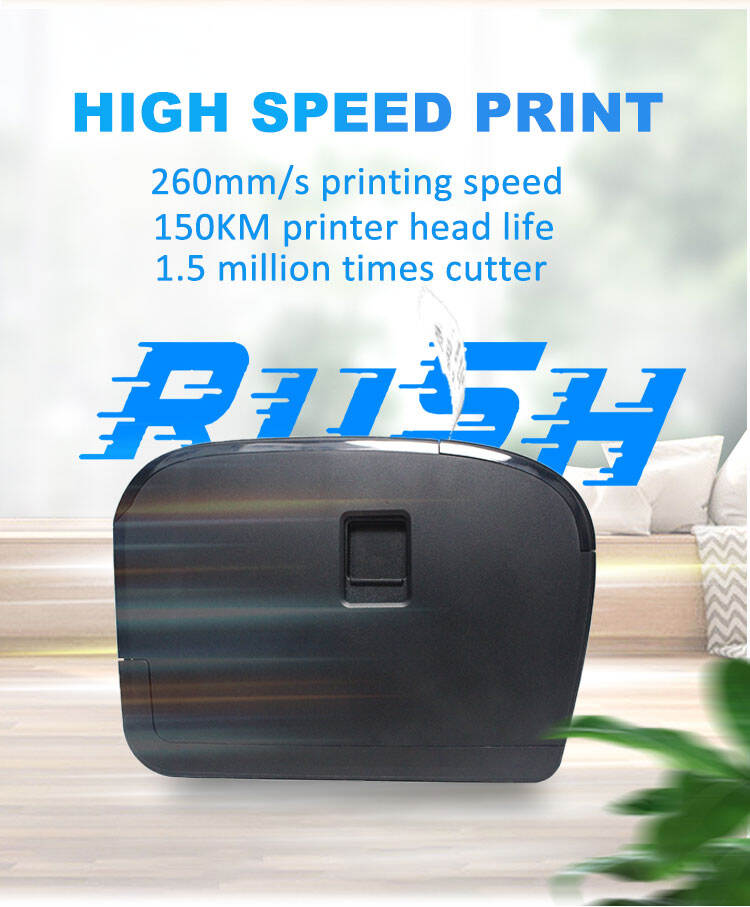

| Print Speed | 260mm/s(MAX) |
| Fonts | |
| Font A | 12×24 |
| Font B | 9×17 |
| Chinese | GB18030, BIG5 24×24dots |
| Japanese/Korea | Optional |
| User-defined | Support |
| Barcode | |
| 1D | UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)/CODE39/ITF/CODABAR/CODE93/CODE128 |
| 2D | QR code |
| Detection | |
| Sensors | Print head temperature detection, paper presence detection, lid detection, paper jam detection, sound and light alarm(option) |
| Function(option) | With voice function, sound and light alarm function |
| Power Supply | |
| Input | AC 100V-240V 50/60HZ |
| Output | DC 24V/2.5A |
| Paper | |
| Paper Type | Thermal Receipt Paper |
| Paper Width | Max.79.5±0.5mm |
| Paper Thickness | 0.06~0.08mm |
| Roll Dia | Max. Ø 83 mm |
| Paper Load | Easy paper loading |
| Paper Cut | Auto-cutter |
| Physical Characteristics | |
| Working Condition | 0°C~45°C, 10%~80%RH |
| Storage Condition | -10°C~60°C,10%~90%RH |
| Dimensions | 165(D)×128(W)×115(H)mm |
| Net weight | Net weight: 0.85kg, Gross weight: 1.6kg |
| Reliability | |
| Printing head | 150KM |
| Cutter | 1.5million |
| Accessories | Data cable, Power adaptor, Power cord, Paper roll, CD, Manual, Roller, Paper separator(option) |
| Packing | |
| Individual box | Dimension 246×165×150mm(L×W×H) 1unit/carton |
| Master carton | Dimension 520×370×505mm(L×W×H)12unit/carton |
| OS | |
| Emulation | ESC/POS |
| Driver | Windows/Linux/Mac |
| SDK | Android/iOS/Windows |
