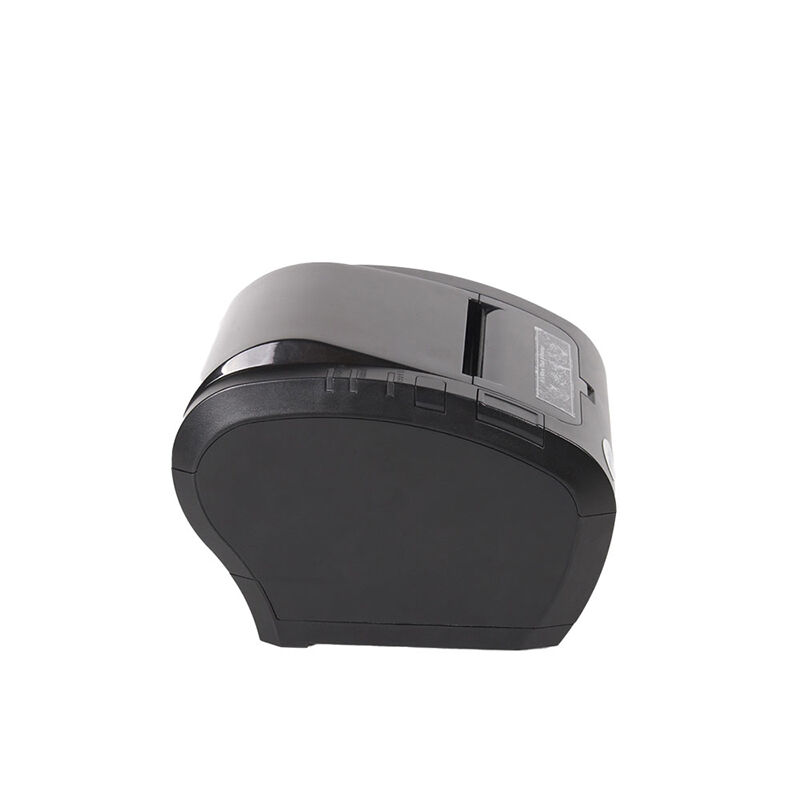

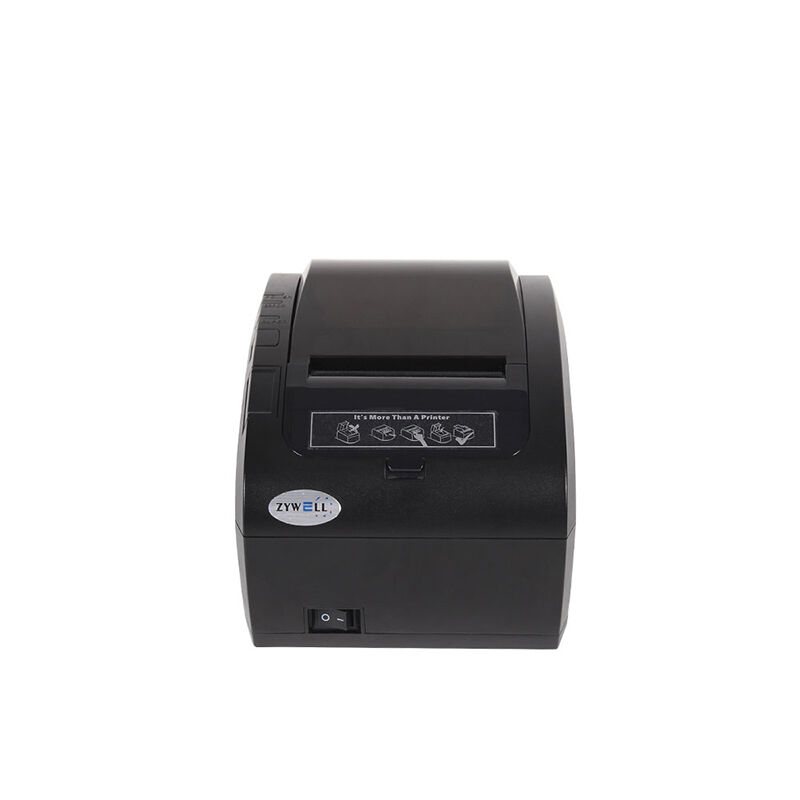

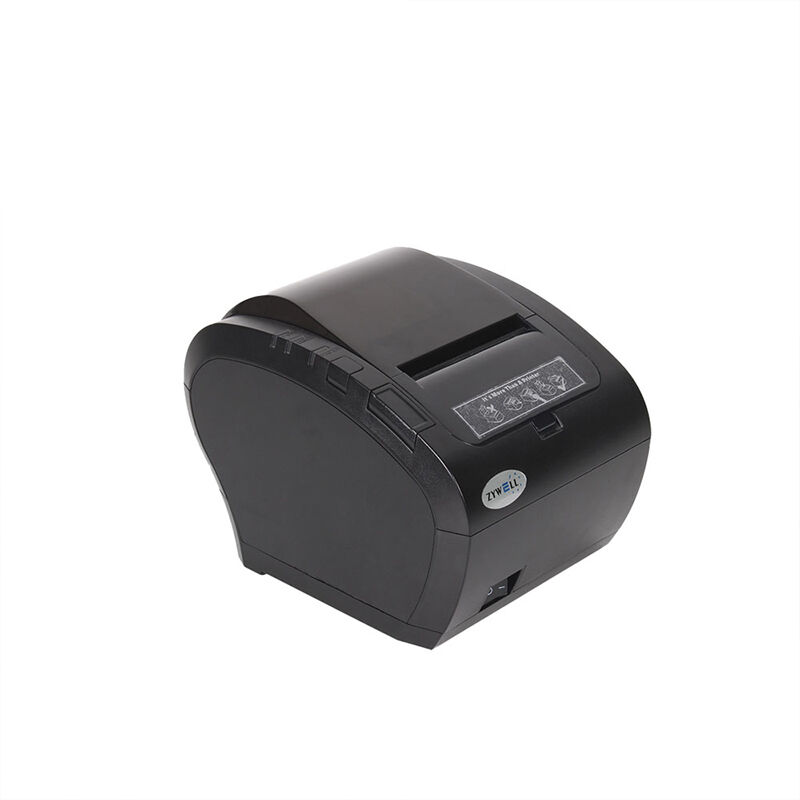

ZYWELL Zy301 Ticket Thermal Printer
Text and Image Processing: Designed for high-speed output of high-resolution text and graphics, ensuring smooth transaction flow.
Auto-Cutter: Features an integrated cutter tested for up to 1.5 million cuts, providing long-term reliability for high-volume ticket environments.
Configurable Utilities: Includes user-friendly software tools for Virtual USB and USB HID settings, simplifying integration with diverse POS systems.
Multi-Width Media Support: Supports eight different paper widths (optional), offering the flexibility to handle various ticketing and receipt formats within a single device.
Space-Saving Deployment: Includes a built-in wall-mount function, allowing for flexible installation in space-constrained or high-traffic areas.
- Overview
- Parameter
- Product Details
- Recommended Products
The ZYWELL Zy301 is a high-durability thermal printer engineered for high-traffic environments such as cinema ticketing, self-service kiosks, and busy retail counters. Featuring an auto-cutter tested for 1.5 million cuts and a high-speed output for text and graphics, it ensures a smooth customer experience in fast-paced service settings. Its wall-mount design and support for eight different paper widths (optional) make it adaptable to diverse layouts, from compact food truck windows to large-scale queue management systems.
ZYWELL provides full OEM and ODM services to help you deploy branded hardware across your network. We offer custom logo placement, specialized firmware development, and hardware modifications to meet specific industry standards or project requirements.
| Item | Specification |
|---|---|
| Model | Zy 301 |
| Print Method | Direct Thermal |
| Resolution | 576 dots/line |

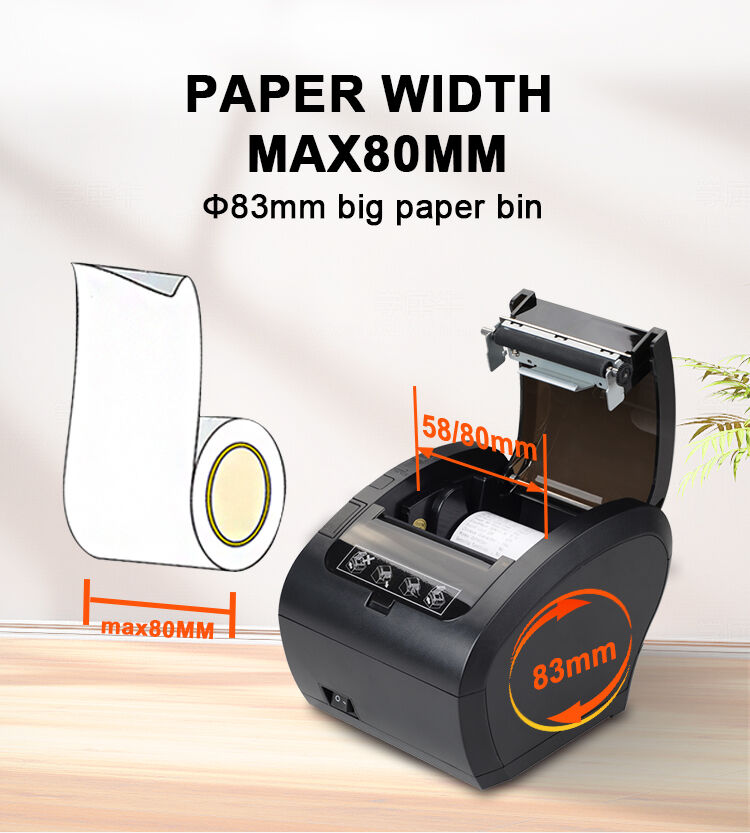

| Printing Width | 80mm(max)/72mm(default) |
| Paper separator (option) | 48mm/52mm/56mm/64mm/68mm/76mm/80mm |
| Memory | Input buffer 4MB, NV Flash 256k bytes |

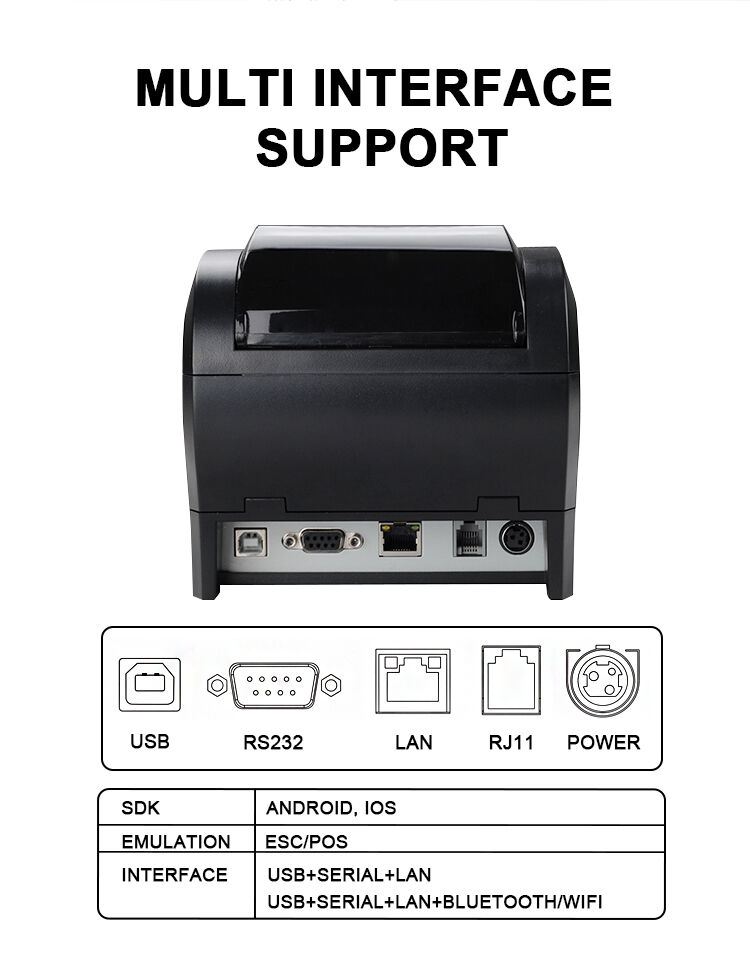

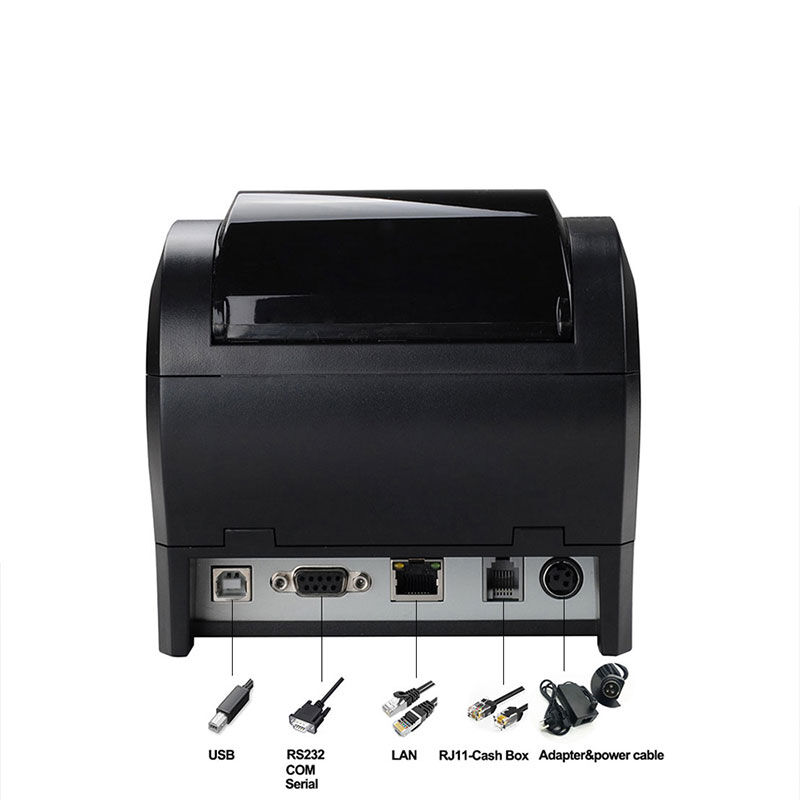

| Interface | U+S+L/U+S+L+BT/U+S+L+W |
| Print Speed | 260mm/s (MAX) |
| Fonts | |
| Font A | 12×24 |
| Font B | 9×17 |
| Chinese | GB18030, BIG5 24×24dots |
| Japanese/Korean | Optional |
| User-defined | Support |
| Barcode | |
| 1D | UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)/CODE39/ITF/CODABAR/CODE93/CODE128 |
| 2D | QR code, PDF417 |
| Detection | |
| Sensors | Paper shortage, cover open, over heat, cutter stuck |
| Power Supply | |
| Input | AC 100V-240V 50/60HZ |
| Output | DC 24V/2.5A |
| Paper | |
| Paper Type | Thermal Receipt Paper |
| Paper Width | Max.79.5±0.5mm |
| Paper Thickness | 0.06~0.08mm |
| Roll Dia | Max. Ø 82 mm |
| Paper Load | Easy paper loading |
| Paper Cut | Auto-cutter |
| Physical Characteristics | |
| Working Condition | 0°C~45°C, 10%~80%RH |
| Storage Condition | -10°C~60°C, 10%~90%RH |
| Dimensions | 191(D)×145(W)×141.5(H)mm |
| Net weight | Net weight: 1.0kg, Gross weight: 1.8kg |
| Reliability | |
| Printing head | 150KM |
| Cutter | 2.0 million |
| Accessories | Data cable, Power adaptor, Power cord, Paper roll, CD, Manual, Roller, Paper separator(option) |
| Packing | |
| Individual box | Dimension 266×164×160mm(L×W×H) 1unit/carton |
| Master carton | Dimension 575×370×535mm(L×W×H) 12unit/carton |
| OS | |
| Emulation | ESC/POS |
| Driver | Windows/Linux/Mac |
| SDK | Android/IOS/Windows |
