ZYWELL Zy-Q821 80mm Bluetooth Thermal Receipt Printer
- Wireless Integration: Equipped with Bluetooth connectivity for mobile and desktop printing.
- Multi-Platform Support: Fully compatible with Windows, Android, and iOS operating systems.
- Standardized Commands: Supports the industry-standard ESC/POS command set for seamless software integration.
- Extended Service Life: Features a high-durability print head rated for up to 100KM of printing.
- Automated Cutting: Includes auto-cutter support with flexibility for different paper widths (80mm and 58mm configurations).
- Compact Footprint: Space-saving structure optimized for desktop use in limited workspaces.

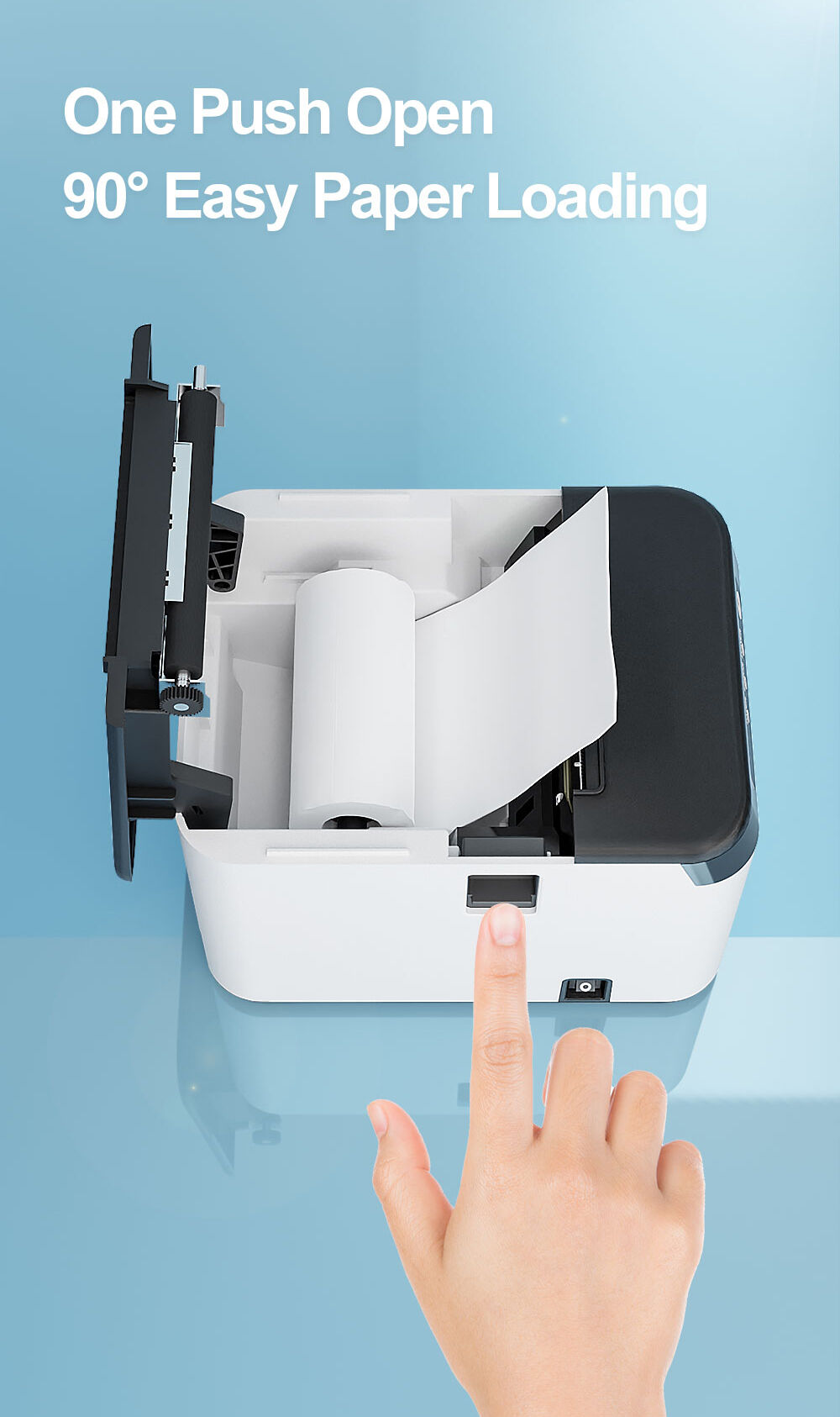

- Simplified Maintenance: Easy paper-loading mechanism to reduce downtime and improve operational efficiency.
- Overview
- Parameter
- Product Details
- Recommended Products
For businesses in hospitality, retail, and healthcare, a printer is more than just hardware—it is a critical link in the operational workflow. The ZY-Q821 was engineered specifically to balance the demands of space optimization with the necessity for high-volume output.
The core value of this model lies in its adaptability to complex service environments. With a print speed of up to 200mm/s, it effectively minimizes checkout bottlenecks during peak hours, ensuring a smooth customer experience. Recognizing the diverse layouts of modern service counters, the ZY-Q821 supports both desktop placement and wall-mounting, a feature essential for cramped restaurant kitchens or compact retail kiosks.
From a reliability standpoint, we have prioritized durability to reduce long-term maintenance costs. By integrating a print head rated for 100km and an auto-cutter tested for 1 million cycles, the ZY-Q821 minimizes the risk of downtime during critical hours. Furthermore, the machine’s ability to switch between 58mm and 80mm paper rolls, combined with Bluetooth connectivity, offers the flexibility needed for mobile POS setups or traditional wired systems. For operators who value stability, the ZY-Q821 provides a transparent, low-maintenance, and fully functional backend assurance.
| Model | ZY-Q821 |
| Print Method | Direct Thermal |
| Resolution | 576 dots/line |
| Printing Width | 80mm (80mm/72(default)) |
| Paper separator | 58mm/80mm |
| Input buffer | 128k bytes |
| NV Flash | 256k bytes |
| Interface | USB/USB+LAN |

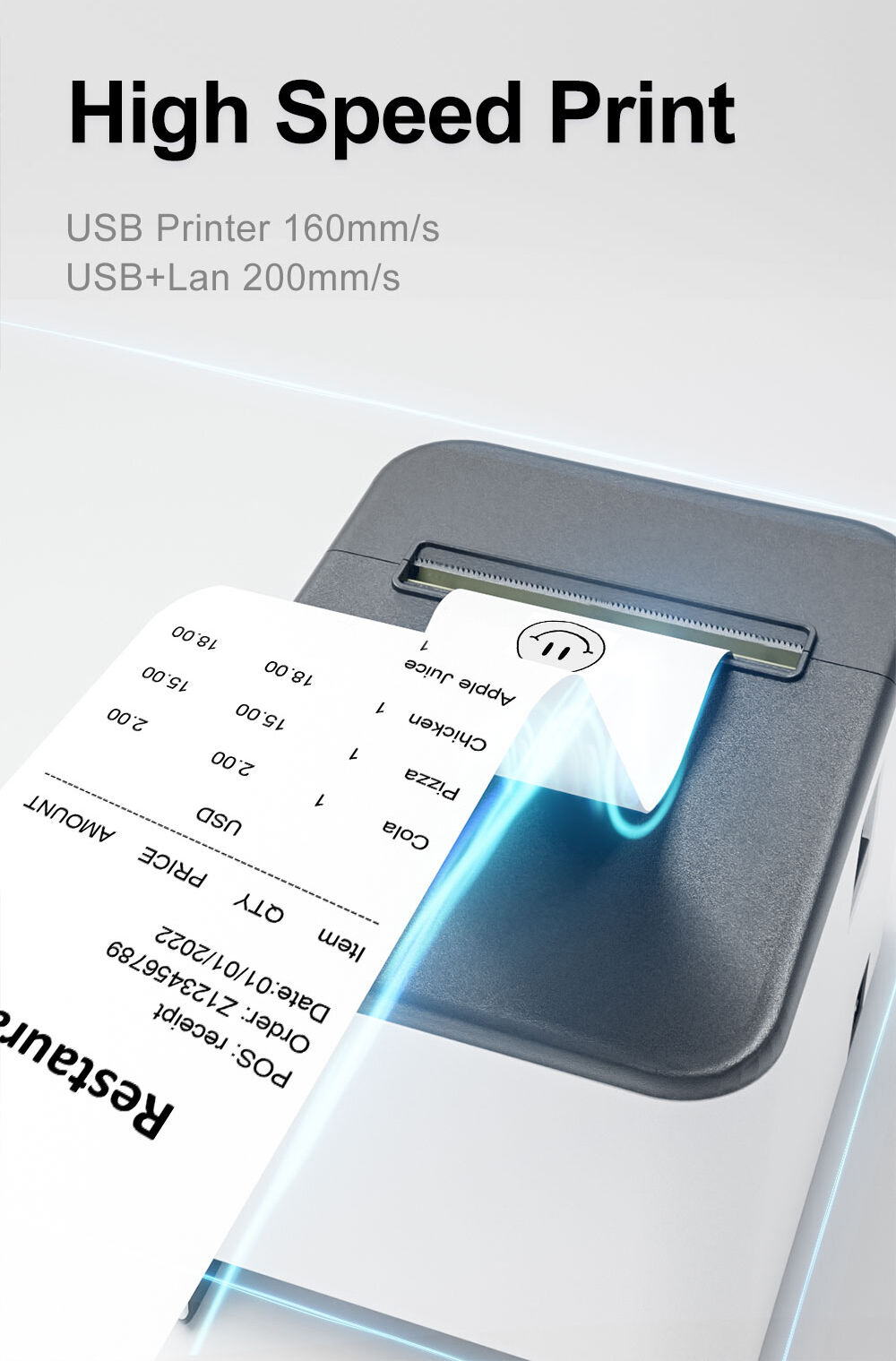

| Print Speed | 200mm/s(MAX) |
| Fonts | |
| Font A | 12x24 |
| Font B | 9x17 |
| Chinese | GB18030, BIG5 24x24dots |
| Japanese/Korea | Optional |
| User-defined | Support |
| Barcode | |
| 1D | UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)/CODE39/ITF/CODABAR/CODE93/CODE128 |
| 2D | QR code |
| Detection | |
| Sensors | Paper out, cover open, cutter jam, paper jam and black mark detection |
| Power Supply | |
| Input | AC 100V-240V 50/60HZ |
| Output | DC 24V/1.25A |
| Paper | |
| Paper Type | Thermal Receipt Paper |
| Paper Width | Max.57.5±0.5mm or79.5±0.5mm |
| Paper Thickness | 0.06-0.08mm |
| Roll Dia | Max. Ø 83 mm |
| Paper Load | Easy paper loading |
| Paper Cut | Auto-cutter |
| Physical Characteristics | |
| Working Condition | 0℃-45℃, 10%-80%RH |
| Storage Condition | -10℃-60℃,10%-90%RH |
| Dimensions | 173(D)x128(W)x127(H)mm |
| Net weight | Net weight: 0.8kg; Gross weight: 1.45kg |
| Reliability | |

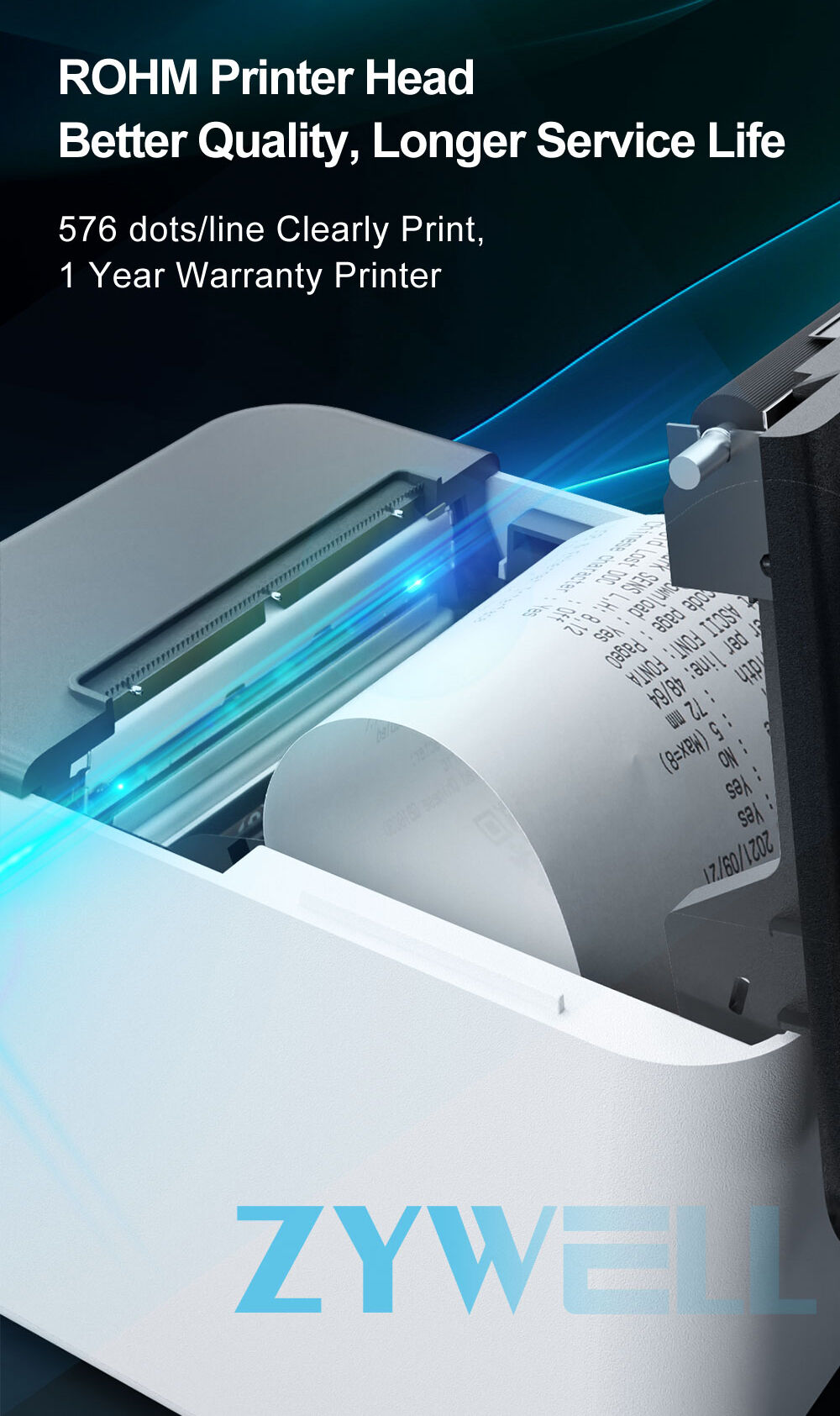

| Printing head | 100KM |
| Cutter | 1.0million |
| Accessories | |
| Accessories | Data cable, power adaptor, power cord, paper roll, manual, roll(option), paper separator(option) |
| Packing | |
| Individual box | Dimension 250×140×145mm(L×W×H) 1unit/carton |
| Master carton | Dimension 540×320×485mm(L×W×H) 12unit/carton |
| OS | |
| Emulation | ESC/POS |
| Driver | Windows/Linux/Mac |
| SDK | Android/iOS/Windows |
