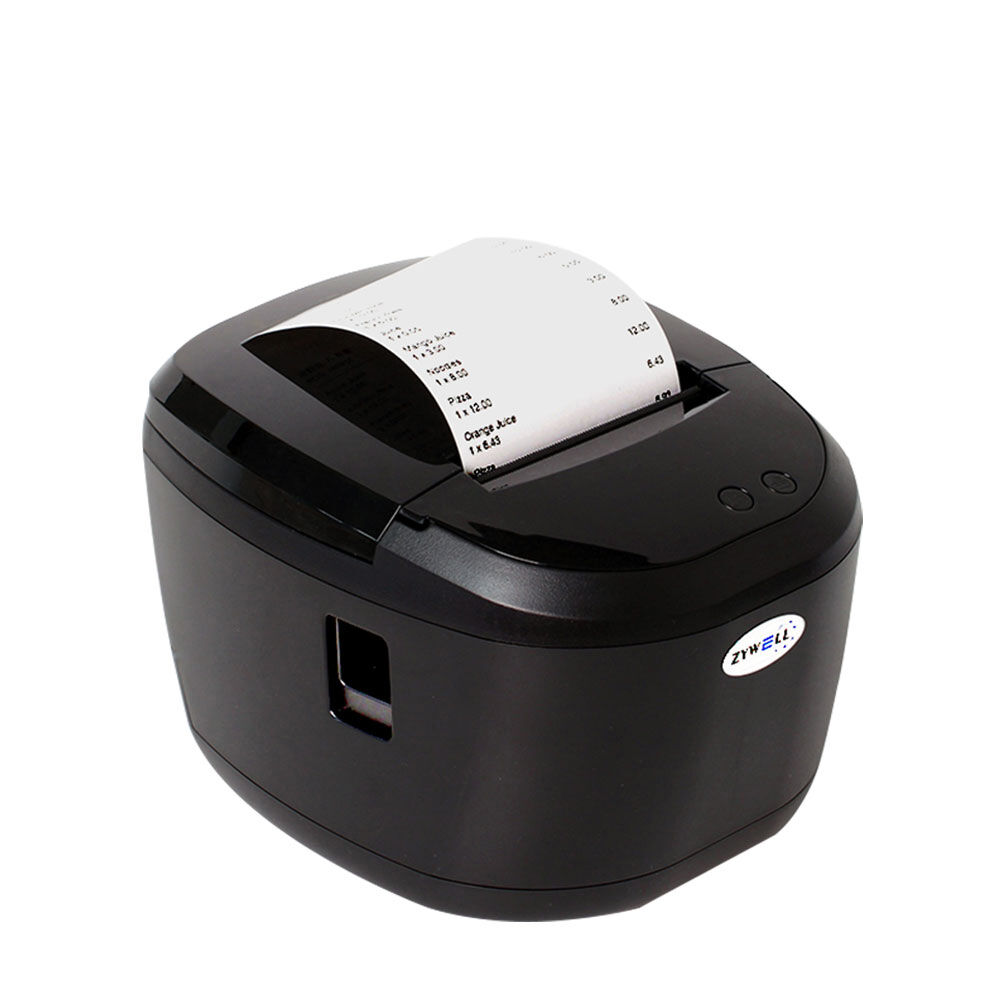

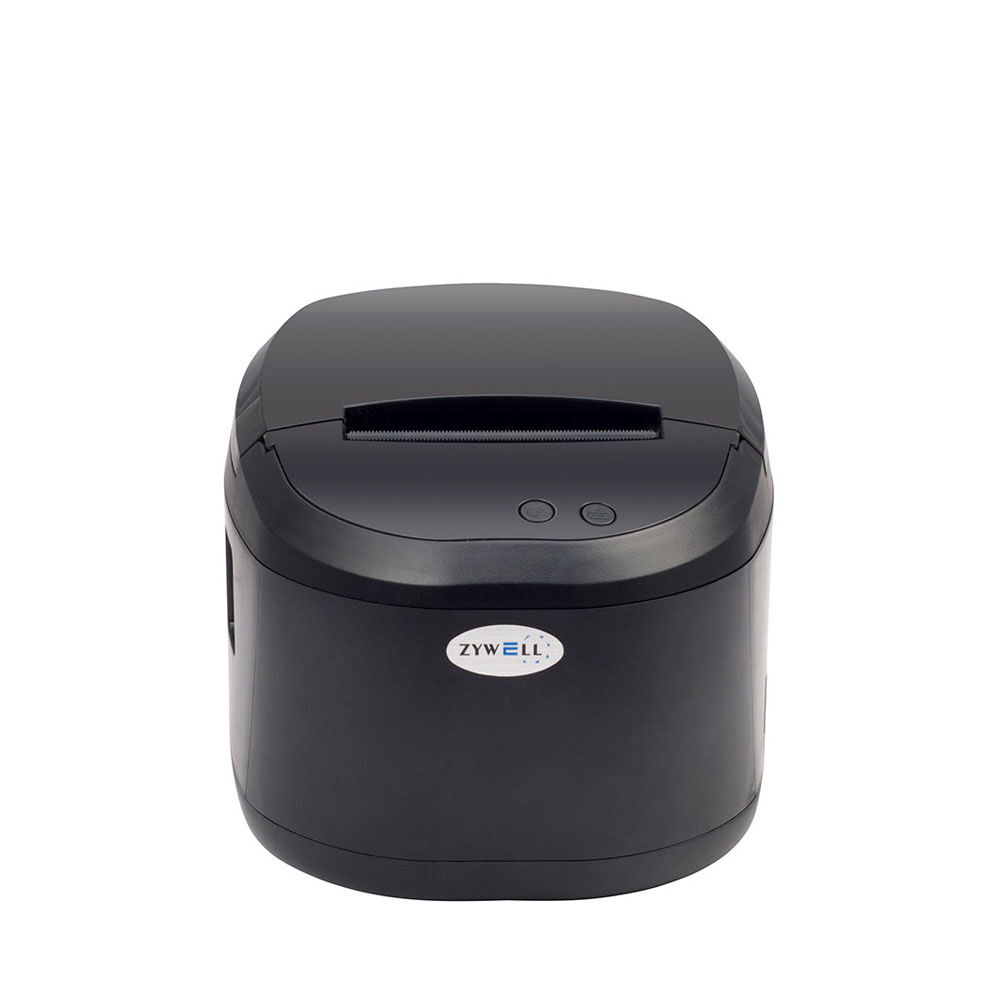

ZYWELL Zy308 Pos Receipt Printer
260mm/s Ultra-Fast Print Speed: Delivers high-volume receipts and orders instantly to reduce customer wait times and increase service efficiency.
Intelligent Knife Return System: Automatically resets the cutter to prevent jams, ensuring continuous operation and reducing manual maintenance.
Unique Design for High-End Sites: Features a professional, premium aesthetic specifically styled for luxury retail, fine dining, and boutique environments.
Built-in Reliability: Engineered for high-frequency use with a focus on hardware longevity and consistent print quality.
- Overview
- Parameter
- Product Details
- Recommended Products
The ZYWELL Zy308 is a premium 80mm POS printer designed to bridge the gap between high-speed performance and upscale aesthetics, ensuring that hardware never compromises the customer experience in luxury retail or fine-dining environments.
By combining an ultra-fast 260mm/s print speed with a specialized table-by-table order function, it eliminates service bottlenecks and kitchen confusion during peak hours. Its intelligent knife return system proactively prevents downtime by automatically resetting the cutter to avoid jams.
| Item | Specification |
|---|---|
| Model | Zy308 |
| Print Method | Direct Thermal |
| Resolution | 576 dots/line |
| Printing Width | 80mm (max)/72mm (default) |
| Paper separator (option) | 48mm/52mm/56mm/64mm/68mm/76mm/80mm |
| Memory | Input buffer 256k bytes, NV Flash 256k bytes |
| Interface | U/U+L/U+S+L/U+BT/U+W/U+S+L+BT/U+S+L+W |
| Internet Voice | |
| Print Speed | 260mm/s (MAX) |
| Fonts | |
| Font A | 12×24 |
| Font B | 9×17 |
| Chinese | GB18030, BIG5 24×24dots |
| Japanese/Korean | Optional |
| User-defined | Support |
| Barcode | |
| 1D | UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)/CODE39/ITF/CODABAR/CODE93/CODE128 |
| 2D | QR code |
| Detection | |
| Sensors | Paper shortage, cover open, over heat, cutter stuck |
| Power Supply | |
| Input | AC 100V-240V 50/60HZ |
| Output | DC 24V/2.5A |
| Paper | |
| Paper Type | Thermal Receipt Paper |
| Paper Width | Max.79.5±0.5mm |
| Paper Thickness | 0.06~0.08mm |
| Roll Dia | Max. Ø 83 mm |

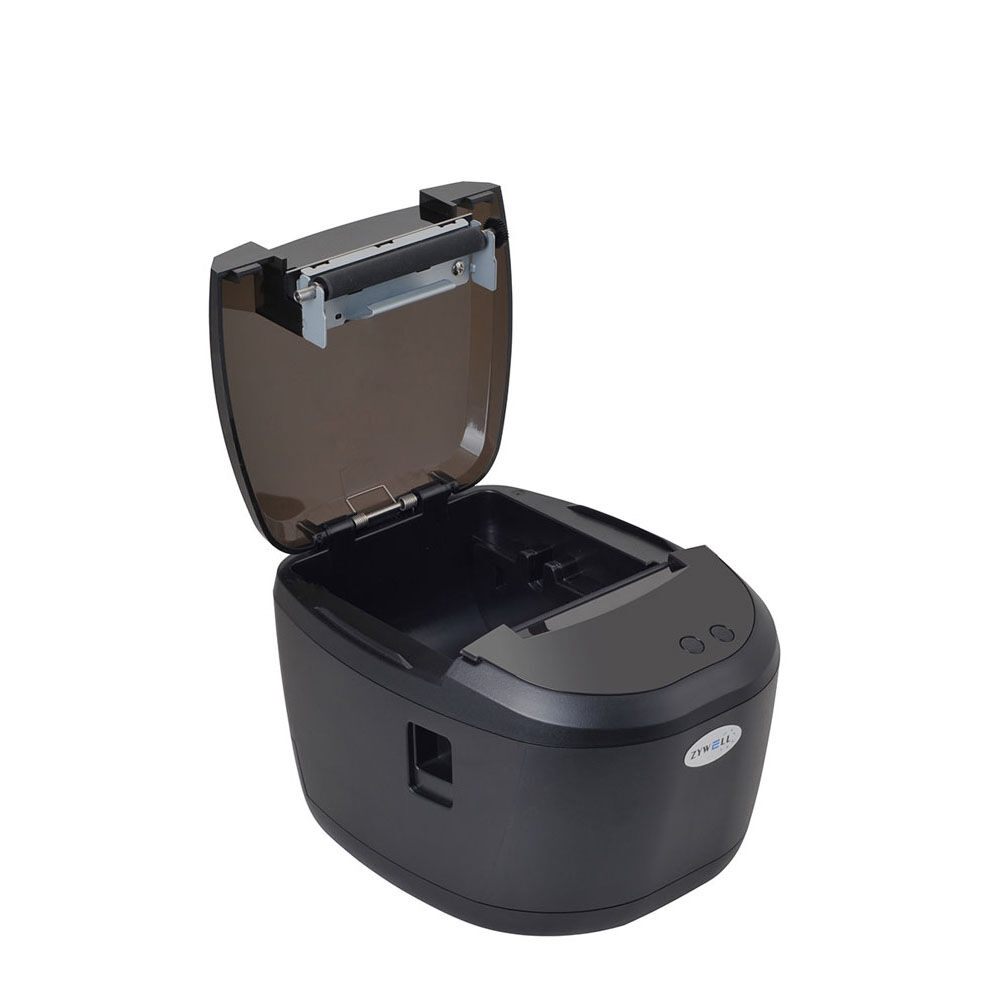

| Paper Load | Easy paper loading |
| Paper Cut | Auto-cutter |
| Physical Characteristics | |
| Working Condition | 0°C~45°C, 10%~80%RH |
| Storage Condition | -10°C~60°C, 10%~90%RH |
| Dimensions | 201.5(D)×154.5(W)×134(H)mm |
| Net weight | Net weight: 1.0kg, Gross weight: 1.8kg |
| Reliability | |
| Printing head | 150KM |
| Cutter | 1.5million |
| Accessories | Data cable, Power adaptor, Power cord, Paper roll, CD, Manual, Roller, Paper separator(option) |
| Packing | |
| Individual box | Dimension 286×164×160mm(L×W×H) 1unit/carton |
| Master carton | Dimension 615×370×535mm(L×W×H) 12unit/carton |
| OS | |
| Emulation | ESC/POS |
| Driver | Windows/Linux/Mac |
| SDK | Android/IOS/Windows |
