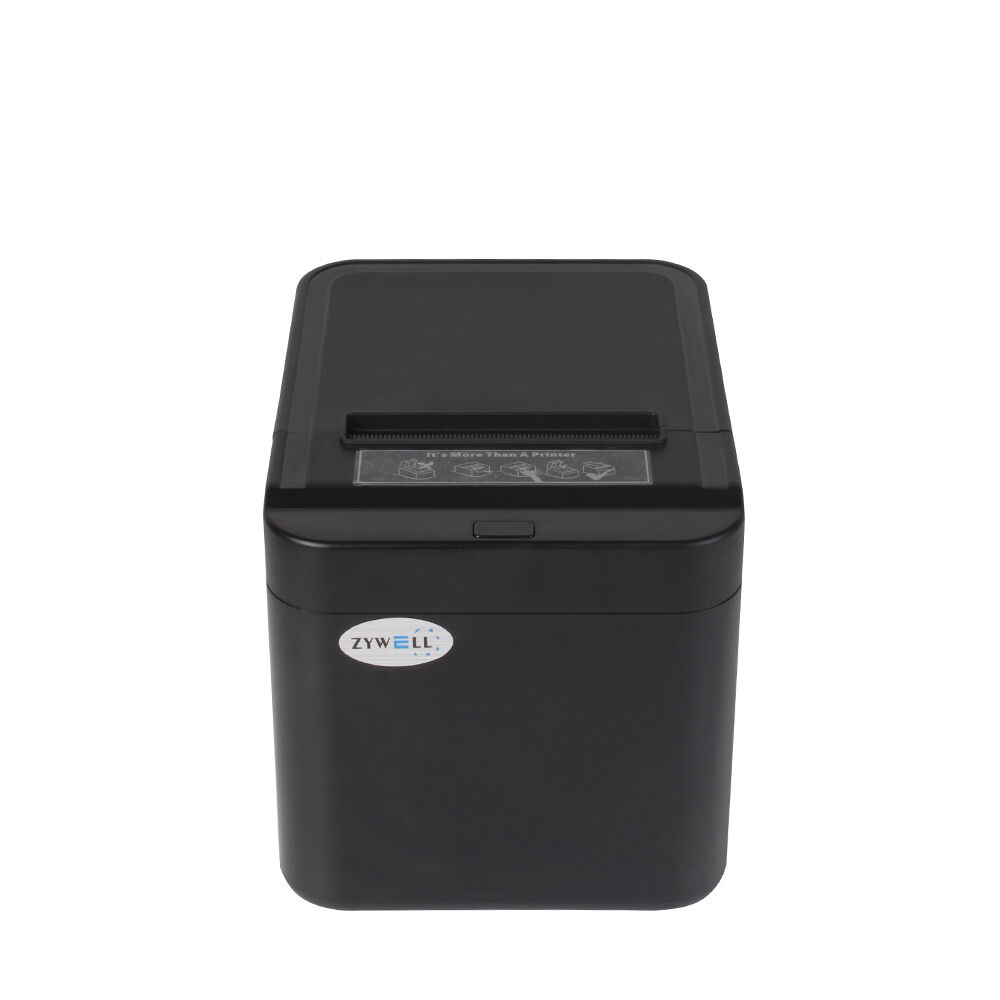

ZYWELL Zy-Q822 Desktop Thermal Receipt Printer

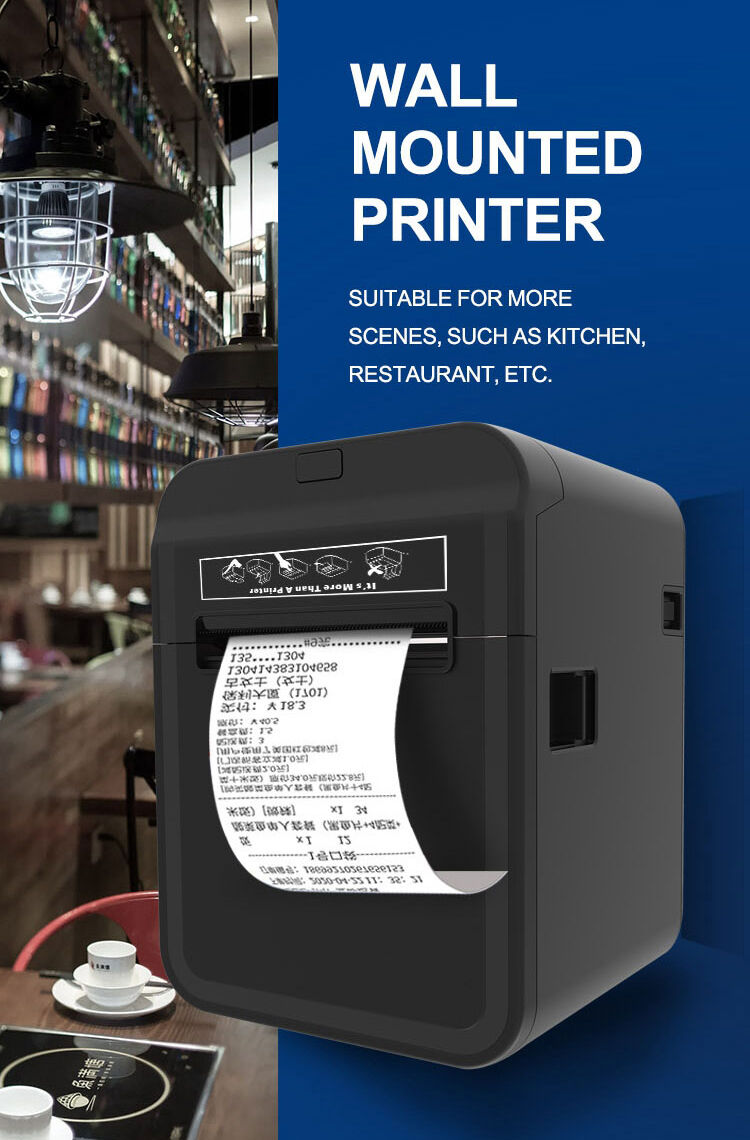

Versatile Mounting System: Features a hidden, integrated wall-mount design, allowing for flexible installation in space-constrained or high-traffic areas.
Comprehensive Character Support: Built-in GB18030 large font library ensures accurate multi-language rendering, with high-definition support for QR code and barcode printing.
Workflow Continuity: Equipped with an intelligent paper-shortage sensor and a power-failure recovery system that resumes printing automatically, preventing lost orders or transaction gaps.
Mobile Configuration: Simplifies network management by allowing users to modify IP addresses directly via mobile devices, eliminating the need for complex PC-side setups.
Stable Connectivity: Offers reliable data transmission through standard USB or USB+LAN interface configurations to suit both standalone and networked environments.
- Overview
- Parameter
- Product Details
- Recommended Products

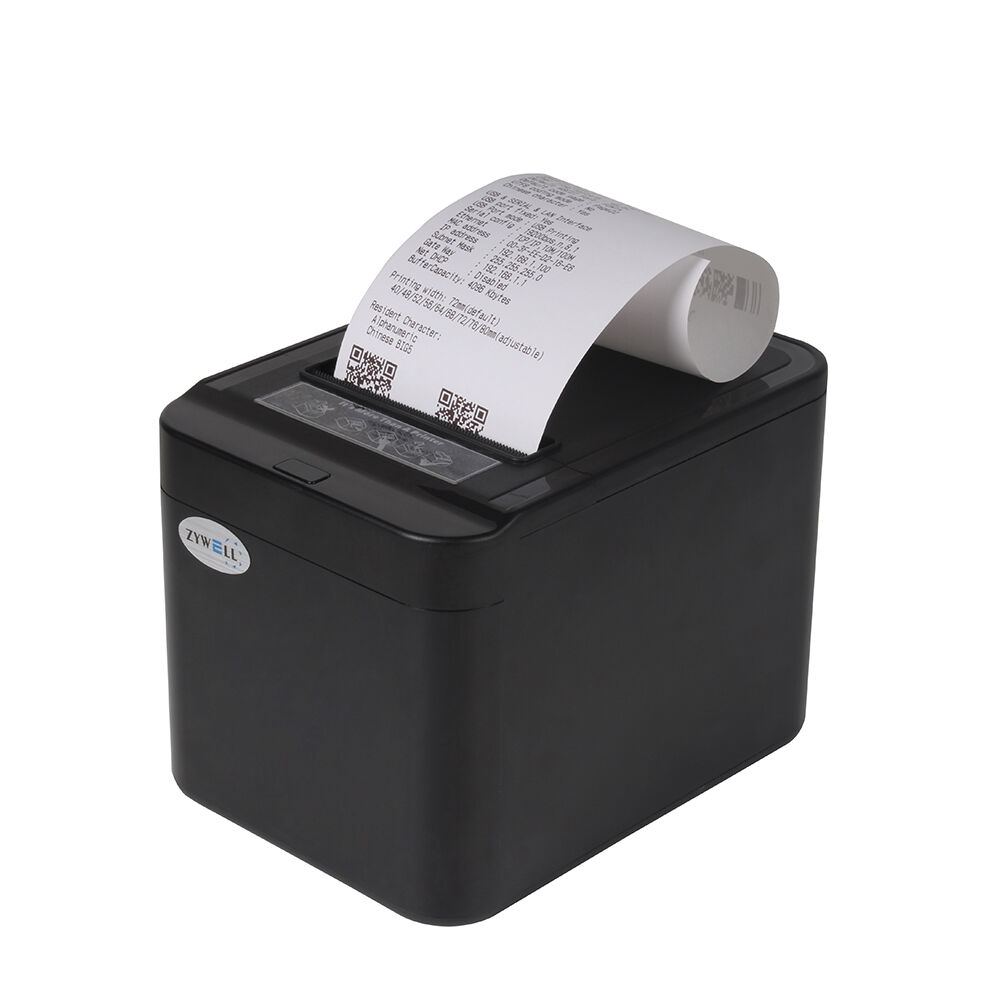

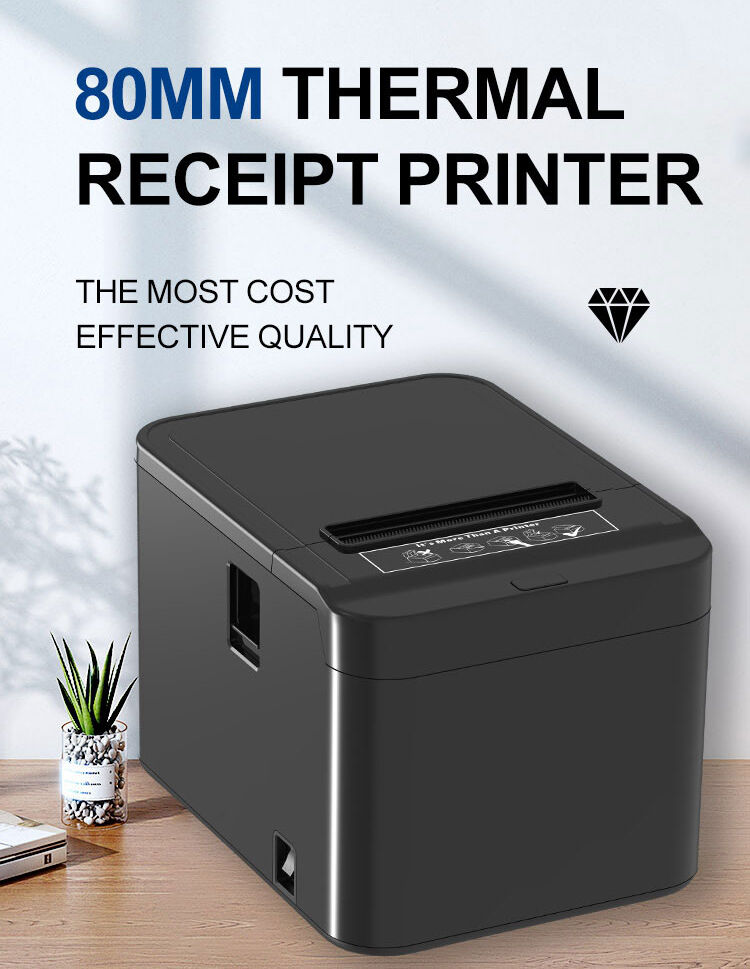

The Zy-Q822 is a versatile thermal printer engineered for space-saving efficiency and reliable transaction management. Featuring a unique hidden wall-mount design and a comprehensive GB18030 font library, it ensures professional-grade text and QR code clarity for diverse retail and hospitality environments. To maintain continuous workflow, the device includes an intelligent paper-shortage sensor and power-failure recovery, with the added convenience of mobile IP configuration via smartphone.
ZYWELL offers professional OEM and ODM services to help you scale your brand. From custom branding and logo placement to specialized firmware and hardware modifications, our engineering team provides end-to-end solutions tailored to your market needs.
Contact us today to discuss your project requirements or to request a competitive quote for bulk OEM/ODM orders.
| Item | Specification |
|---|---|
| Model | ZY-Q822 |
| Print Method | Direct Thermal |
| Resolution | 576 dots/line |
| Printing Width | 72mm (default) |
| Paper separator (option) | 58mm/80mm |
| Input buffer | 128k bytes |
| NV Flash | 256k bytes |
| Interface | USB/USB+LAN |
| Print Speed | 200mm/s (MAX) |
| Fonts | |
| Font A | 12×24 |
| Font B | 9×17 |
| Chinese | GB18030, BIG5 24×24dots |
| Japanese/Korean | Optional |
| User-defined | Support |
| Barcode | |
| 1D | UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)/CODE39/ITF/CODABAR/CODE93/CODE128 |
| 2D | QR code |
| Detection | |
| Sensors | Paper out, cover open, cutter jam, paper jam and black mark detection |
| Power Supply | |
| Input | AC 100V-240V 50/60HZ |
| Output | DC 24V/1.25A |
| Paper | |
| Paper Type | Thermal Receipt Paper |
| Paper Width | 57.5±0.5mm or 79.5±0.5mm |
| Paper Thickness | 0.06~0.08mm |
| Roll Dia | Max. Ø 83 mm |
| Paper Load | Easy paper loading |

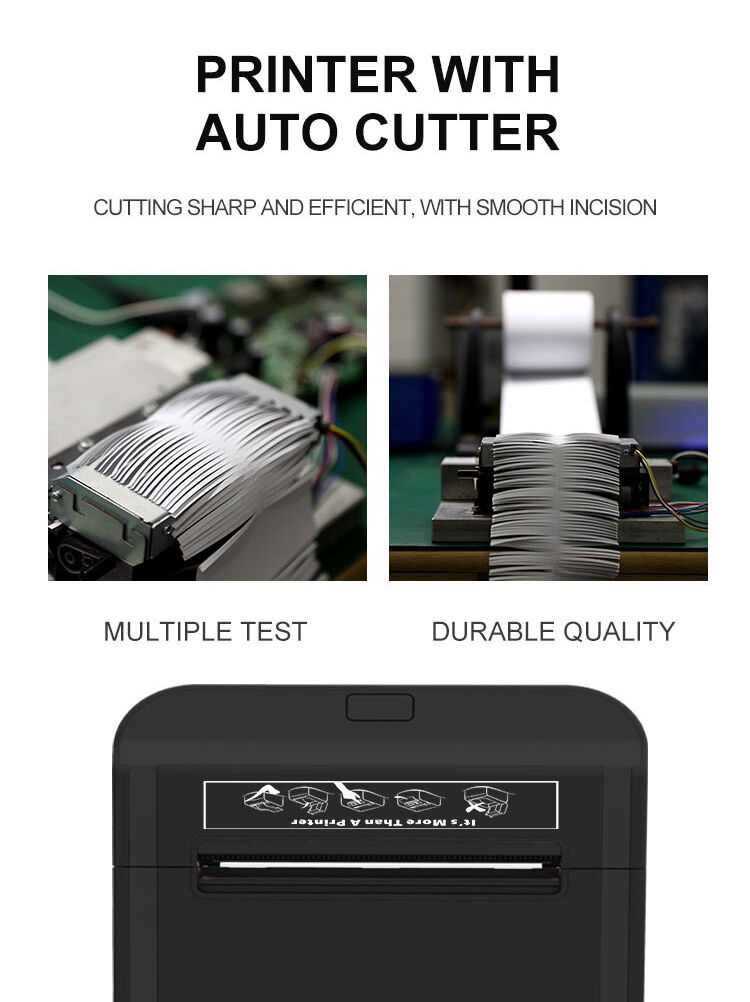

| Paper Cut | Auto-cutter |
| Physical Characteristics | |
| Working Condition | 0°C~45°C, 10%~80%RH |
| Storage Condition | -10°C~60°C, 10%~90%RH |
| Dimensions | 173(D)×128(W)×130(H)mm |
| Net weight | Net weight: 0.85kg, Gross weight: 1.4kg |
| Reliability | |
| Printing head | 100KM |
| Cutter | 1.0 million |

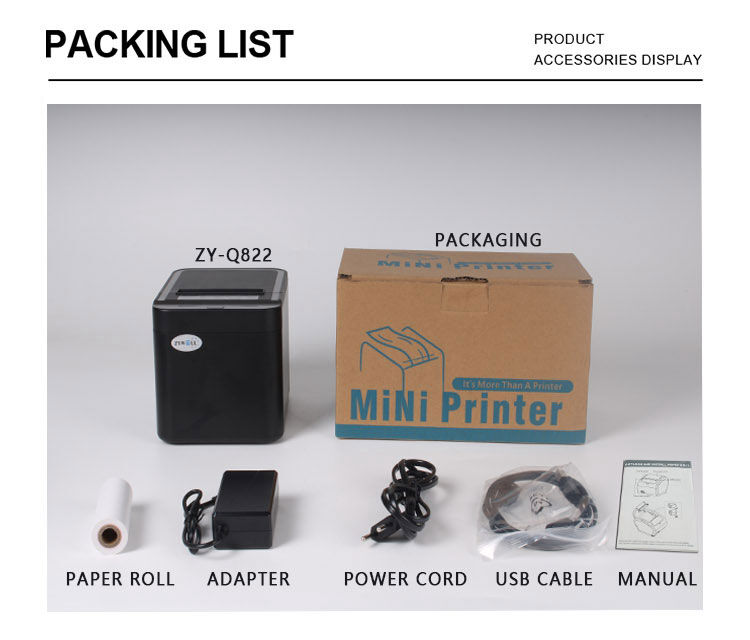

| Accessories | Data cable, power adaptor, power cord, paper roll, manual, roll(option), paper separator(option) |
| Packing | |
| Individual box | Dimension 250×140×145mm (L×W×H), 1unit/carton |
| Master carton | Dimension 540×320×485mm (L×W×H), 12unit/carton |
| OS | |
| Emulation | ESC/POS |
| Driver | Windows/Linux/Mac |
| SDK | Android/iOS/Windows |
