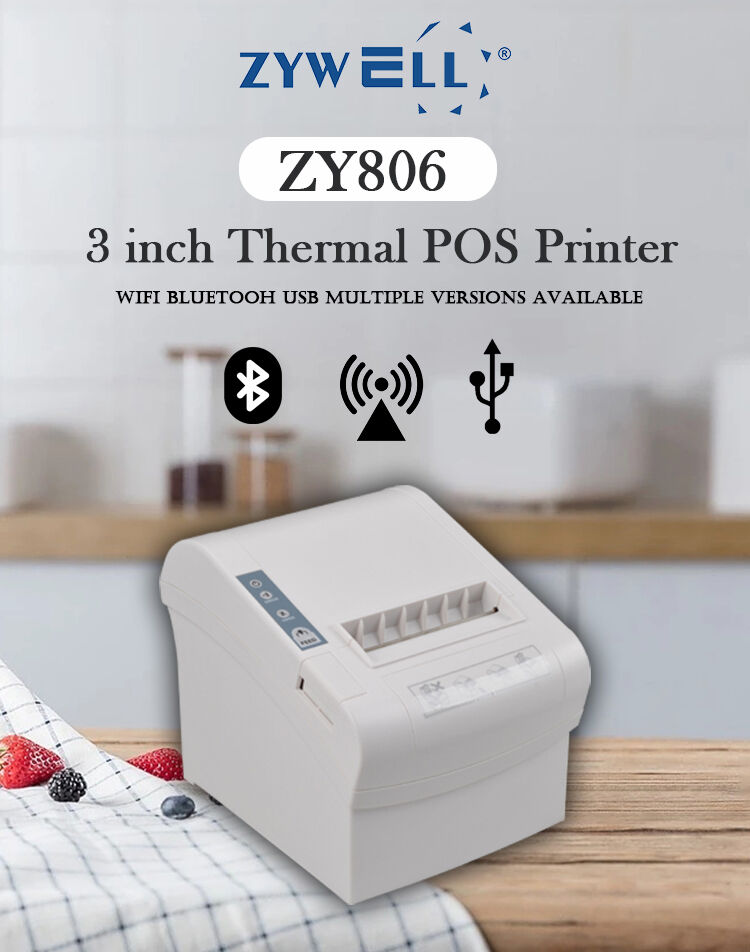

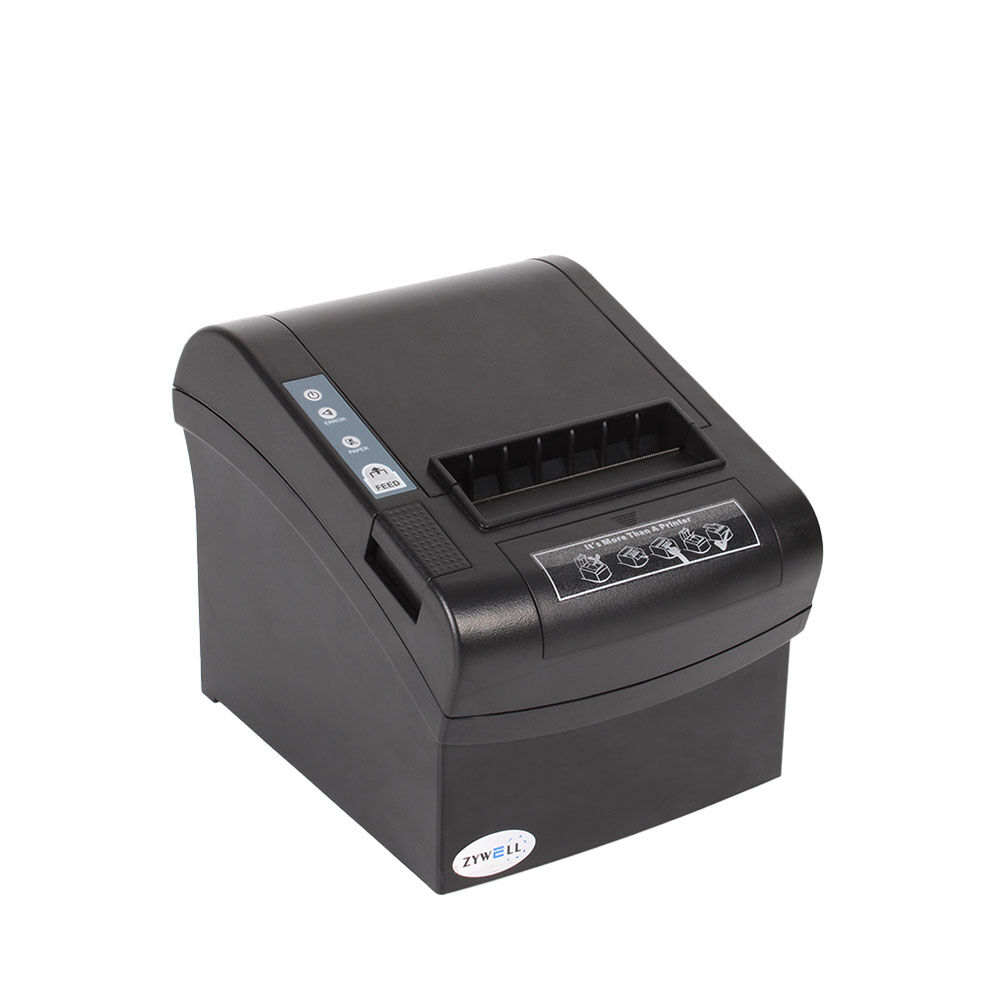

ZYWELL Zy806 Wireless Thermal Receipt Printer

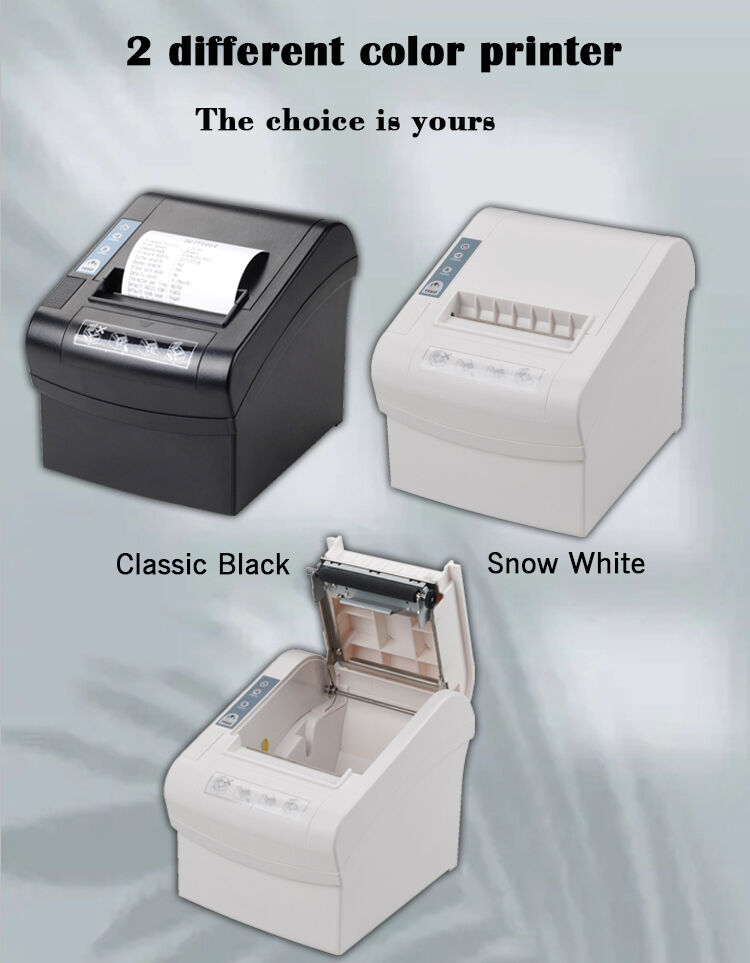

Streamlined Media Handling: Features a user-friendly, drop-in paper loading design with a high-capacity bay for large paper rolls, significantly reducing replenishment frequency and operational downtime.
High-Endurance Engineering: Built for longevity with a professional 150km print head and an industrial-grade auto-cutter rated for 1.5 million cuts, ensuring consistent performance in high-volume environments.

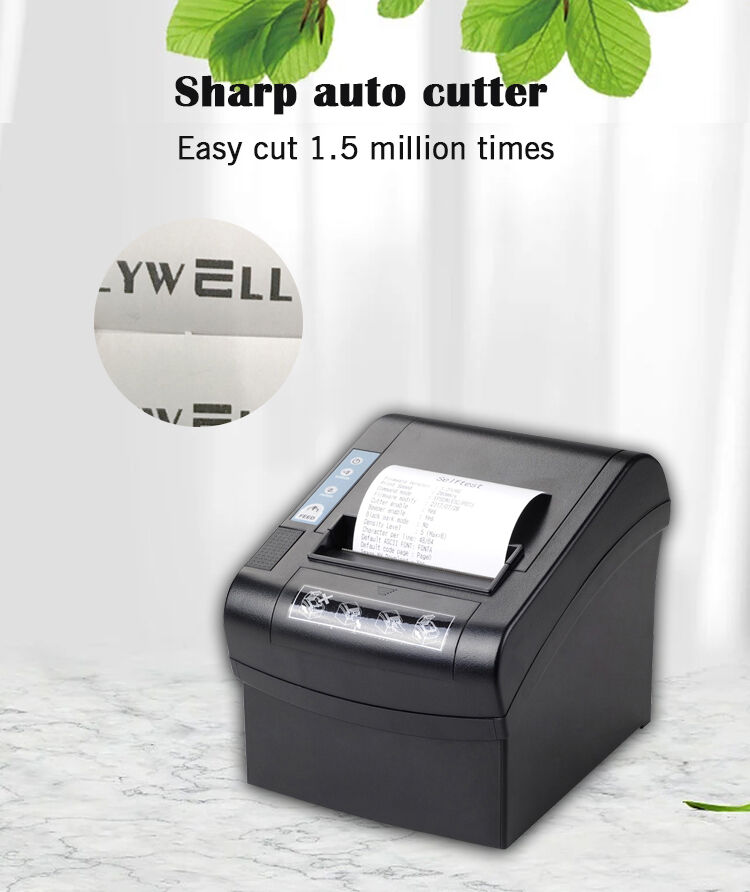

Anti-Jam Technology: The intelligent auto-cutter incorporates a jam-prevention mechanism to minimize hardware frustration and maintain a continuous service flow.
Dynamic Graphics & Character Rendering: Supports versatile printing of high-clarity images, complex curves, and multi-language characters, allowing for fully customized, branded receipts.

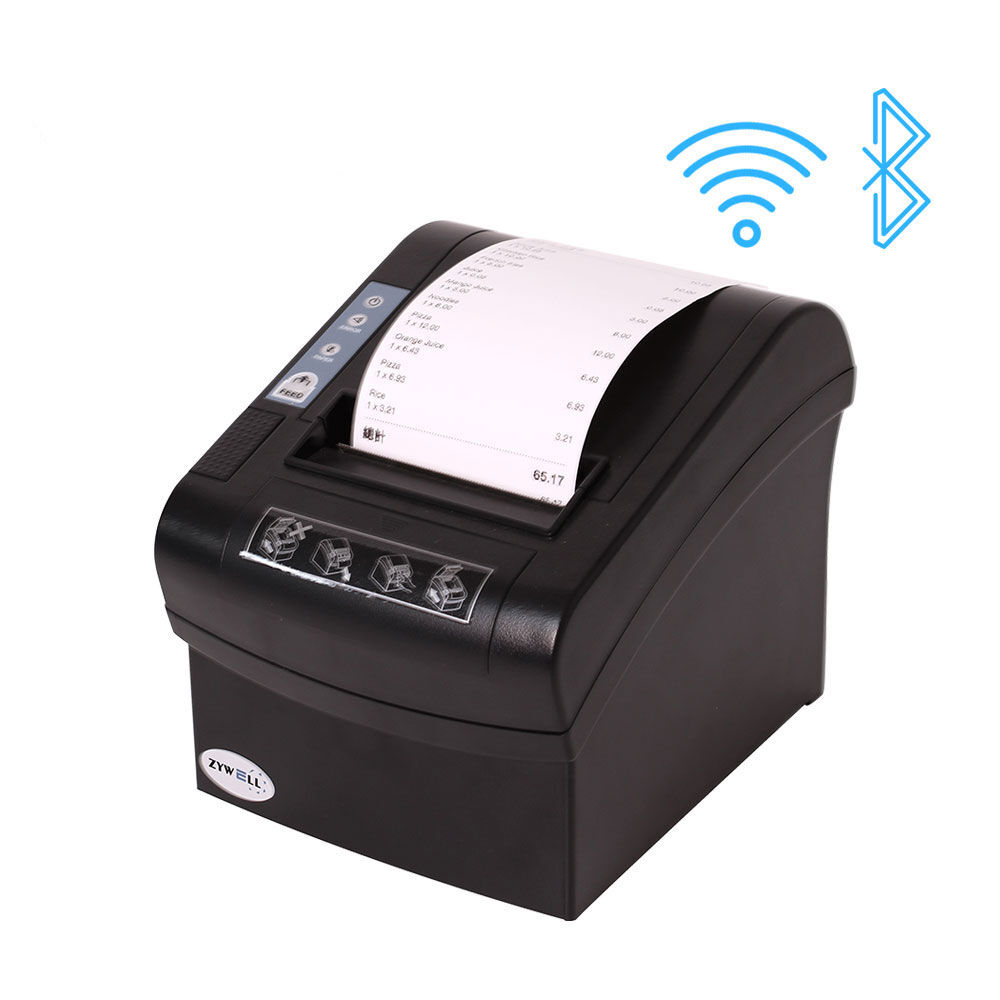

Universal Wired & Wireless Connectivity: Offers flexible interface configurations (USB, Serial, LAN, Bluetooth, and Wi-Fi) to ensure seamless integration into any modern mPOS or cloud-based infrastructure.
- Overview
- Parameter
- Product Details
- Recommended Products
The Zy806 is engineered to anchor your operations across diverse environments—from high-traffic retail counters, where its large-roll capacity minimizes service interruptions, to demanding kitchen zones that require jam-free reliability during peak rushes.
By integrating versatile wireless connectivity (Wi-Fi/Bluetooth) into an industrial-grade frame, it provides the flexibility to transition between traditional fixed stations and modern mobile-first setups, ensuring a seamless transaction flow regardless of workspace constraints.
| Item | Specification |
|---|---|
| Model | Zy806 |
| Print Method | Direct Thermal |
| Resolution | 576 dots/line |
| Printing Width | 80mm(max)/72mm(default) |
| Paper separator (option) | 48mm/52mm/56mm/64mm/68mm/76mm/80mm |
| Input buffer | 256k bytes |
| NV Flash | 256k bytes |
| Interface | U+S+L/U+S/U+L/U+BT/U+W |
| Print Speed | 260mm/s(MAX) |
| Fonts | |
| Font A | 12×24 |
| Font B | 9×17 |
| Chinese | GB18030, BIG5 24×24dots |
| Japanese/Korea | Optional |
| User-defined | Support |
| Barcode | |
| 1D | UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)/CODE39/ITF/CODABAR/CODE93/CODE128 |
| 2D | QR code |
| Detection | |
| Sensors | Paper shortage, cover open, over heat, cutter stuck |
| Power Supply | |
| Input | AC 100V-240V 50/60HZ |
| Output | DC 24V/2.5A |
| Paper | |
| Paper Type | Thermal Receipt Paper |
| Paper Width | 48/52/56/64/68/76/80mm |
| Paper Thickness | 0.06~0.08mm |
| Roll Dia | Max. Ø 83 mm |
| Paper Load | Easy paper loading |
| Paper Cut | Auto-cutter |
| Physical Characteristics | |
| Working Condition | 0°C~45°C, 10%~80%RH |
| Storage Condition | -10°C~60°C,10%~90%RH |

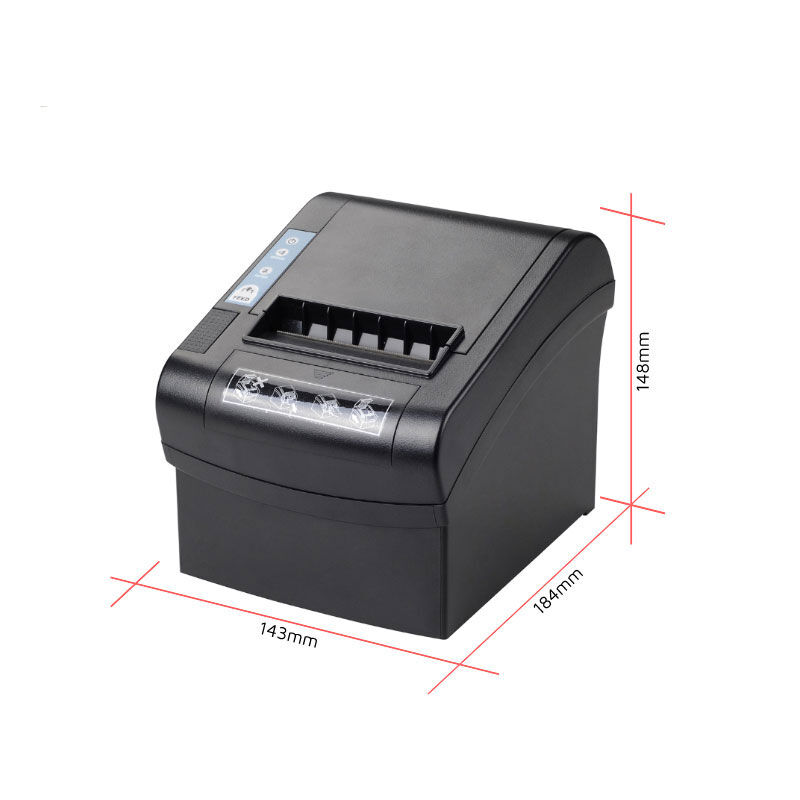

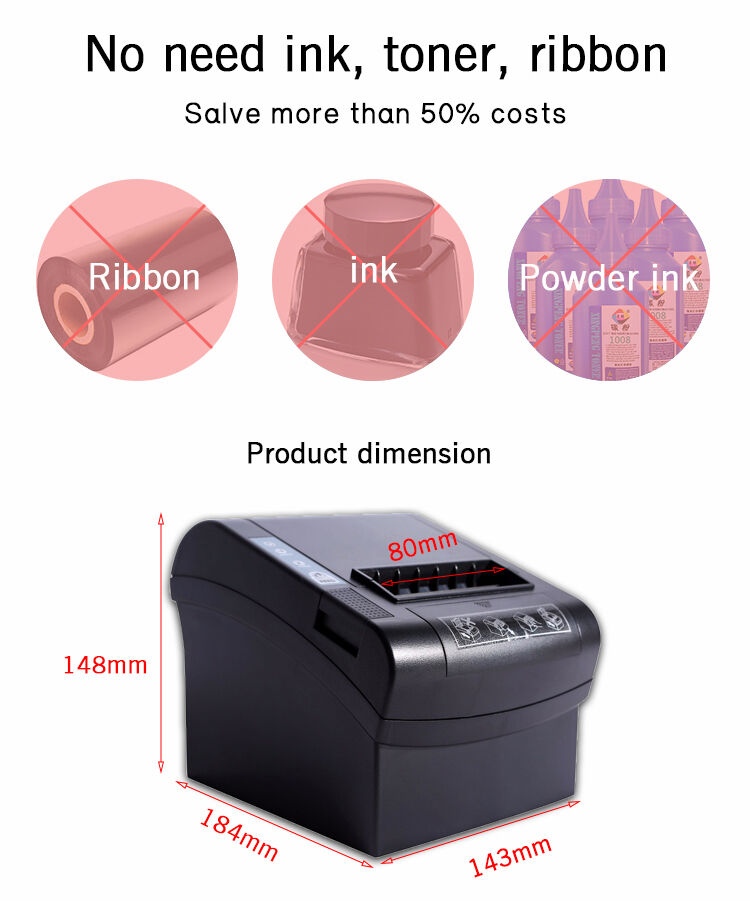

| Dimensions | 184(D)×143(W)×148(H)mm |
| Net weight | Net weight: 1.4kg, Gross weight: 2.2kg |
| Reliability | |
| Printing head | 150KM |
| Cutter | 1.5million |

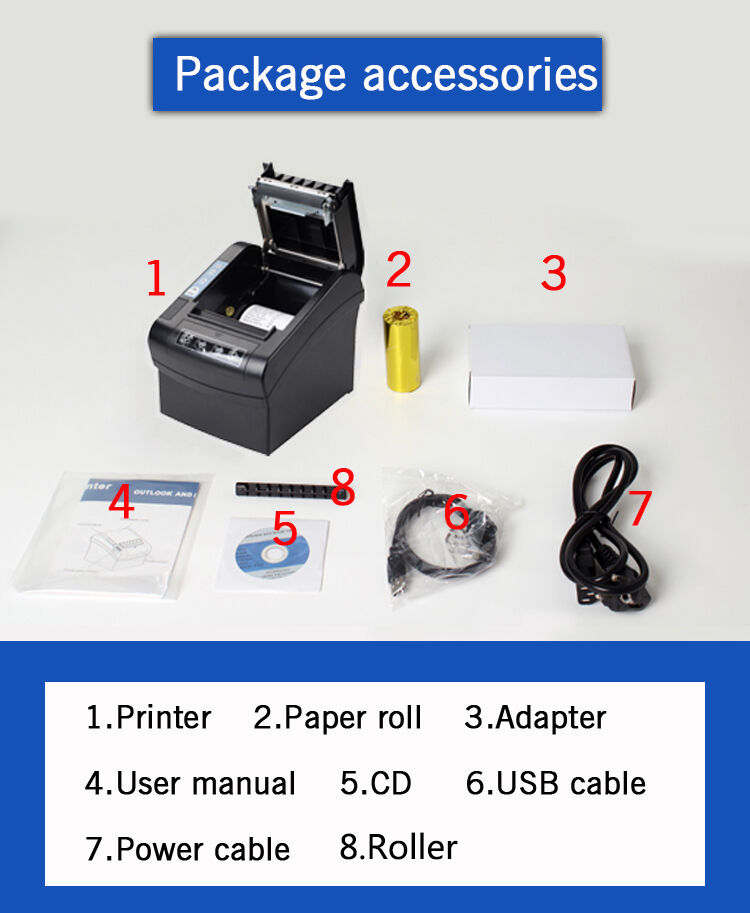

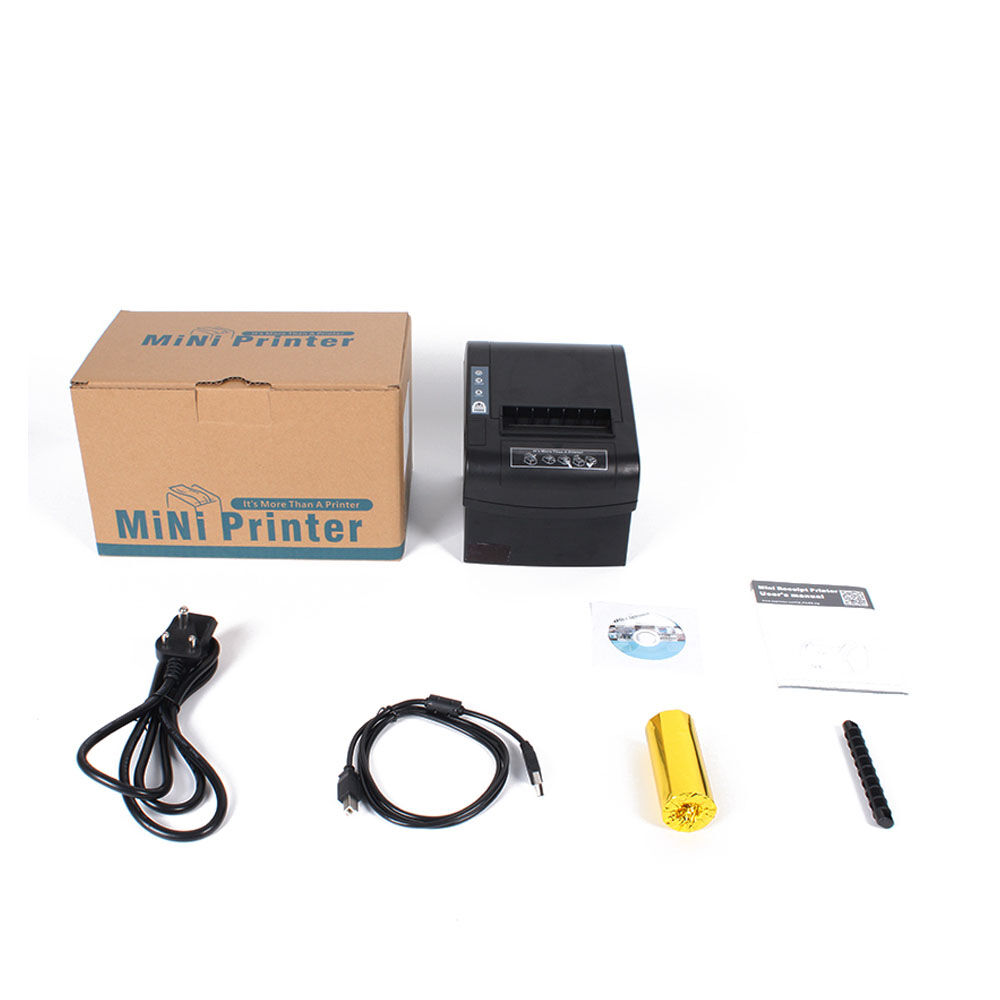

| Accessories | Data cable, Power adaptor, Power cord, Paper roll, CD, Manual, Roller, Paper separator(option) |
| Packing | |
| Individual box | Dimension 250×200×160mm(L×W×H) 1unit/carton |
| Master carton | Dimension 640×280×360mm(L×W×H) 6unit/carton |
| OS | |
| Emulation | ESC/POS |
| Driver | Windows/Linux/Mac |
| SDK | Android/IOS/Windows |
