ZYWELL Zy3600 Auto-Cut Thermal Label Printer
- Zy3600 Auto-Cut Thermal Label Printer.
- Automatic Cutter: Quickly and accurately cuts label paper, improving batch printing efficiency. The cuts are clean and uniform, enhancing label quality and appearance.
- Easy to Use Labels: Neatly cut labels are easy to peel and apply, making post-print use more convenient.
- Versatile Paper Support: Compatible with both thermal label paper and thermal receipt paper.
- External Paper Inlet: Supports larger paper rolls with an external paper feed design, offering more flexibility for high-volume printin
- Overview
- Parameter
- Product Details
- Recommended Products
Zy3600 Auto-Cut Thermal Label Printer.
Versatile Printing Applications

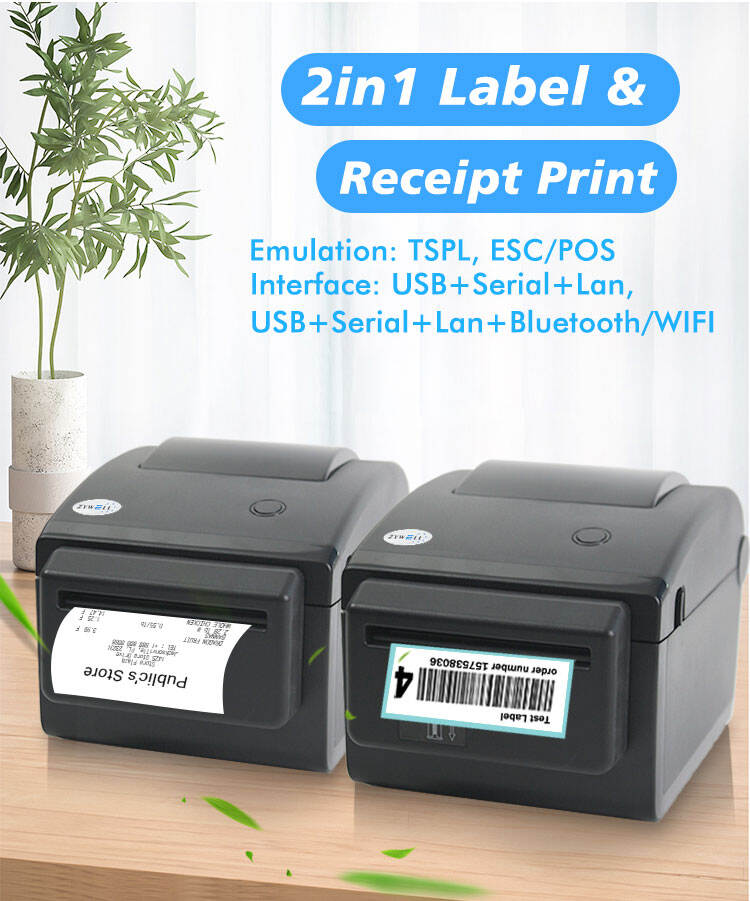

The Zy3600 supports both label and receipt printing modes, facilitating the production of address waybills, price tags, name cards, and transaction receipts. This dual-functionality is designed for cross-industry use in retail, logistics, and hospitality.
High-Speed Performance & Durability

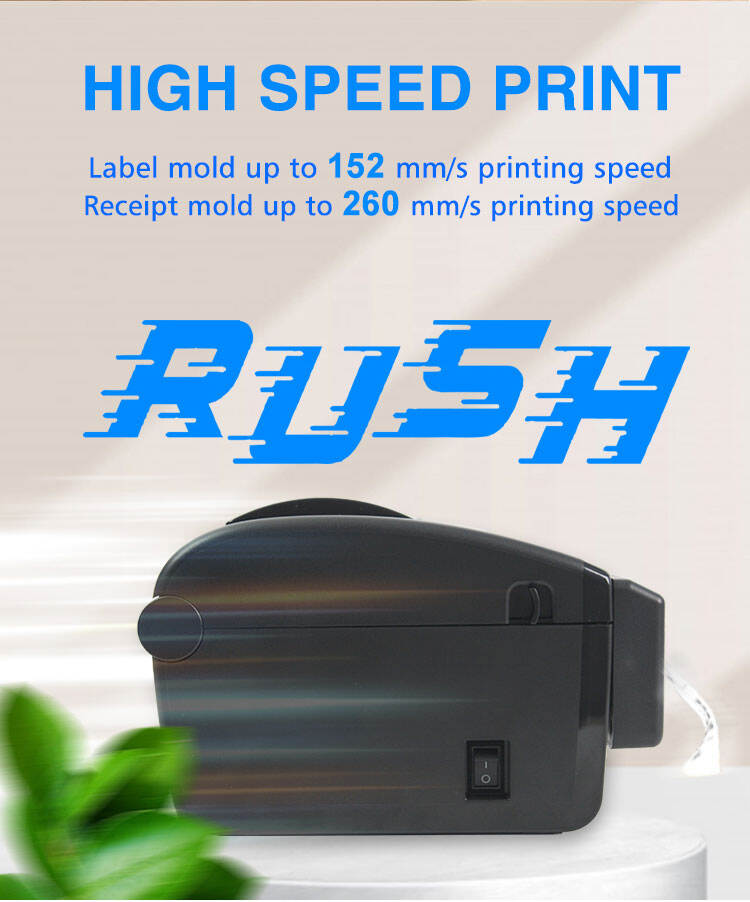

Printing Speed: Capable of outputting at speeds up to 152mm/s.

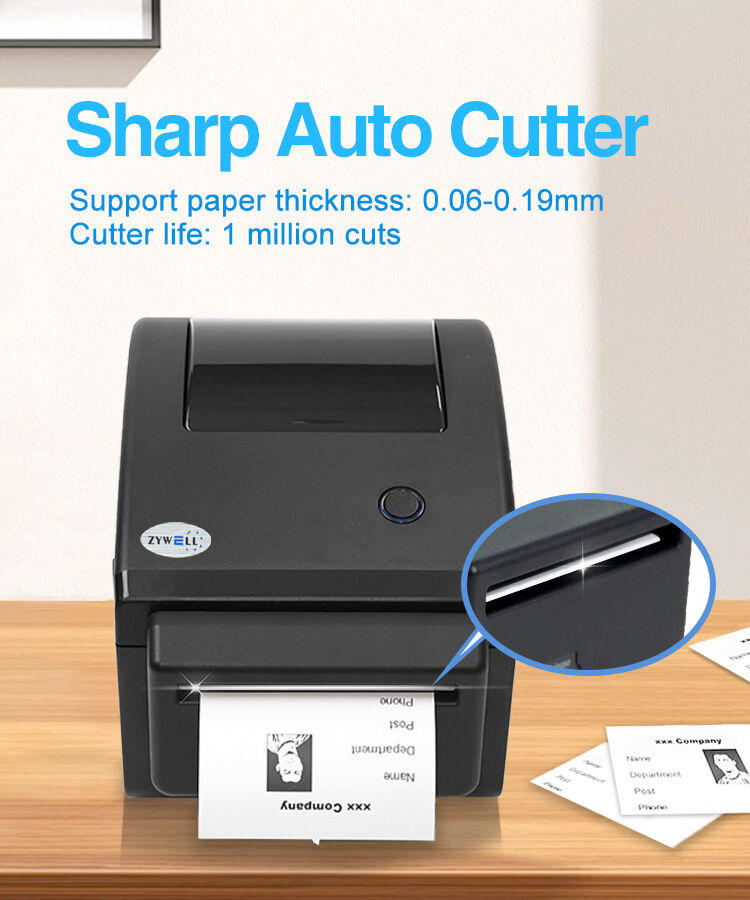

Integrated Auto-Cutter: Features a precision cutter with a rated lifespan of 1 million cuts.
Media Thickness: Supports a broad range of paper thickness from 0.06mm to 0.19mm, meeting requirements for heavy-duty label stocks.
Industrial Capacity & External Feed

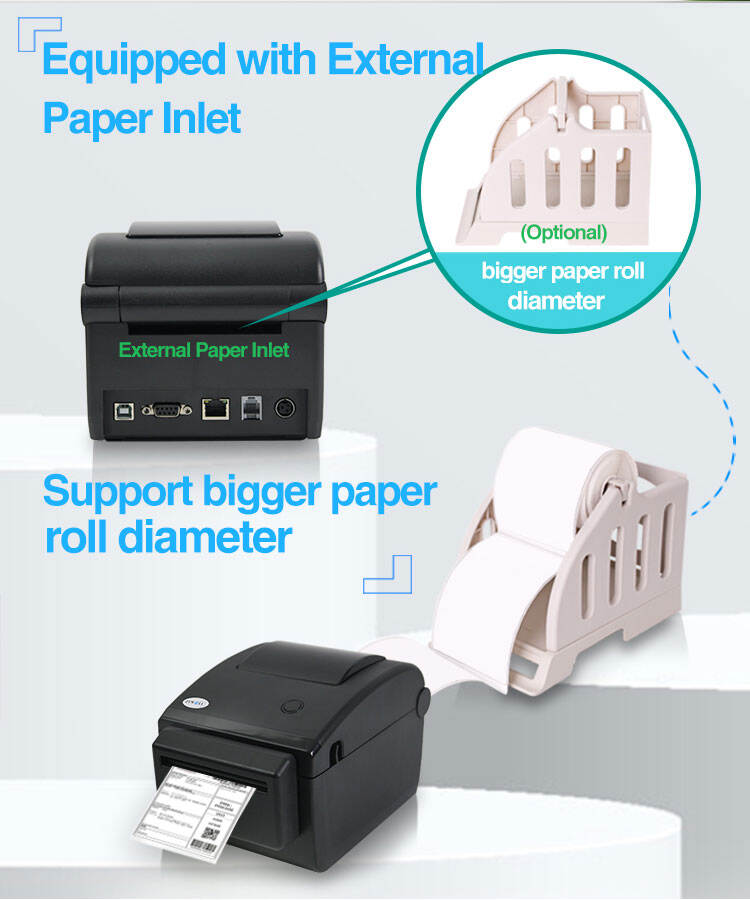

External Paper Inlet: Includes a rear-feed port for large-diameter paper rolls.
Volume Efficiency: Designed for high-volume printing by reducing the frequency of paper roll replacements through external supply support.
Mechanical Design & Flexibility
90° Open Mechanism: The housing features a wide-angle opening for direct access to the paper compartment.
Adjustable Paper Guides: Supports paper widths up to 80mm with a center-printing mechanism to ensure accurate alignment for various consumable sizes.
| Model | Zy-3600(Automatic Cutter) |
| Print Method | Direct Thermal |
| Resolution | 203dpi(8dots/mm) |
| Memory | Input buffer: 2M; NV Flash: 4M |

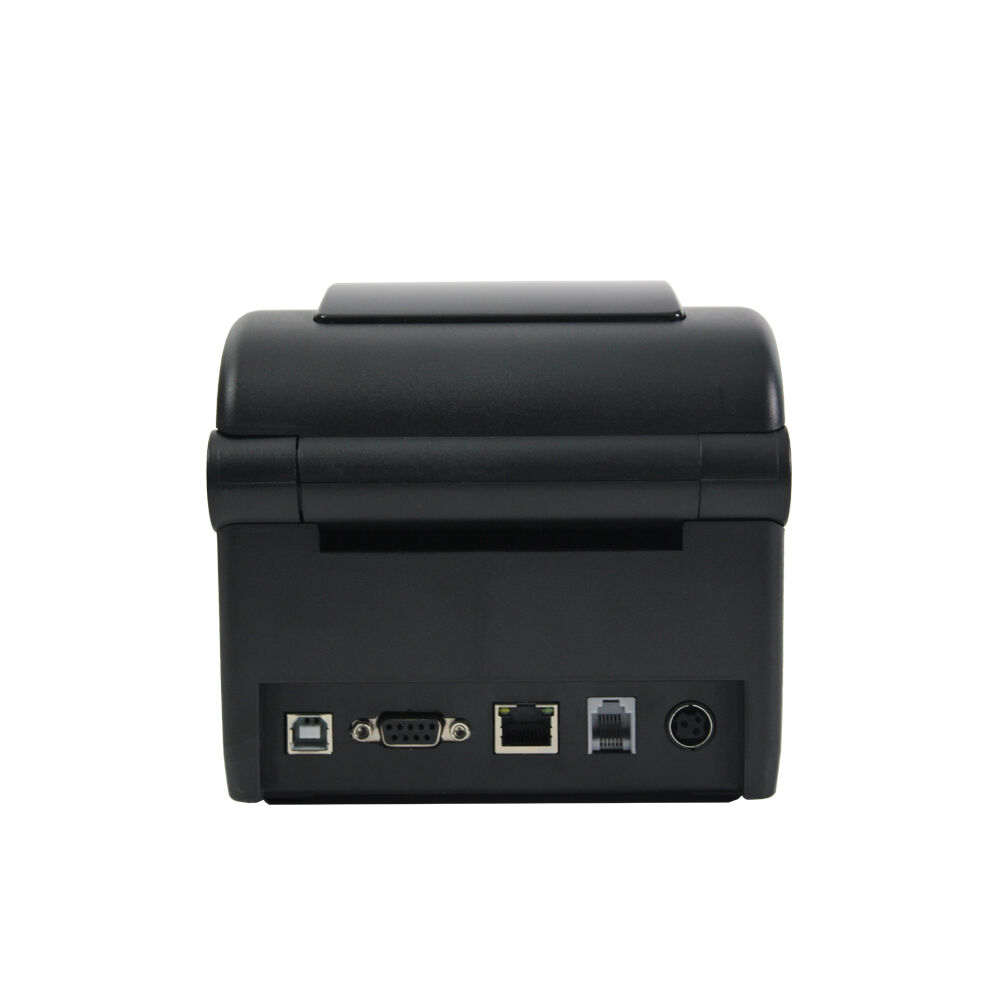

| Interface | USB+LAN+SERIAL/USB+LAN+SERIAL+WIFI/USB+LAN+SERIAL+BLUETOOTH |
| Print Speed | 50.8mm/s(Min); 152mm/s(Max) |
| Fonts | |
| Font A | 12x24 |
| Font B | 9x17 |
| Chinese | GB18030, BIG5 24x24dots |
| Japanese/Korea | Support |
| User-defined | Support |
| Character Size (mm) | Font 0-Font 8; 1~10 times enlargement in both directions; 0°、90°、270°、360°rotation |
| Graphics Processing | Support BMP/PCX/BAS files |
| Barcode | |
| 1D | CODE128, EAN128, ITF, CODE39, CODE93, EAN13, EAN13+2, EAN13+5, EAN8, EAN8+2, EAN8+5, CODABAR, POSTNET, UPC-A, UPCA+2, UPCA+5, UPC-E, UPCE+2, UPC-E+5, CPOST, MSI, MSIC, PLESSEY, ITF14, EAN14 |
| 2D | PDF417/QR CODE/DATA MATRIX |
| Detection | |
| Print head temperature sensor | Thermal sensitive resistance |
| Paper exists detection | Photoelectric sensor |
| Power Supply | |
| Input | AC 100V-240V 50/60HZ |
| Output | DC 24V/2.5A |
| Paper | |
| Paper Type | Thermal Receipt Paper/Thermal Label Paper |
| Paper Width | 25mm-80mm |
| Paper Thickness | 0.06-0.19mm |
| Roll Dia | Max. Ø 92 mm |
| Roll inner Diameter | 25mm ~ 38mm |
| Paper Cut | Auto-cutter(half cut) |
| Physical Characteristics | |
| Working Condition | 5℃-45℃, 20%-80%RH(No condensation) |
| Storage Condition | -40℃-55℃,≤93%RH(40℃) |
| Dimensions | 209(L)x142(W)x135(H)mm |
| Net weight | Net weight: 0.85kg; Gross weight: 1.5kg |
| Reliability | |
| Printing head | 50KM |
| Cutter | 1.0million |
| Accessories | |
| Accessories | USB data cable, power adapter, power cord, manual, paper shelf, roller |
| Packing | |
| Individual box | Dimension 286×164×160mm(L×W×H) 1unit/carton |
| Master carton | Dimension 615×370×535mm(L×W×H) 12unit/carton |
| OS | |
| Emulation | TSPL(Lable mode)/ESC/POS(Receipt mode) |
| Driver | Windows/Linux/Mac |
| SDK | Android/iOS/Windows |
