ZYWELL Z58-MB 58mm Thermal Panel Receipt Printer
Compact & Standardized: Market-standard dimensions with a 2-inch footprint, designed for easy embedding into most self-service terminals.
Industrial Reliability: Built with a reinforced "inner core" and a durable print head boasting a 50km lifespan.

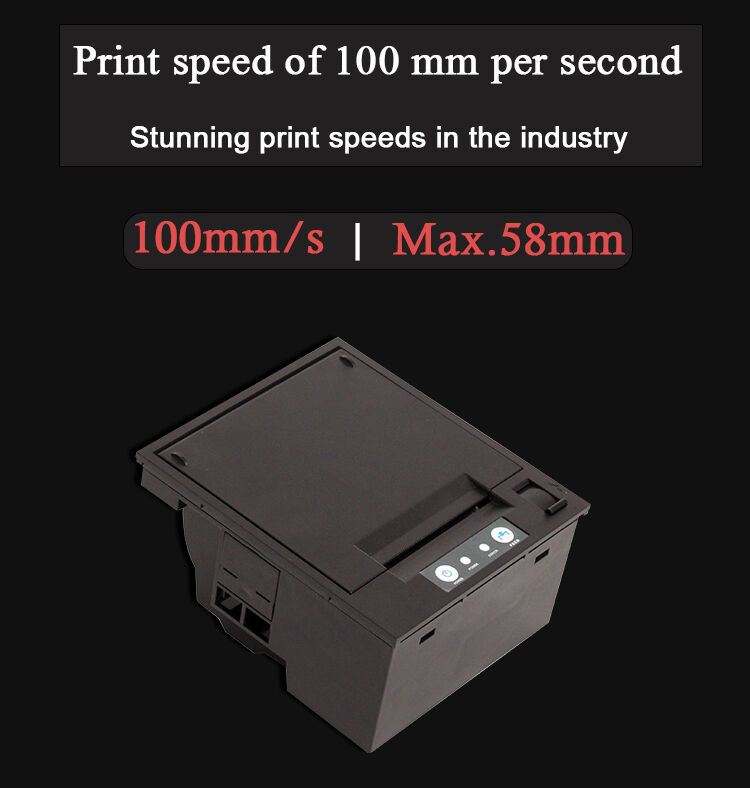

High-Speed & Quiet: Delivers clear, high-quality printing at 100mm/s with ultra-low noise levels.
Large Media Capacity: Supports paper rolls up to 65mm in diameter, significantly reducing the frequency of paper changes.
Universal Compatibility: Fully supports ESC/POS commands and features dual USB + Serial (RS232) interfaces for easy integration.
Versatile Applications: The perfect choice for ATMs, weighing scales, banking kiosks, and medical equipment.
- Overview
- Parameter
- Product Details
- Recommended Products

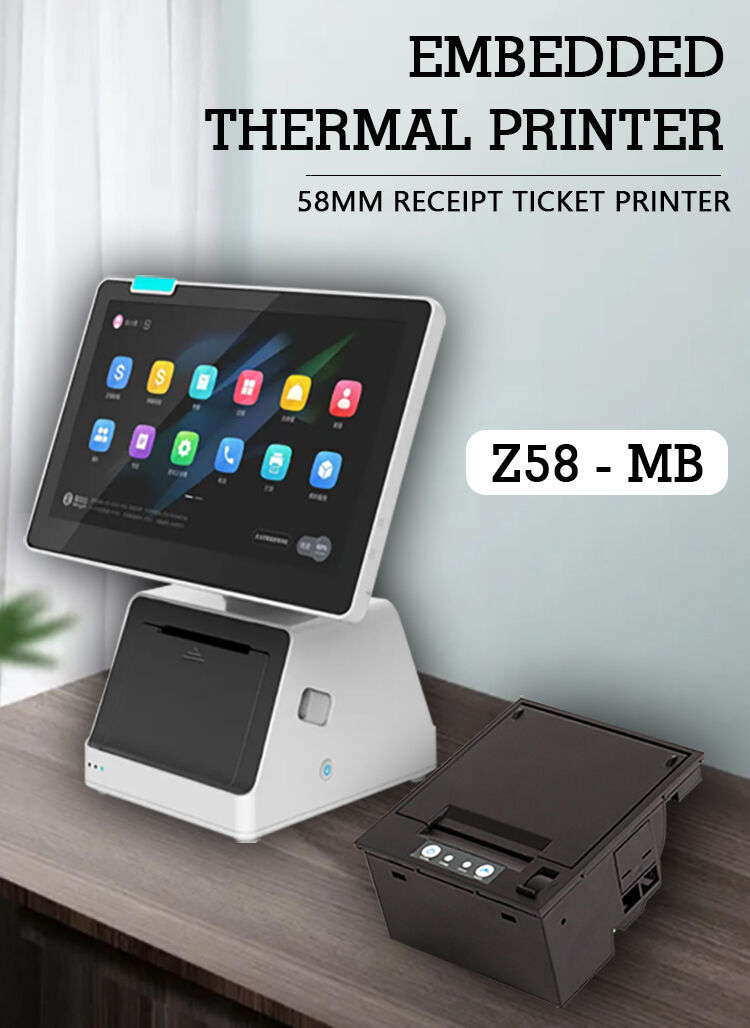

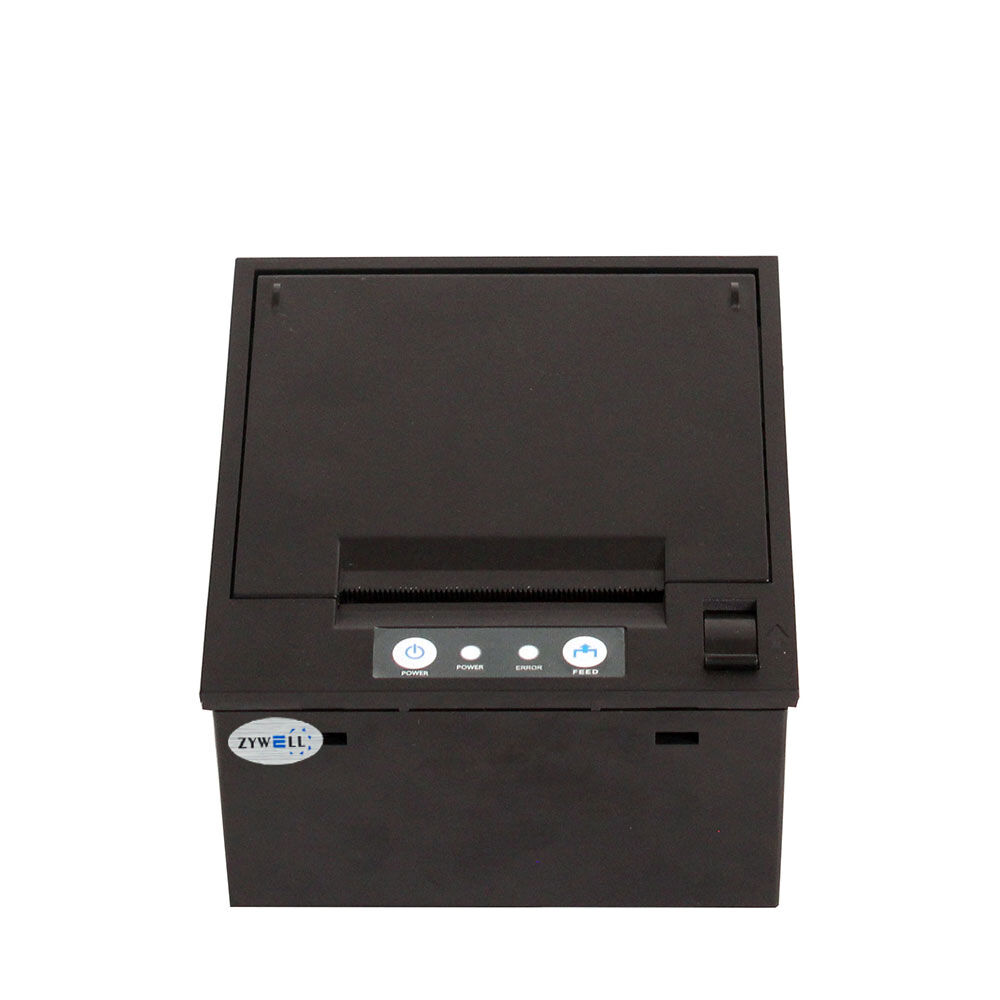

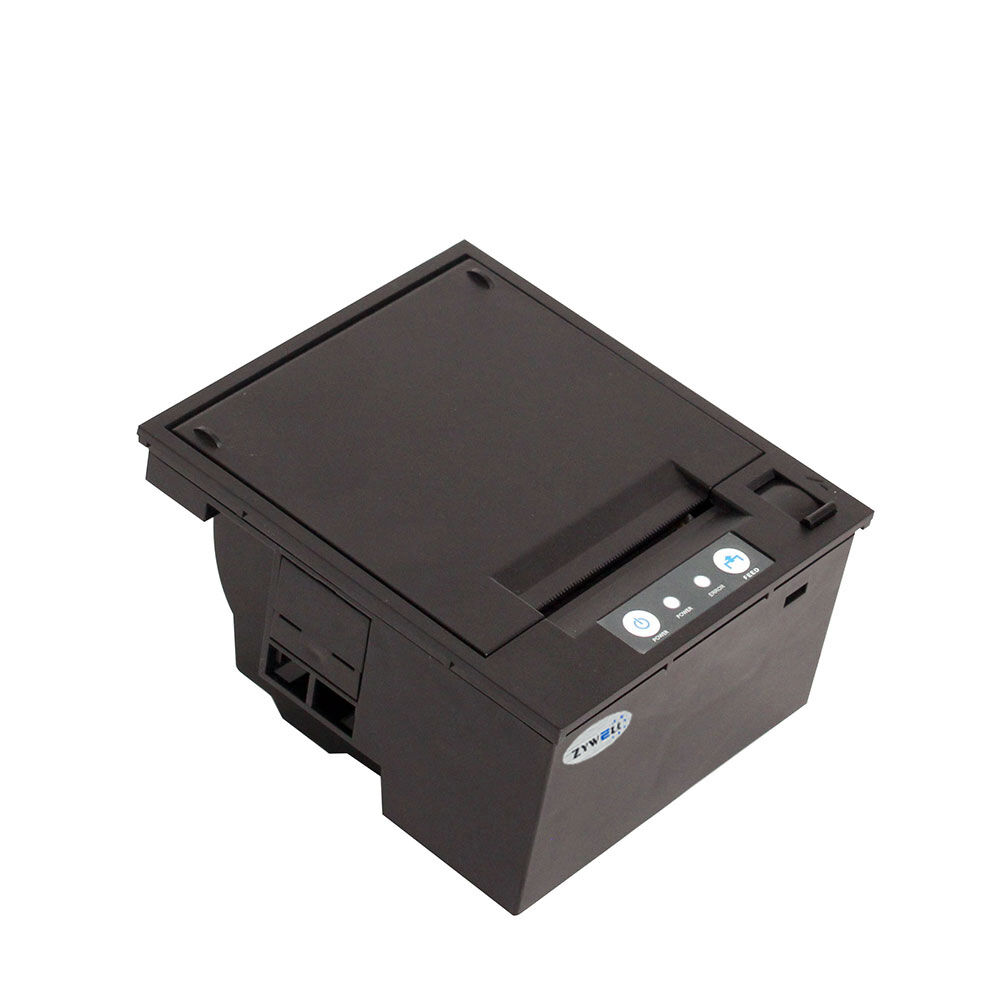

ZYWELL Z58-MB | 58mm Embedded Thermal Printer
The Z58-MB is a compact printing module engineered for seamless integration into self-service kiosks, banking terminals, and industrial equipment. It provides a stable, space-saving solution for high-frequency automated ticketing.
Industrial Reliability: Built with a reinforced core and a 50km-rated print head to support continuous, high-volume use in unattended environments.
Standardized Fitting: Follows industry-standard dimensions for easy installation into existing terminal housings and kiosks.
Precision Output: Delivers clear text and high-contrast 1D/2D barcodes at 100mm/s, ensuring fast data recognition and readability.
Versatile Connectivity: Supports USB and Serial (RS232) interfaces, compatible with Windows, Android, and iOS systems.
Maintenance Efficiency: Designed for quick paper loading and simple modular replacement to minimize equipment downtime.
Target Applications: ATMs, weighing scales, queuing machines, and medical devices.
| Item | Specification |
|---|---|
| Model | Z58-MB |

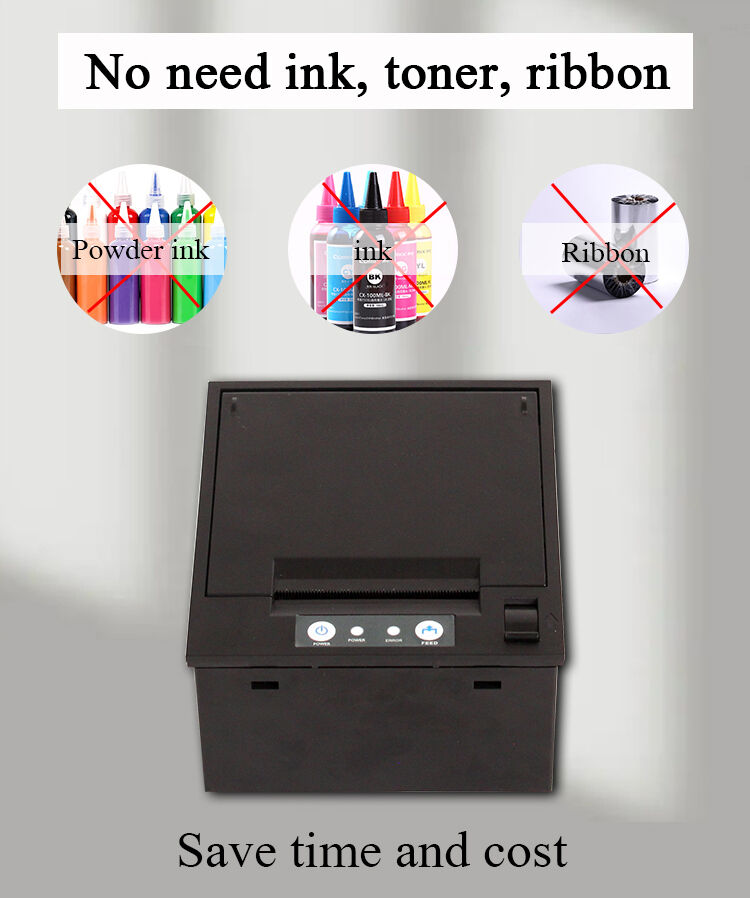

| Print Method | Direct Thermal |
| Resolution | 384 dots/line |
| Printing Width | 58mm |
| Print Speed | 100mm/s (Max) |
| Memory | Input buffer: 64k bytes, NV Flash: 256k bytes |
| Interface | U+S |
| Paper baffle (optional) | 48mm |
| Fonts | |
| Font A | 12×24 |
| Font B | 9×17 |
| Chinese | GB18030, BIG5 24×24dots |
| Japanese/Korean | Optional |
| User-defined | Support |
| Barcode | |
| 1D | UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)/CODE39/ITF/CODABAR/CODE93/CODE128 |
| 2D | QR code |
| Reliability | |
| Printing head | 50KM |
| Power Supply | |
| Input | AC 100V-240V 50/60Hz |
| Output | DC 12V/2A |
| Paper | |
| Paper Type | Thermal Receipt Paper |
| Paper Width | Max. 57.5±0.5mm |
| Paper Thickness | 0.06~0.08mm |
| Roll Dia | Max. Φ 65 mm |
| Paper Load | Easy paper loading |
| Paper Cut | Manual tear |
| Physical Characteristics | |
| Working Condition | 0°C~52°C, 10%~85%RH |
| Storage Condition | -10°C~60°C, 10%~90%RH |
| Dimensions | 132.5(D)×115(W)×86.4(H)mm |
| Net weight | Net weight: 0.35kg, Gross weight: 0.76kg |
| Accessories | Paper roll, USB cable, serial cable, power adapter, power cord, power adapter cable, instruction manual |
| Packing | |
| Individual box | Dimension 180×164×135mm (L×W×H), 1unit/carton |
| Master carton | Dimension 525×405×445mm (L×W×H), 18unit/carton |
| OS | |
| Emulation | ESC/POS |
| Driver | Windows/Linux/Mac |
| SDK | Android/iOS/Windows |
