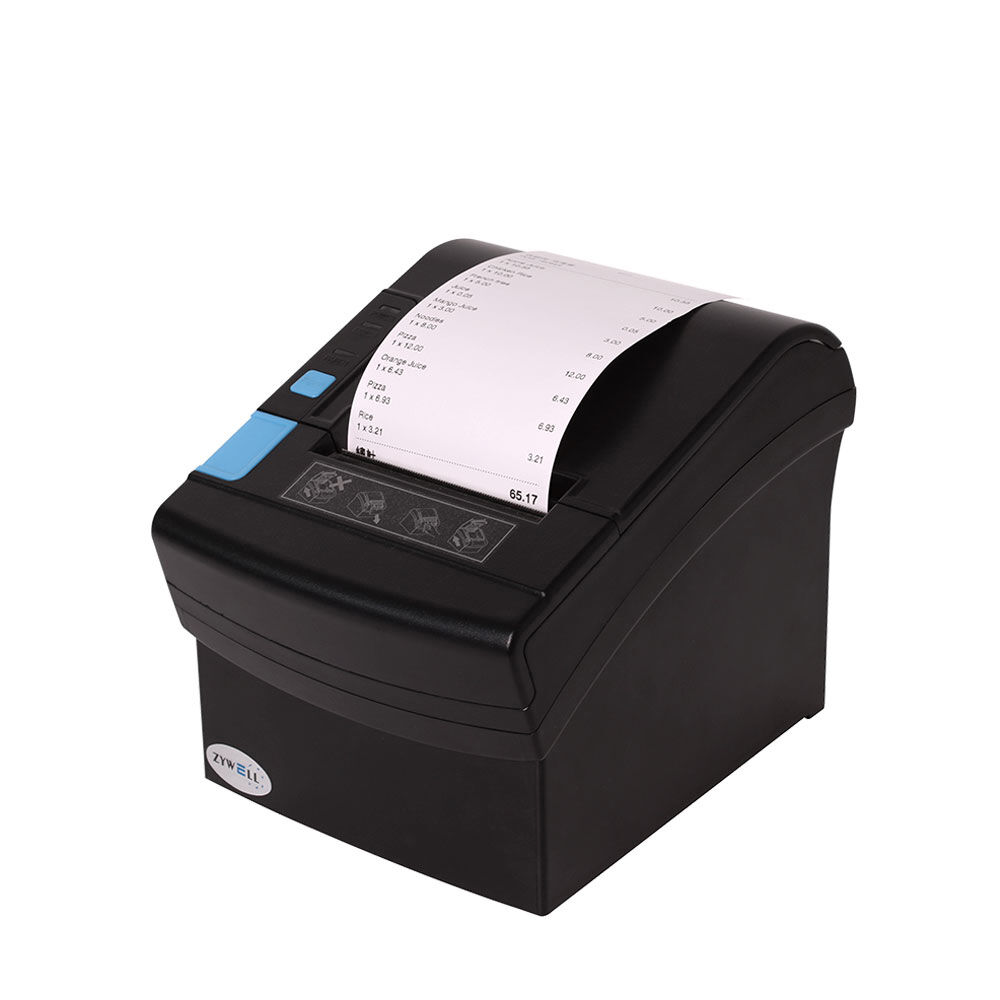

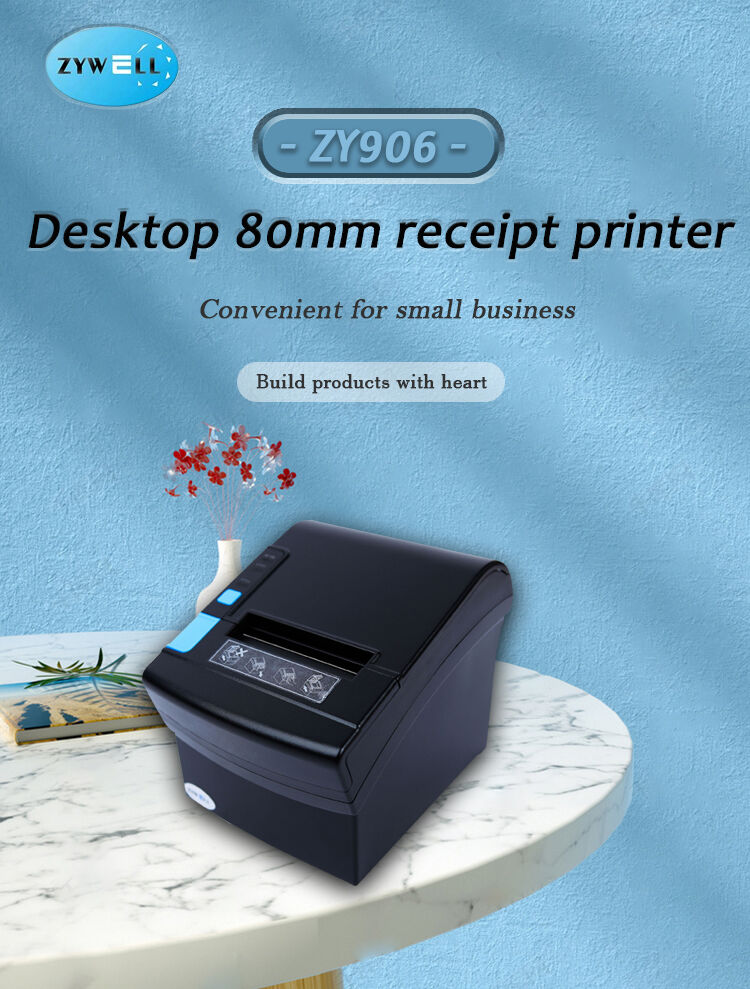

ZYWELL Zy906 80mm Pos Printer

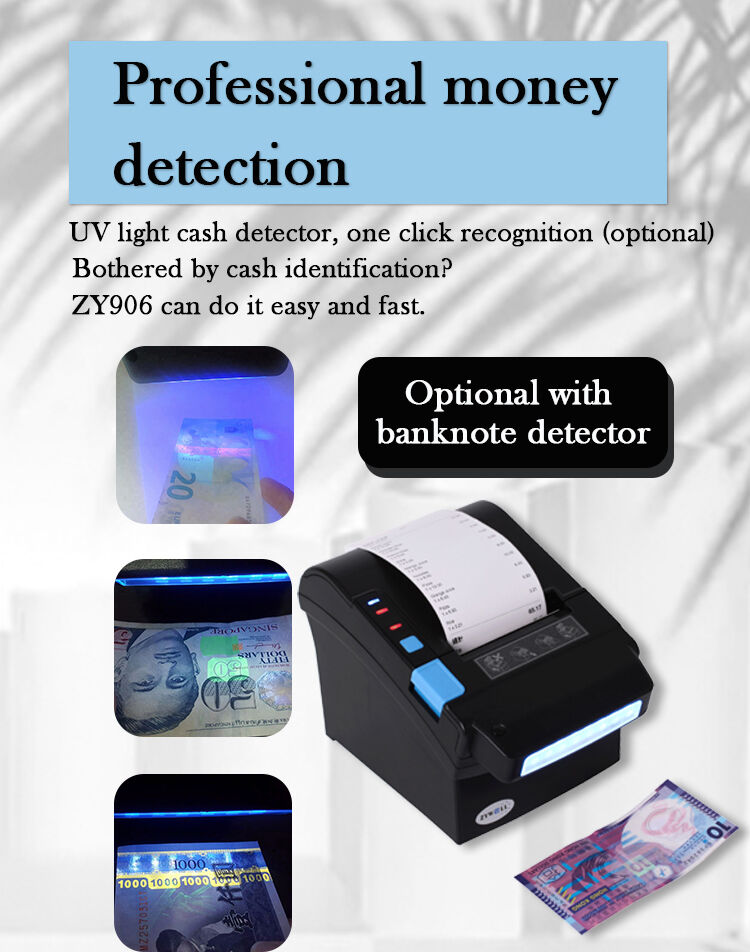

Integrated Receipting & Money Detection Light: A dual-function unit that combines thermal printing with a built-in verification light. Users can check banknote authenticity via a dedicated one-touch light source, reducing the need for separate detection tools and optimizing counter space.
Reinforced Mechanical Structure: Constructed with a high-density plastic exterior and a full stainless steel internal frame. This material composition provides mechanical stability for continuous, high-volume operation.
Mechanism Life-Cycle Monitoring: Supports direct software commands to query the current status and remaining life expectancy of the print mechanism, allowing for data-driven maintenance and scheduled servicing.
Software-Based Queuing Function: Includes integrated queuing management tools, enabling the printer to generate and track customer service sequences and wait times directly through the system interface.

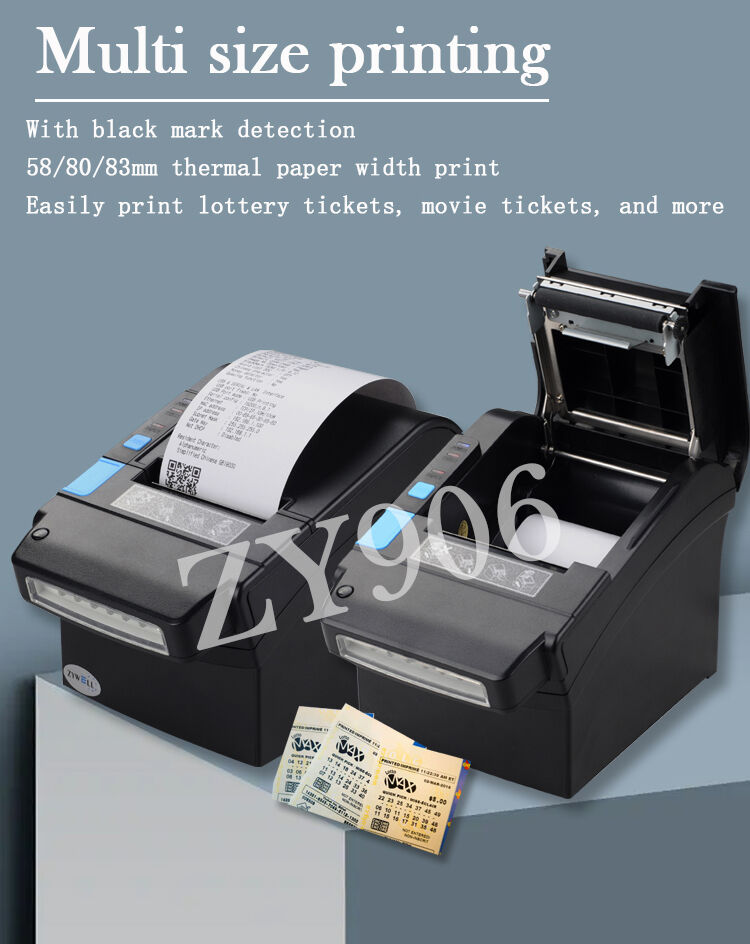

Adjustable Media Width: Supports both 58mm and 80mm thermal paper. An optional paper guider is available to maintain alignment and prevent paper jams across different roll sizes.
- Overview
- Parameter
- Product Details
- Recommended Products
In busy retail environments, the Zy906 functions as a combined workstation tool that handles both receipt printing and banknote verification. By including a built-in light source for manual bill checking, it removes the need for a separate detection lamp on the counter, leaving more room for customer transactions and POS hardware.
The unit’s full stainless steel internal frame and high-density plastic exterior provide the weight and stability necessary to stay in place during continuous, one-handed operation. For service flow management, the system includes queuing tools to generate and track customer sequences directly from the printer. To prevent service interruptions at the checkout line, the Zy906 allows staff to check the mechanism’s remaining life-cycle via software commands, enabling scheduled maintenance before mechanical wear occurs. With its adjustable paper guider, the printer adapts to both 58mm and 80mm rolls, making it a versatile component for various checkout counter configurations.
| Item | Specification |
|---|---|
| Model | Zy906 |
| Print Method | Direct Thermal |
| Resolution | 576 dots/line |
| Printing Width | 80mm(max)/72mm(default) |
| Paper separator (option) | 48mm/52mm/56mm/64mm/68mm/76mm/80mm |
| Input buffer | 256k bytes |
| NV Flash | 256k bytes |

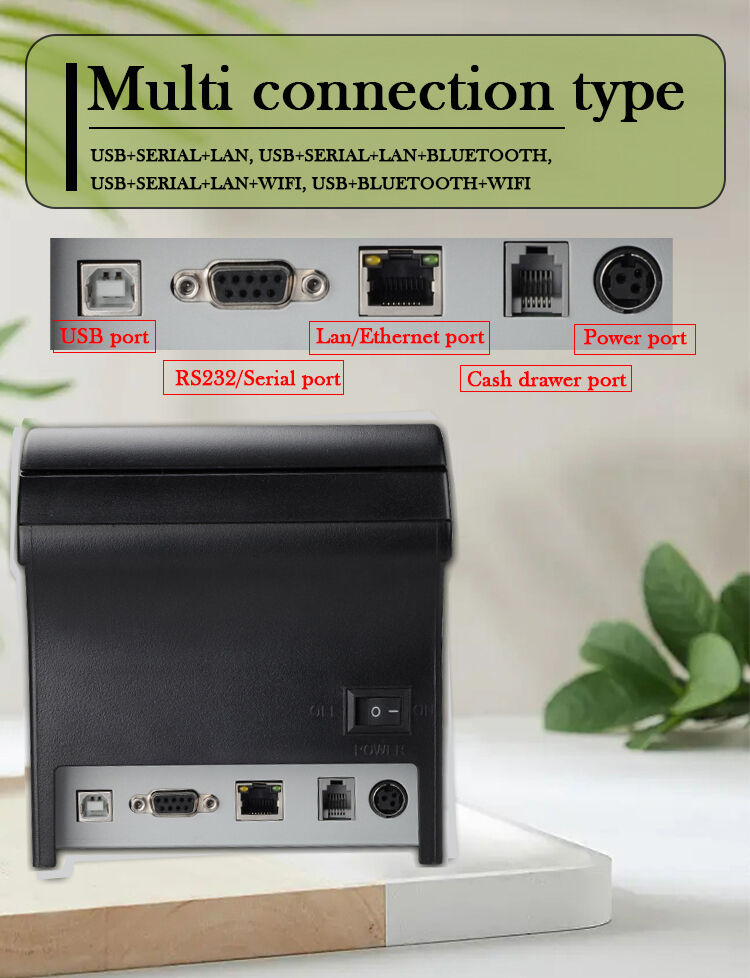

| Interface | U+S+L |

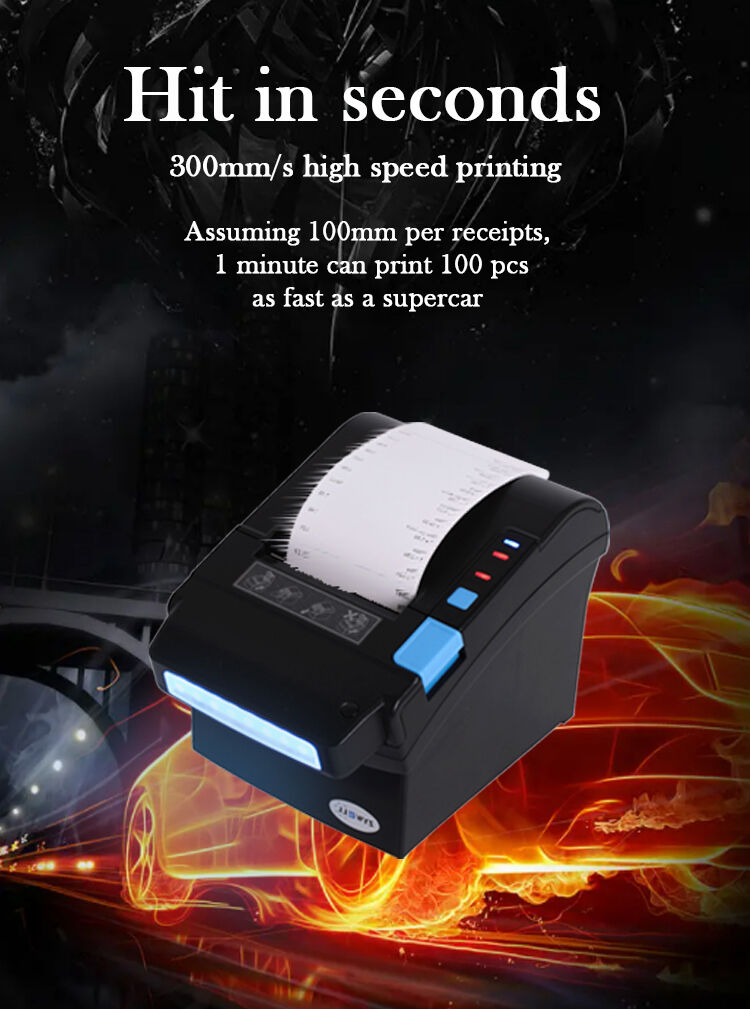

| Print Speed | 260mm/s(MAX) |
| Money Detector | Support |
| Fonts | |
| Font A | 12×24 |
| Font B | 9×17 |
| Chinese | GB18030, BIG5 24×24dots |
| Japanese/Korea | Optional |
| User-defined | Support |
| Barcode | |
| 1D | UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)/CODE39/ITF/CODABAR/CODE93/CODE128 |
| 2D | QR code |
| Detection | |
| Sensors | Paper shortage, cover open, over heat, cutter stuck |
| Power Supply | |
| Input | AC 100V-240V 50/60HZ |
| Output | DC 24V/2.5A |
| Paper | |
| Paper Type | Thermal Receipt Paper |
| Paper Width | Max.79.5±0.5mm/57.5±0.5mm |
| Paper Thickness | 0.06~0.08mm |
| Roll Dia | Max. Ø 83 mm |
| Paper Load | Easy paper loading |
| Paper Cut | Auto-cutter |
| Physical Characteristics | |
| Working Condition | 0°C~45°C, 10%~80%RH |
| Storage Condition | -10°C~60°C,10%~90%RH |
| Dimensions | 218.7(D)×145(W)×149.1(H)mm |
| Net weight | Net weight: 1.4kg, Gross weight: 2.2kg |
| Reliability | |
| Printing head | 150KM |
| Cutter | 1.5million |
| Accessories | Data cable, Power adaptor, Power cord, Paper roll, CD, Manual, Roller, Paper separator(option) |
| Packing | |
| Individual box | Dimension 250×200×160mm(L×W×H) 1unit/carton |
| Master carton | Dimension 640×280×360mm(L×W×H) 6unit/carton |
| OS | |
| Emulation | ESC/POS |
| Driver | Windows/Linux/Mac |
| SDK | Android/IOS/Windows |
