ZYWELL ZM04 80mm Label Portable Printer

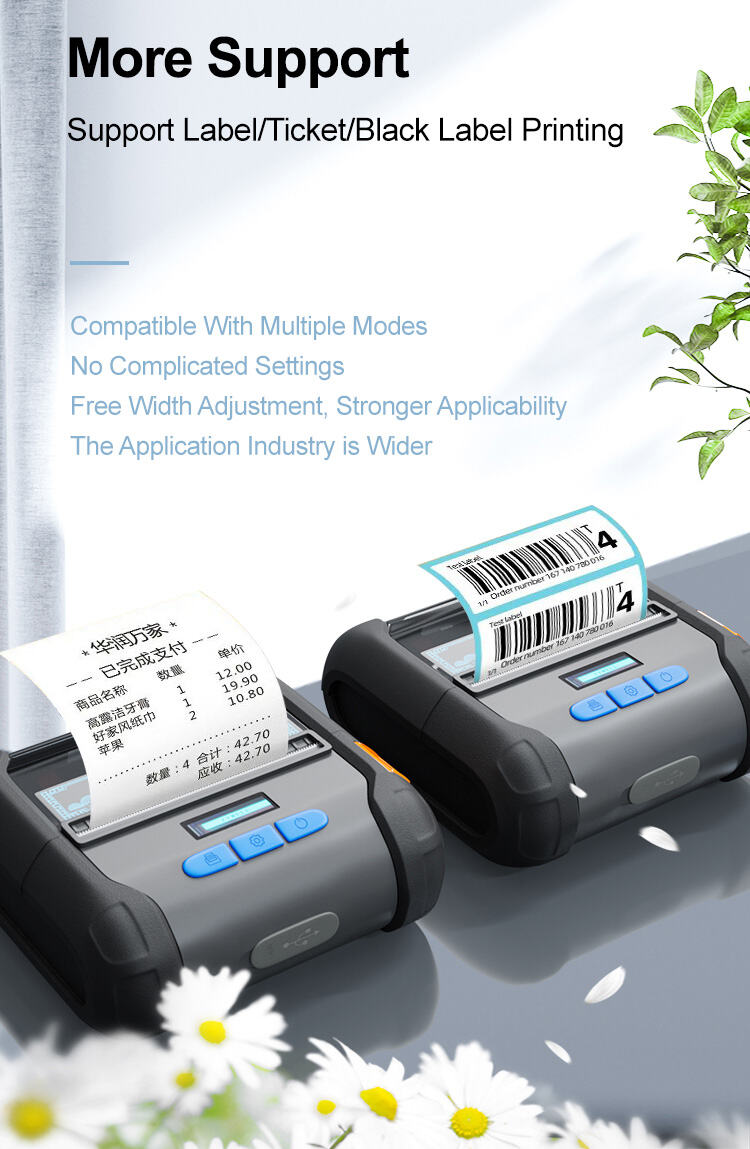

Hybrid Printing: Supports both thermal label and receipt printing modes, allowing businesses to switch between waybills, price tags, and transaction slips on a single device.

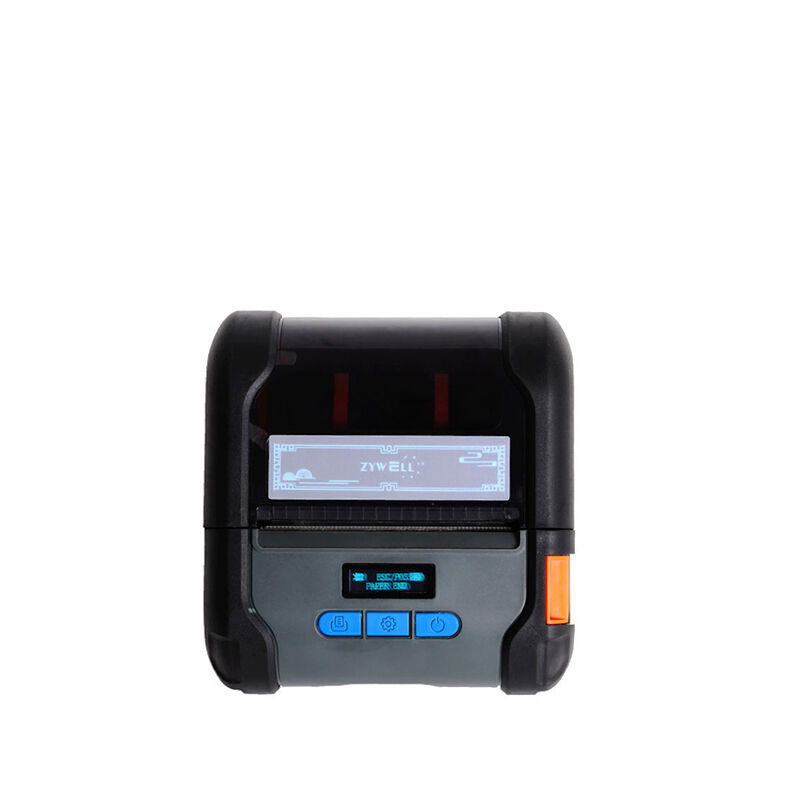

Visual Control: Equipped with an LCD screen that provides real-time status updates and simplifies device configuration.
Connectivity Options: Supports USB+Bluetooth (U+B) or USB+WiFi (U+W) interfaces for seamless wireless printing from mobile devices.

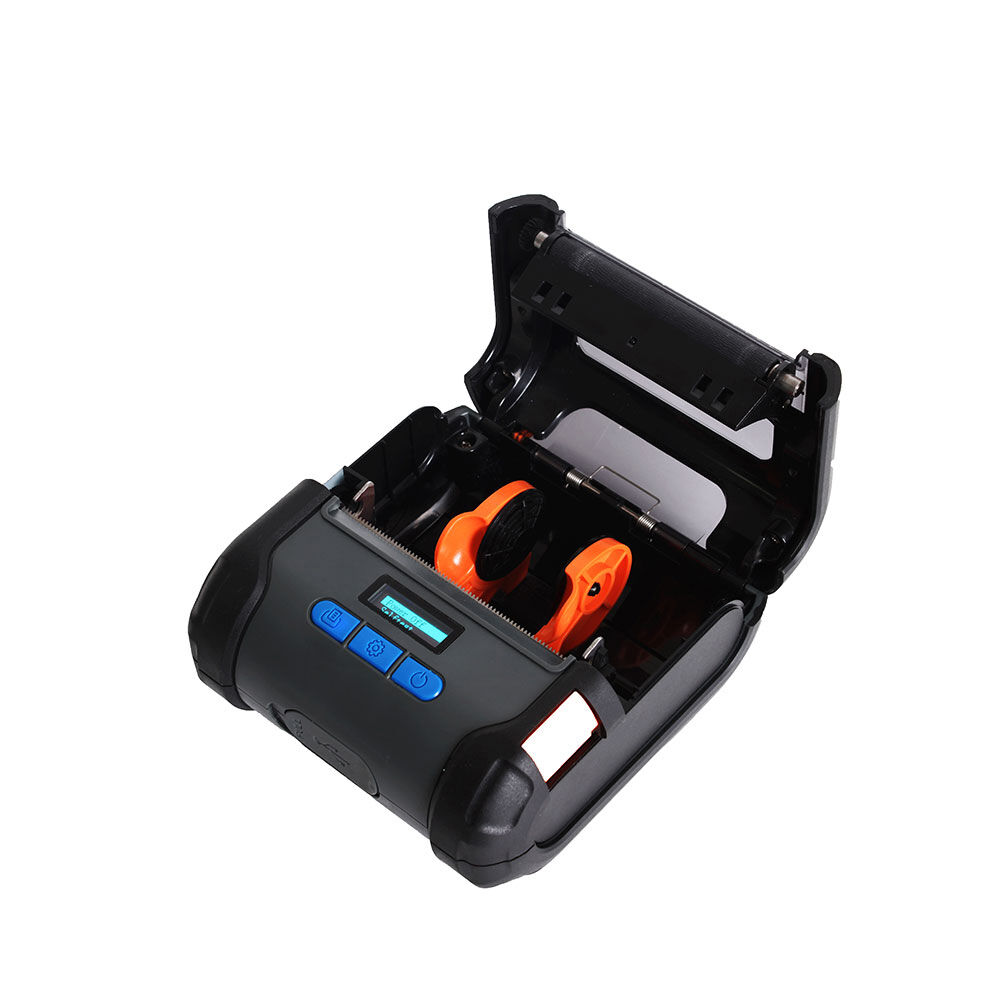

Simplified Maintenance: Designed for easy paper loading and intuitive operation, minimizing training requirements for staff.
High-Endurance Battery: Features a 2000mAh large-capacity battery for extended standby and high-volume daily use.
Unified Interface: Utilizes a Type-C port for both high-speed charging and data communication, compatible with modern mobile infrastructure.

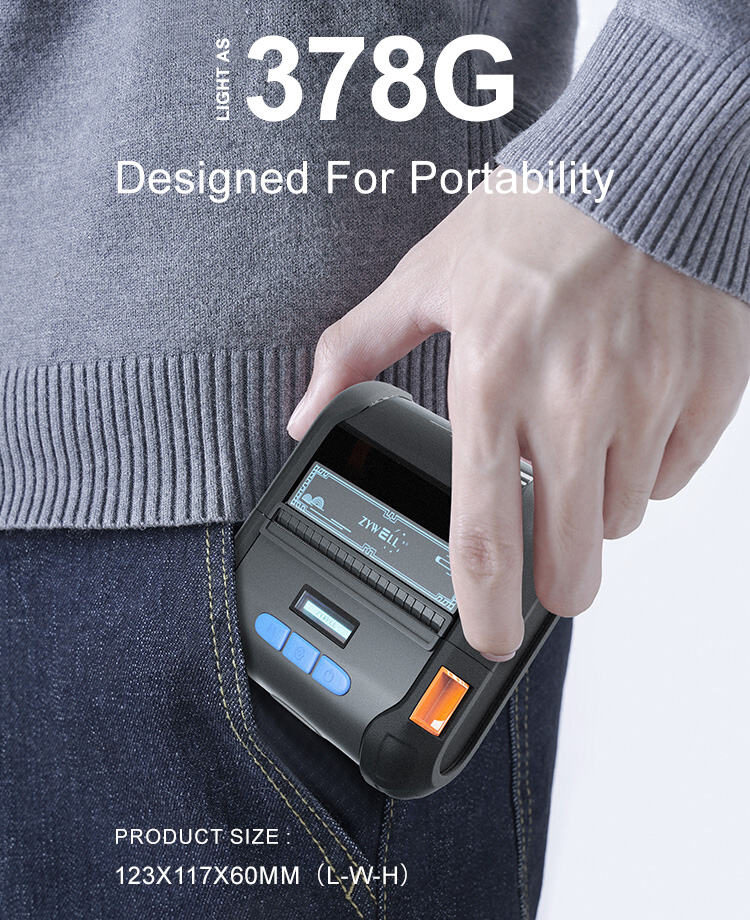

Ultra-Portable Footprint: Lightweight and compact design allows the device to be carried in a small backpack or clipped to a belt for on-the-go applications.
- Overview
- Parameter
- Product Details
- Recommended Products
ZM04: High-Speed 3-Inch Portable Label & Receipt Printer
Reliable Performance in a Pocket-Sized Design
High-Speed Mobility: Despite its compact 115mm x 110mm footprint, the ZM04 delivers an impressive print speed of 100mm/s, significantly faster than standard portable units.
Dual-Mode Capability: A versatile 2-in-1 solution that handles both thermal labels and receipts, making it an ideal investment for retail, logistics, and field service operations.
Industrial Durability: Featuring a print head rated for 50KM, the ZM04 is built for long-term consistency, providing sharp 203 DPI resolution for barcodes and text without the need for ink or toner.
Seamless Integration: Fully compatible with Android and iOS via USB, Bluetooth, or WiFi. It supports standard ESC/POS commands, ensuring easy setup with existing POS systems and mobile apps.
User-Friendly Operation: Features an easy paper-loading mechanism and an LCD screen for real-time status monitoring, powered by a 2000mAh battery for all-day performance.
| Item | Specification |
|---|---|
| Model | ZM04 |
| Print Method | Direct Thermal |
| Resolution | 203 dots/line |
| Printing Width | 72mm (default) |
| Memory | Input buffer: 256k bytes, NV Flash: 4M |
| Paper separator (option) | 48mm/52mm/56mm/64mm/68mm/76mm/80mm |
| Interface | USB+Bluetooth/USB+Wifi/USB+Bluetooth+Wifi |
| Print Speed | 100mm/s (Max) |
| Fonts | |
| Font A | 12×24 |
| Font B | 9×17 |
| Chinese | GB18030, BIG5 24×24dots |
| Japanese/Korean | Optional |
| User-defined | Support |
| Barcode | |
| 1D | UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8), CODE39/ITF/CODABAR/CODE93/CODE128 |
| 2D | QR code/PDF417 |
| Detection | |
| Sensors | Paper out detector, black mark detector |
| Power Supply | |
| Battery | 7.4V rechargeable Li-ion battery, 2000mAh |
| Input | AC 100V-240V 50/60Hz |
| Output | DC 5V, 1A |
| Paper | |
| Paper Type | Receipt Paper/Label Paper/DT Linerless labels |
| Paper Width | 30mm~80mm (including backing paper) |
| Paper Thickness | 0.053~0.15mm |

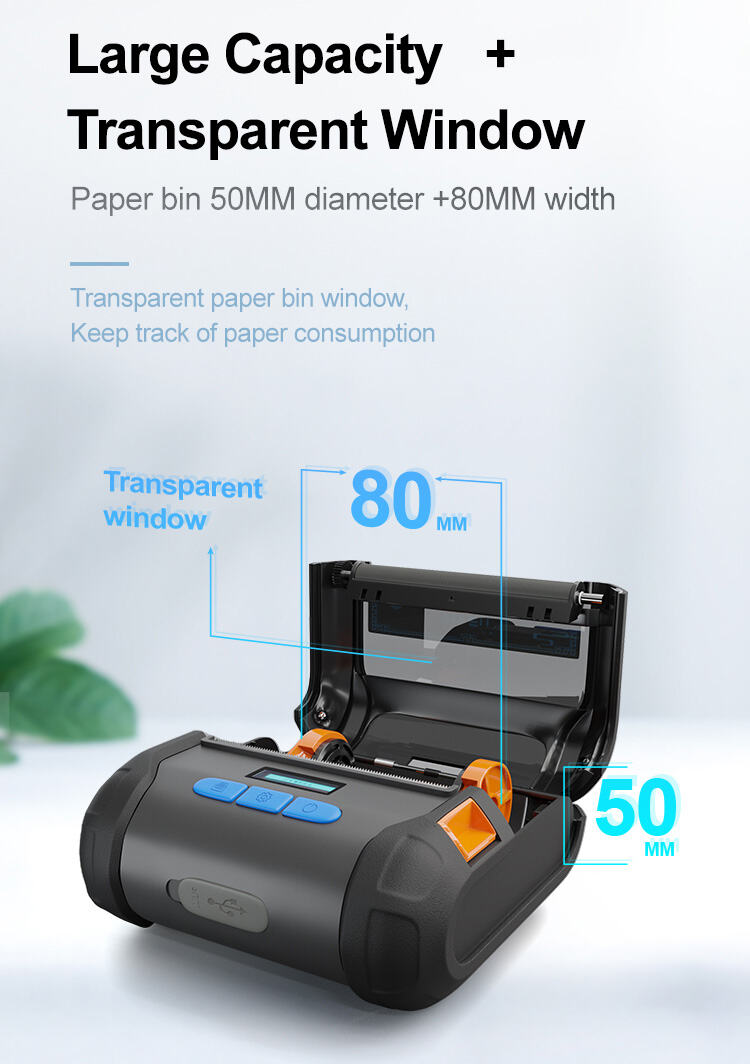

| Roll Dia | Max. Φ45 mm |
| Paper Load | Easy paper loading |
| Paper Cut | Manual tear |
| Physical Characteristics | |
| Working Condition | -10°C ~ 50°C, 10% ~ 80% R.H, no-condensing |
| Storage Condition | -20 ~ 60°C, 10 ~ 90% R.H, no-condensing |

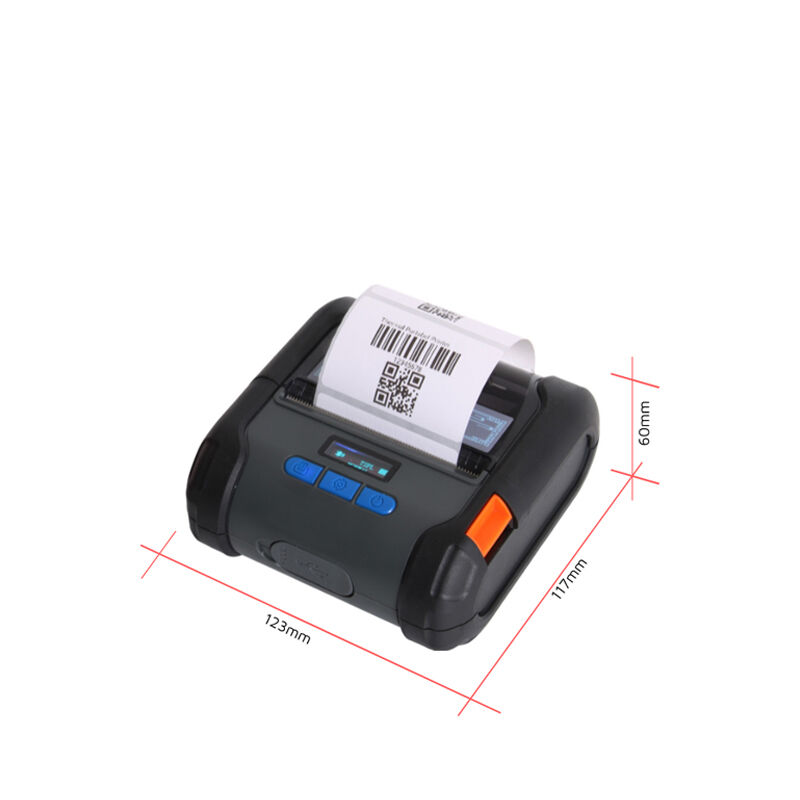

| Dimensions | 123(D)×117(W)×60(H) mm |
| Net weight | Net weight: 0.48kg, Gross weight: 0.68kg |
| Accessories | Battery, power cord, data cable, manual |
| Reliability | |
| Printing head | 50KM |
| Packing | |
| Individual box | Dimension 128×66×170mm, 1unit/carton |
| Master carton | Dimension 410×300×385mm, 20unit/carton |
| OS | |
| Emulation | TSPL, CPCL, ESC/POS |
| Driver | Windows/Linux/Mac |
| SDK | iOS/Android/Windows |
| Website | www.zywell.net / www.zywell.com |
