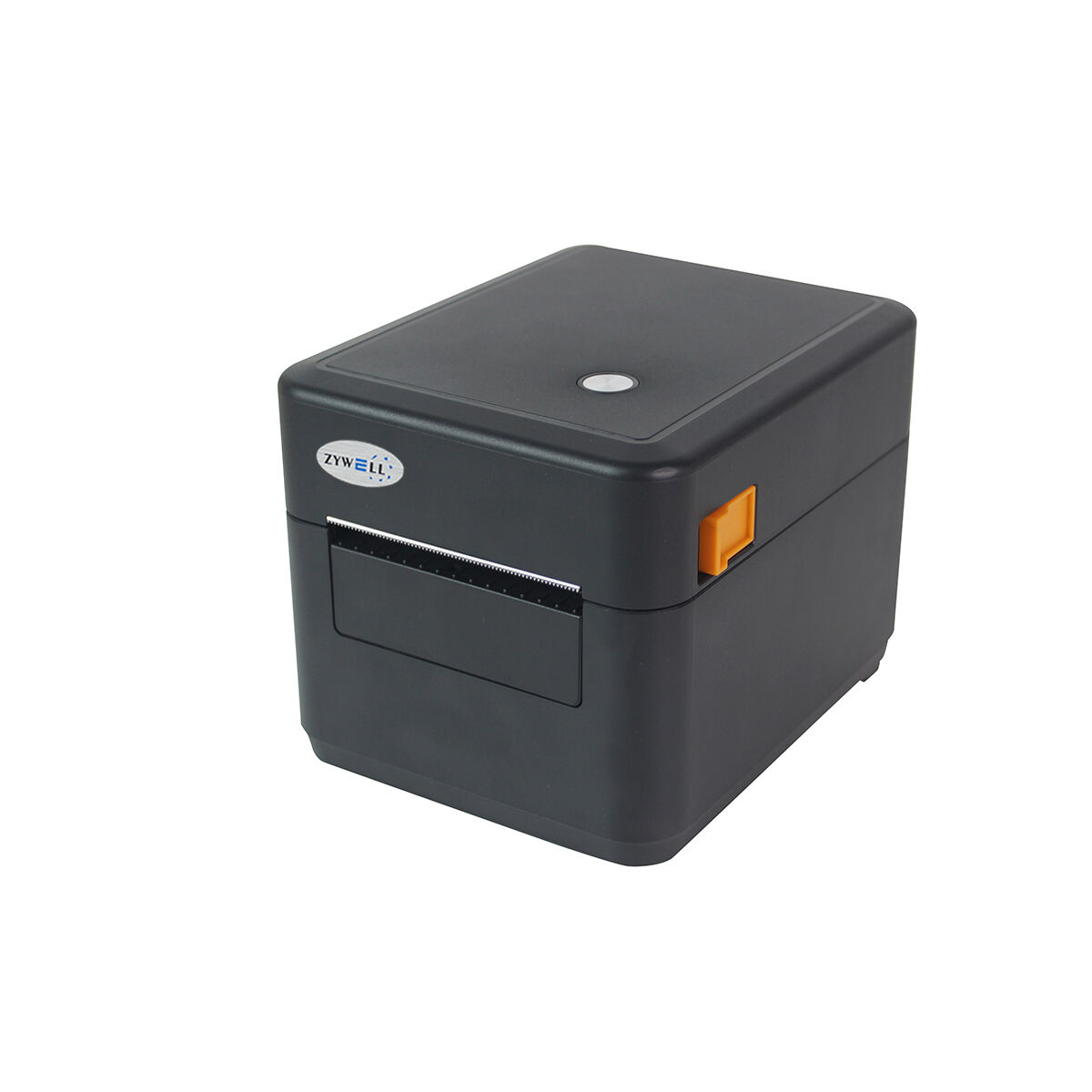

ZYWELL Zy-3608 3-inch Thermal Label Printer
Industrial-Grade Speed & Clarity：Engineered for high-volume tasks, the Zy-3608 reaches printing speeds of 152 mm/s. It delivers sharp, high-definition text and barcodes, ensuring every label is professional and readable.
Tailored for Specialized Billing：Optimized for 3-inch single-sided bills, this printer is built to meet specific industry requirements, providing a seamless fit for retail and service-oriented businesses.
Integrated Software Ecosystem：Fully compatible with ZLABEL, our professional tagging software. Access a massive library of ready-to-use templates to streamline your design process and deployment.
Smart Multi-Function Control：The intuitive one-button interface is designed to simplify complex tasks. It offers a reliable and efficient way to manage settings and resolve printing issues instantly.
- Overview
- Parameter
- Product Details
- Recommended Products
The ZYWELL Zy-3608 provides a dedicated 3-inch thermal printing solution for businesses requiring high-speed label production within a compact footprint. By prioritizing mechanical efficiency and seamless software integration, this printer removes operational bottlenecks in high-volume retail and logistics workflows.
Since every business environment has specific requirements for connectivity and label dimensions, our technical team is available to help you determine if the Zy-3608 is the right fit for your existing POS or warehouse system.
Please contact us today to confirm software compatibility with your current ERP/POS or to request a tailored price quotation for bulk and project-based orders.
| Item | Specification |
|---|---|
| Model | Zy-3608 |
| Print Method | Direct Thermal |
| Resolution | 203dpi (8dots/mm) |
| Memory | Input buffer: 2M, NV Flash: 4M |
| Interface | USB/USB+BT/USB+WIFI/USB+LAN |
| Print Speed | 50.8mm/s (Min), 152mm/s (Max) |
| Fonts | |
| Font A | 12×24 |
| Font B | 9×17 |
| Chinese | GB18030, BIG5 24×24dots |
| Japanese/Korean | Support |
| User-defined | Support |
| Graphics | |
| Character length | Font 0 ~ Font 8 |
| Expand & Rotate | Bidirectional magnification 1~10x; 0°, 90°, 270°, 360° rotation |
| Graphics process | Supports BMP/PCX/BAS files |
| Barcode | |
| 1D | CODE128, EAN128, ITF, CODE39, CODE93, EAN13, EAN13+2, EAN13+5, EAN8, EAN8+2, EAN8+5, CODABAR, POSTNET, UPC-A, UPCA+2, UPCA+5, UPC-E, UPCE+2, UPCE+5, CPOST, MSI, MSIC, PLESSEY, ITF14, EAN14 |
| 2D | PDF417/QR CODE/DATA MATRIX |
| Detection | |
| Print head temperature | Thermal sensitive resistance |
| Paper exists detection | Photoelectric sensor |
| Power Supply | |
| Input | AC 100V-240V 50/60Hz |

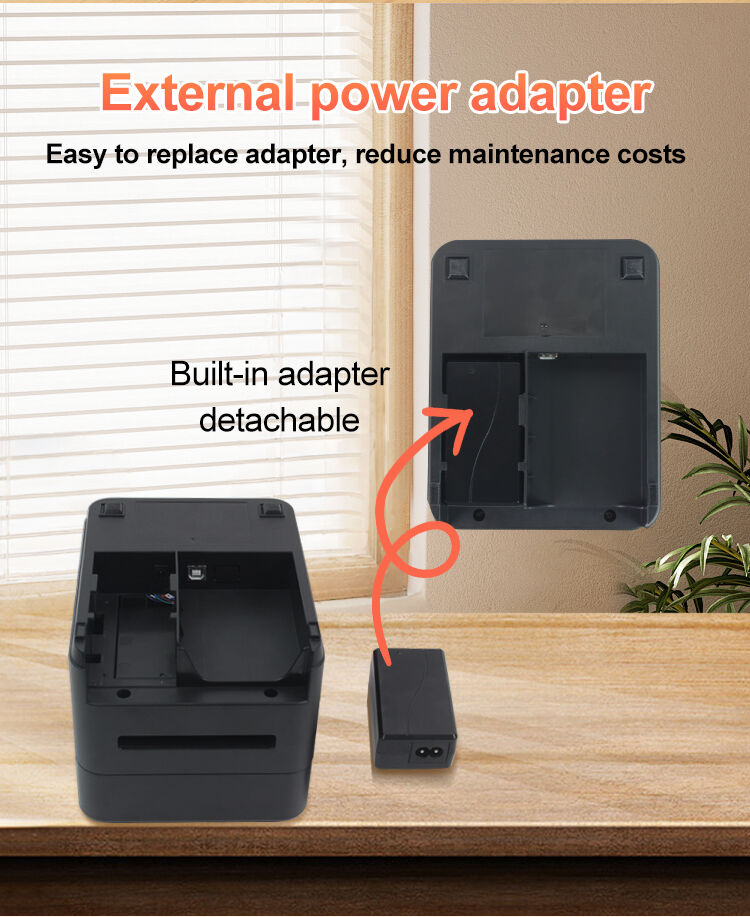

| Output | DC 24V/1.25A |
| Paper | |
| Paper Type | Thermal Receipt Paper/Thermal Label Paper |

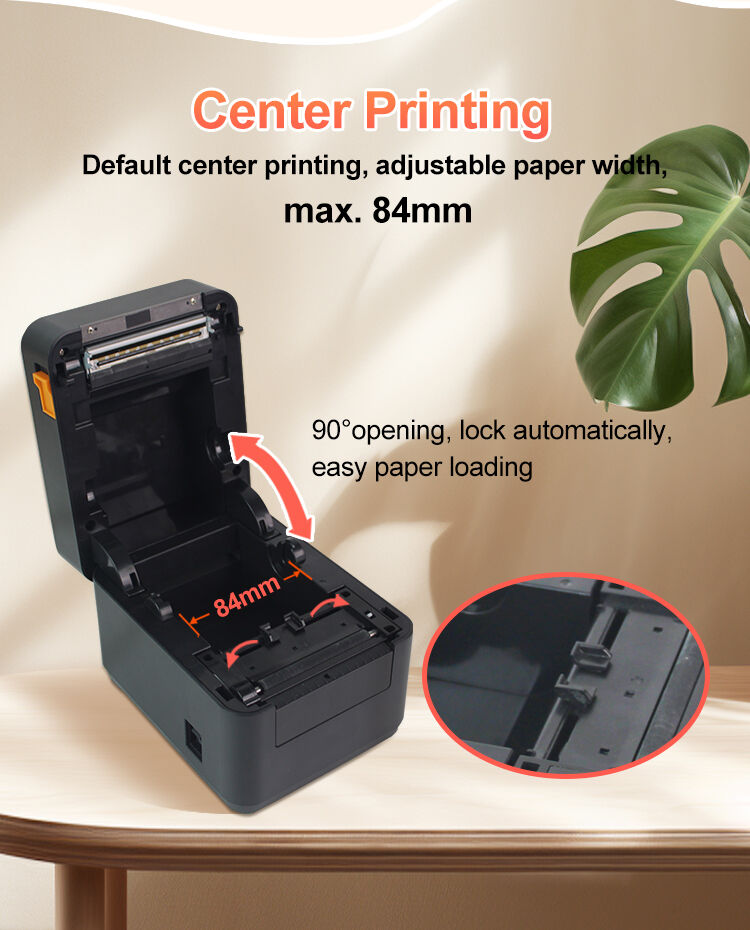

| Paper Width | 20mm-84mm |
| Paper Thickness | 0.06~0.19mm |

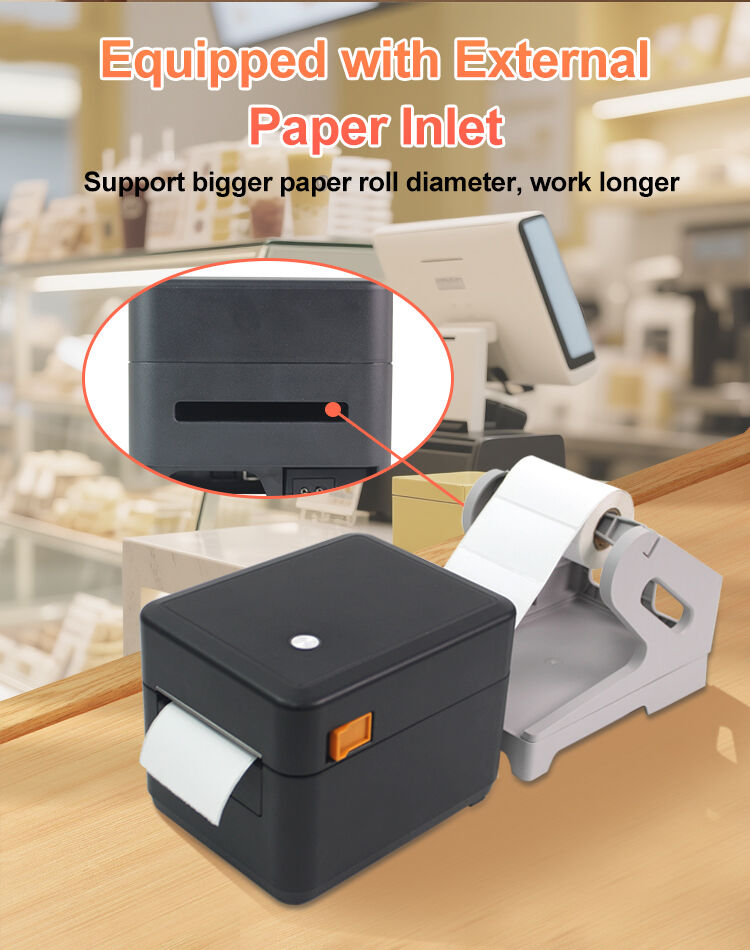

| Roll Dia | Max. Ø 90 mm |
| Roll inner Diameter | 25mm ~ 38mm |
| Paper Cut | Tear paper manually |
| Physical Characteristics | |
| Working Condition | 5℃~45℃, 20%~80%RH (No condensation) |
| Storage Condition | -40℃~55℃,≤93%RH(40℃) |
| Dimensions | 180(L)×147(W)×141(H)mm |
| Net weight | Net weight: 1.1kg, Gross weight: 1.6kg |
| Reliability | |
| Printing head | 50KM |
| Accessories | USB data cable, power cord, instruction manual, paper tray, roller |
| Packing | |
| Individual box | Dimension 246×165×150mm (L×W×H), 1unit/carton |
| Master carton | Dimension 520×370×505mm (L×W×H), 12unit/carton |
| OS | |

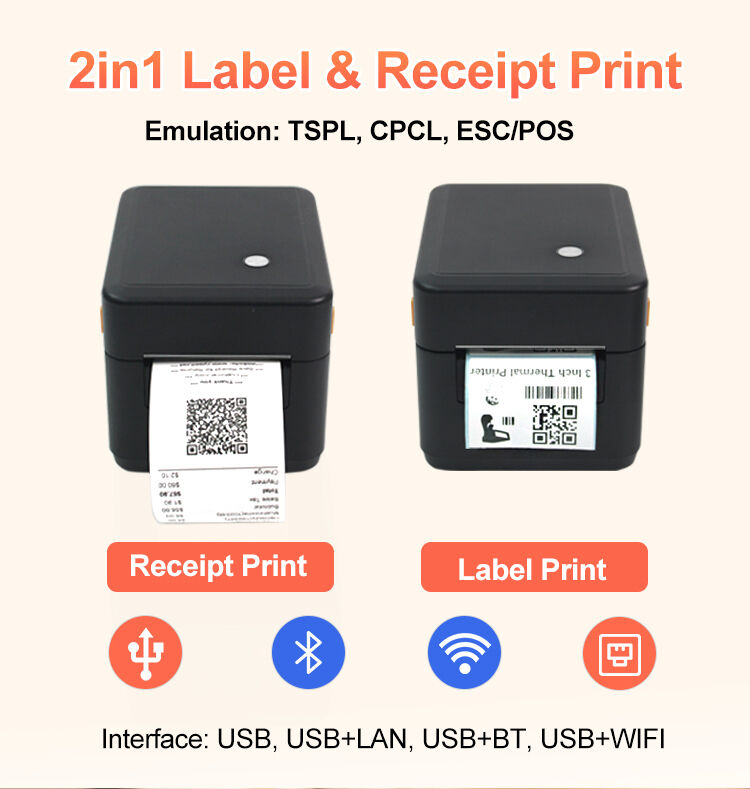

| Emulation | TSPL (Label mode)/ESC/POS (Receipt mode) |
| Driver | Windows/Linux/Mac |
| SDK | Android/iOS/Windows |
