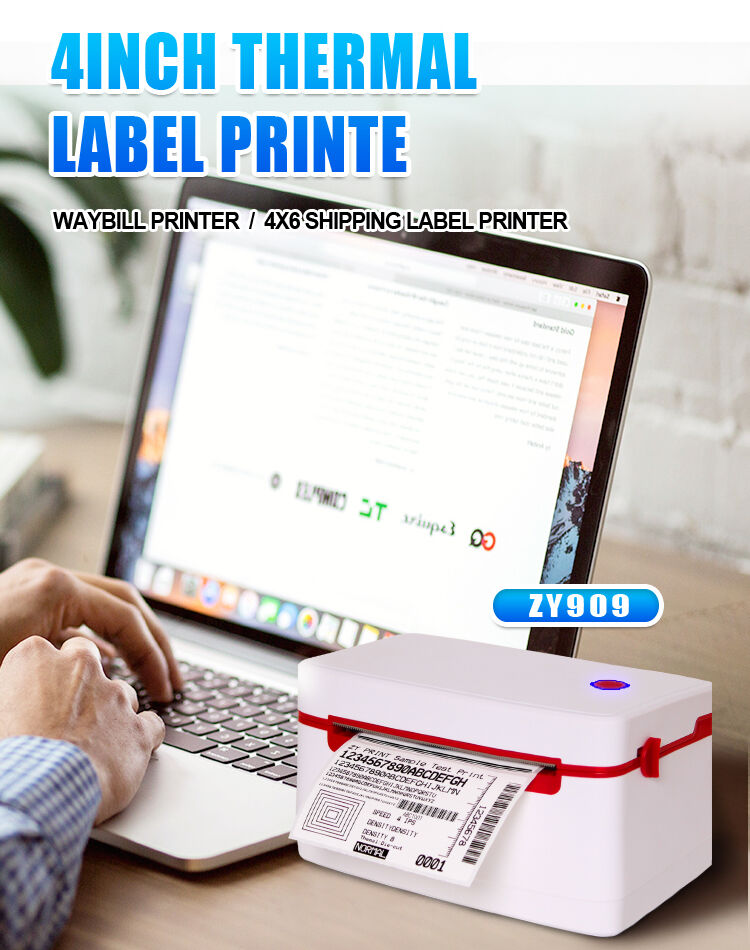

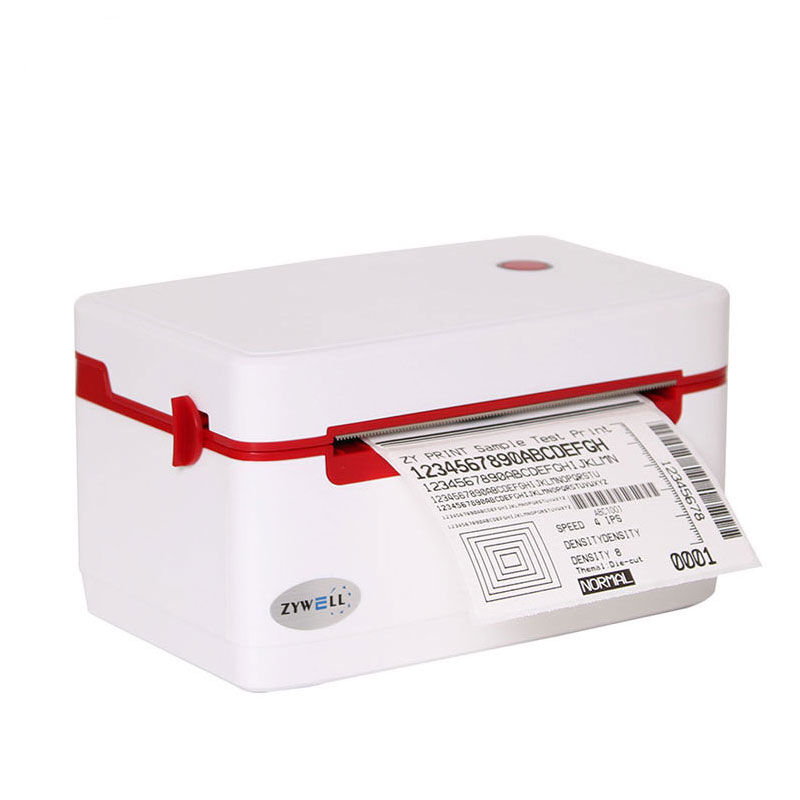

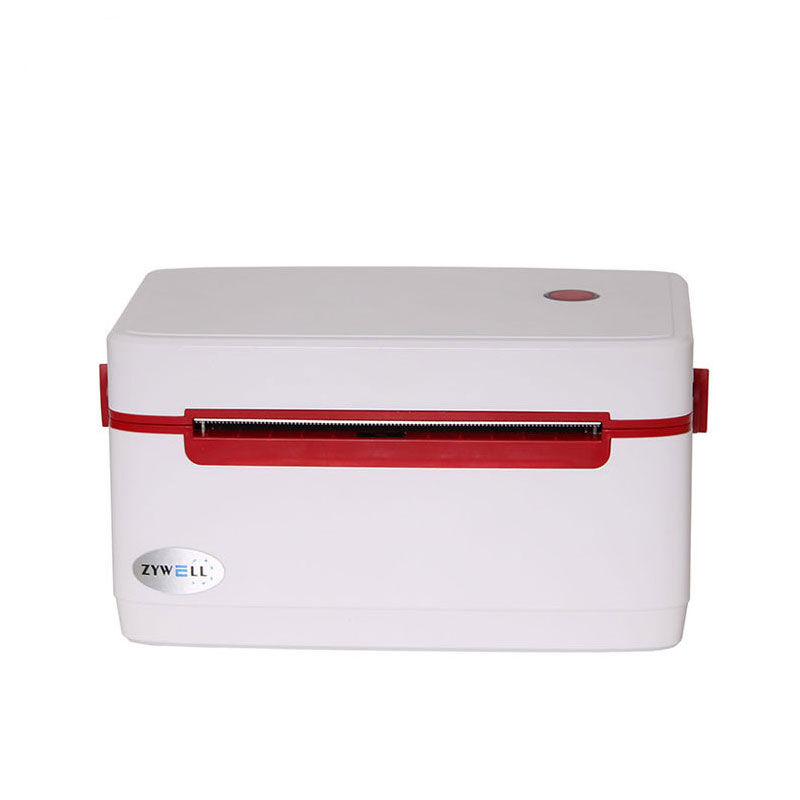

ZYWELL Zy-909 4 X 6 Shipping Label Printer

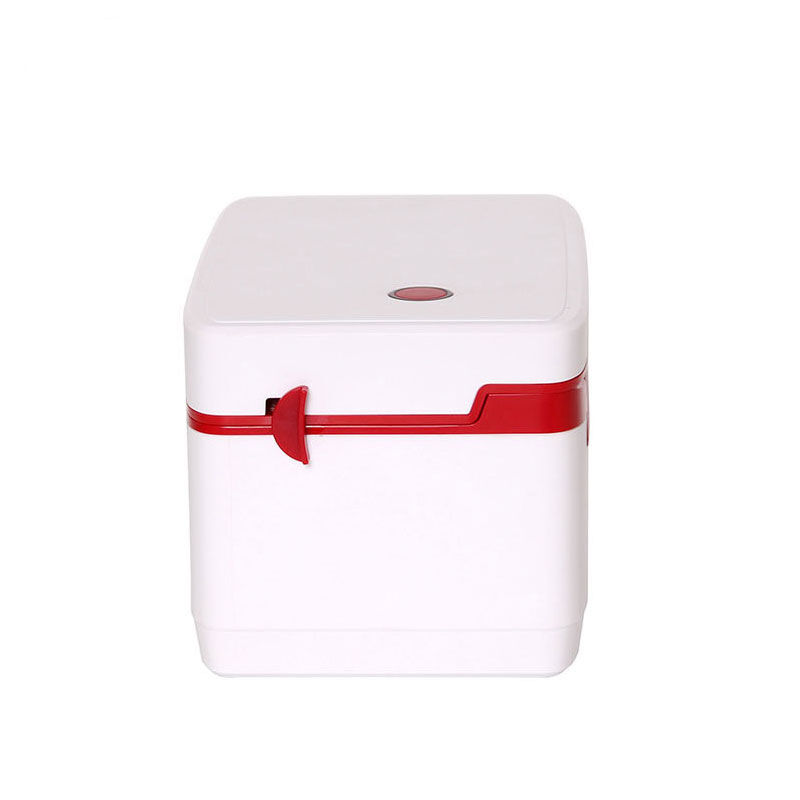

- Modern "Lunch Box" Aesthetic: Features a unique, minimalist design that is both fashionable and professional, fitting seamlessly into modern office or retail environments.
- Bin-less Compact Structure: The "no paper storage" design significantly reduces the machine's footprint. It supports external large paper roll stands, allowing you to handle industrial-sized volumes without occupying excessive counter space.
- Rapid Output: Supports direct thermal printing at speeds up to 152mm/s, ensuring fast response times for high-volume shipping tasks.

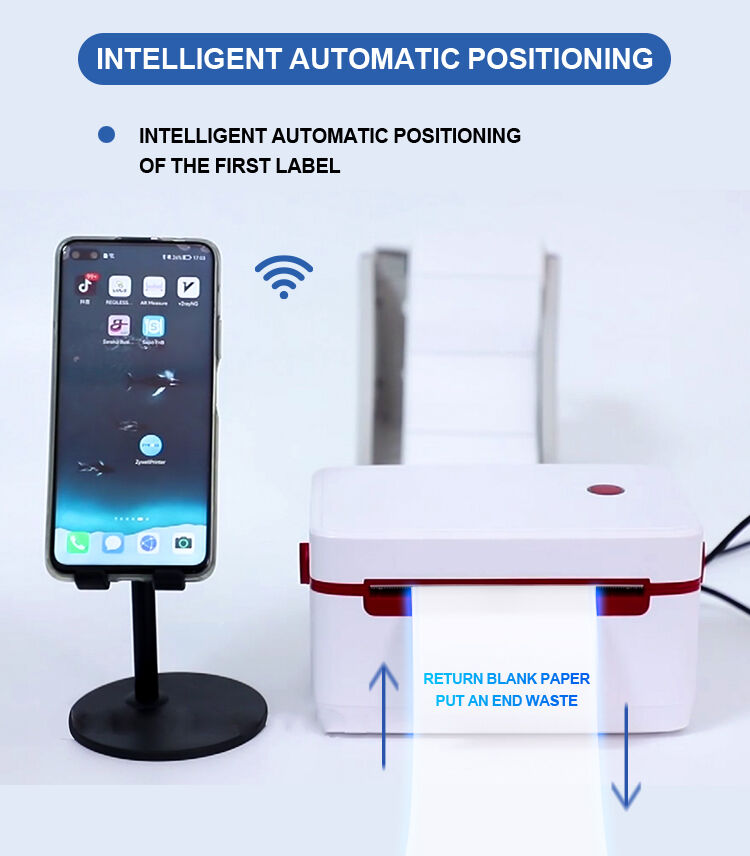

- Smart Auto-Calibration: Features automatic induction and positioning tests, which intelligently calibrate the first label to ensure precision and prevent paper waste.

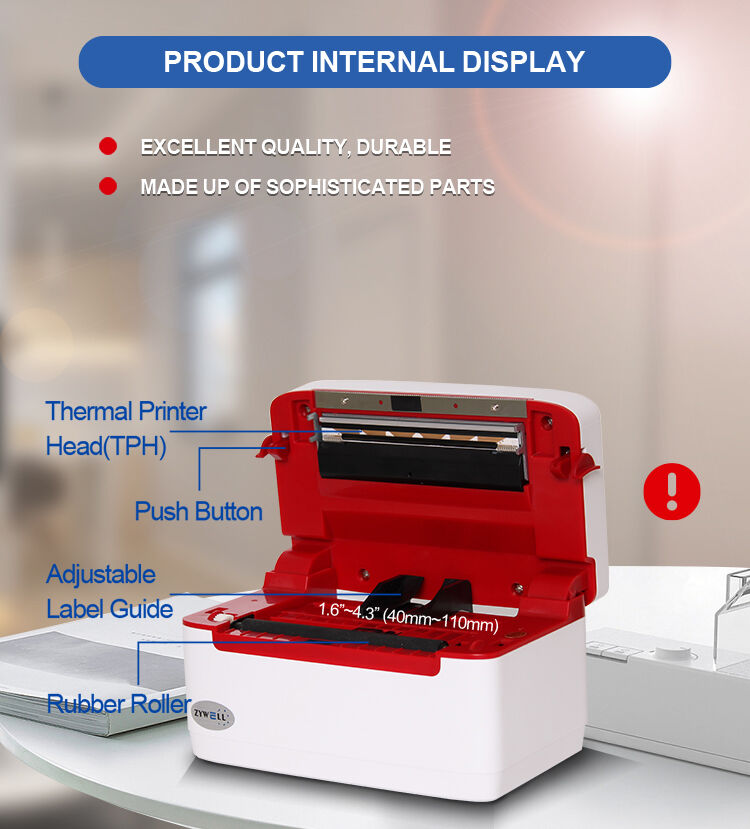

- Wide Format Support: Highly versatile, supporting label widths from 25.2mm to 110mm, compatible with a wide variety of 1D barcodes and 2D QR codes.
- Cross-Platform Integration: Seamlessly works with smartphones via wireless connectivity (iOS/Android) and traditional Windows systems via USB.

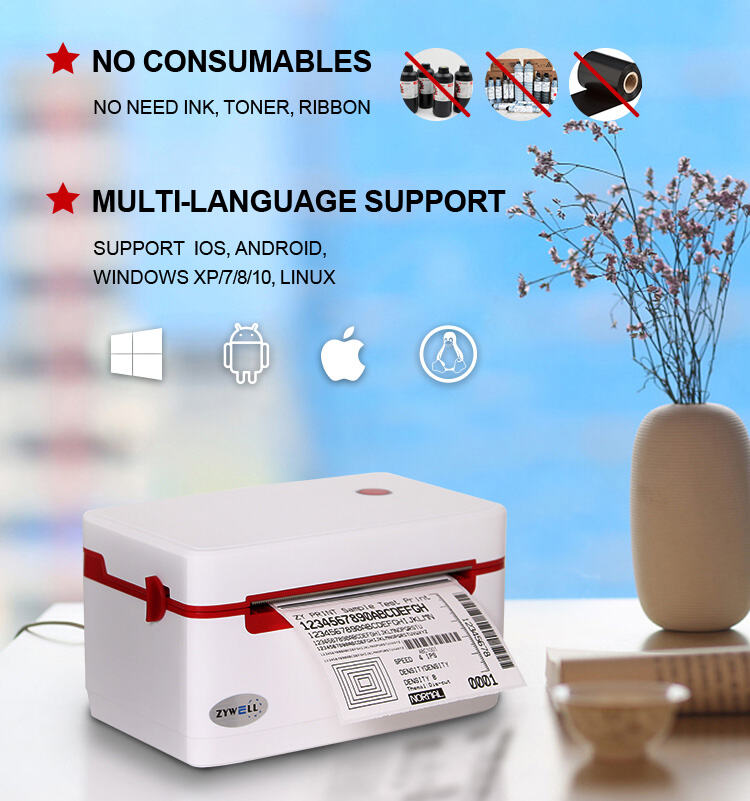

- Zero-Consumable Technology: A highly economical solution that is ribbon-free, ink-free, and toner-free, drastically reducing your operational overhead and environmental impact.
- Overview
- Parameter
- Product Details
- Recommended Products
The ZYWELL 4x6 Wireless Label Printer is the ultimate tool for modern e-commerce merchants. Designed to accelerate your order fulfillment, this printer combines industrial-grade speed with effortless wireless operation to ensure your packages get out the door faster and more accurately.
| Model | Zy909 |
| Print Method | Direct Thermal |
| Resolution | 203dpi(8dots/mm) |
| Printing Width | 108mm |
| Interface | USB/USB+LAN/USB+BLUETOOTH/USB+WIFI |
| Print Speed | 152mm/s (6"//s) Max. |
| Fonts | |
| Font A | 12x24 |
| Font B | 9x17 |
| Chinese | GB18030, BIG5 24x24dots |
| Japanese/Korea | Optional |
| Internal fonts | 8 alpha-numeric bitmap fonts; Windows fonts are downloadable from software |
| Barcode | |
| 1D | Code 39, Code 93, Code 128UCC, Code 128 subsets A,B,C, Codabar, Interleaved 2 of 5, EAN-8,EAN-13,EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on,MSI, PLESSEY, POSTNET, China POST |
| 2D | PDF-417, Maxicode, DataMatrix, QR code |
| Power Supply | |
| Input | AC 100V-240V 50/60HZ |
| Output | DC 24V/2.5A |
| Detection | |
| Sensors | Thermal sensitive resistance |
| Paper exists detection | Photoelectric sensor |
| Paper | |
| Paper Type | Thermal Label Paper |
| Paper Width | 118mm |
| Paper Thickness | 0.25mm |
| Paper Load | Easy paper loading |
| Paper Cut | Tear off |
| Physical Characteristics | |
| Working Condition | 5-40℃(41-104℉)Humidity:25-85% non-condensing |
| Storage Condition | -40-60℃(4-140℉)Humidity:10-90% non-condensing |

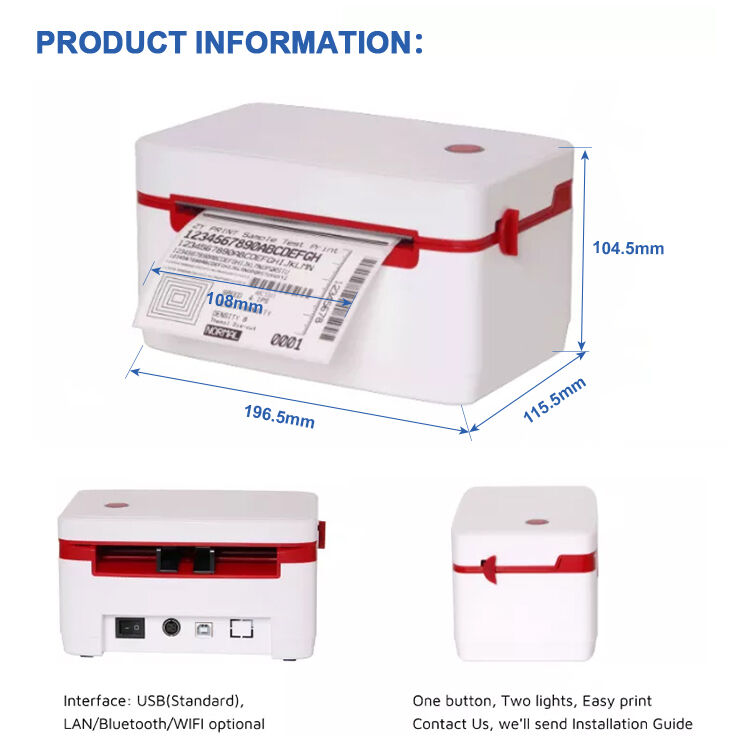

| Dimensions | 196.5(D)x115(W)x104.5(H)mm |
| Net weight | 1.15kg |
| Performance Features | |
| Processor | 32-bit CPU |
| Memory | 8MB Flash Memory / 8MB SDRAM |
| Reliability | |
| Warranty | 12 months |
| Printing head | 50KM |

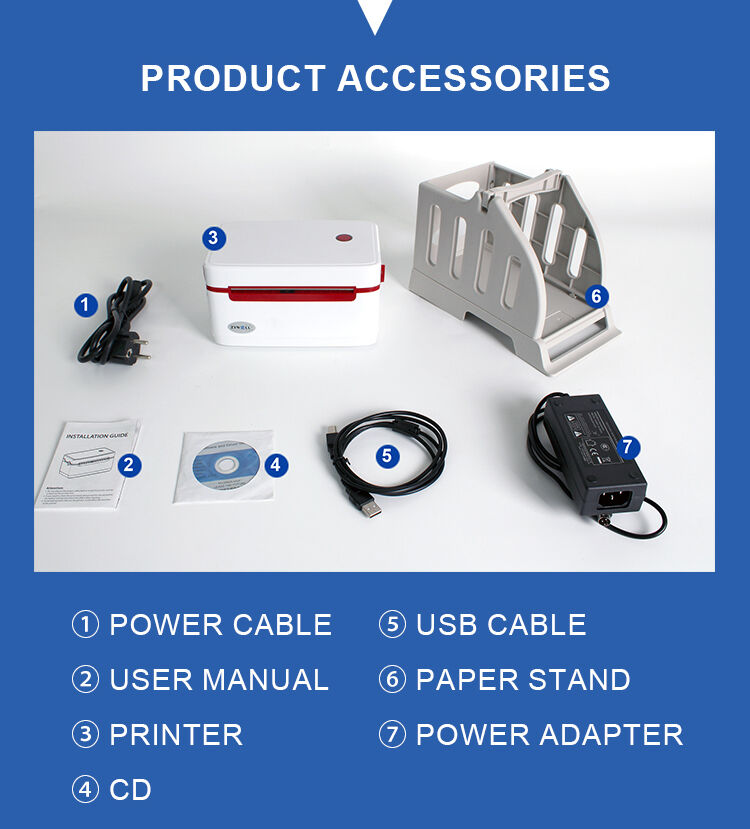

| Accessories | |
| Accessories | Data cable, power adapter, power cord, manual, CD |
| Packing | |
| Individual box | Dimension 286×164×160mm(L×W×H) 1unit/carton |
| Master carton | Dimension 615×370×535mm(L×W×H) 6unit/carton |
| OS | |
| Emulation | TSPL/CPCL/ESC/POS |
| Driver | Windows/Linux/Mac |
| SDK | Windows/Android/iOS |
