ZYWELL Zy-310 Wireless Bluetooth Thermal Label Printer
- Superior Service Life: Equipped with an imported ROHM thermal sensitive film print head with a 150KM lifespan and a cutter rated for 1.5 million cuts.
- Intelligent Protection: Features a self-controlling temperature print head to ensure stability during high-volume tasks.
- Rugged Construction: The device body is engineered to be wear-resistant, waterproof, dirt-proof, and oil-proof, making it suitable for harsh industrial or kitchen environments.
- Crystal Clear Resolution: 203dpi resolution ensures accurate printing of complex barcodes including PDF417, QR CODE, and Data Matrix.
- Dual-Mode Functionality: Seamlessly switch between thermal receipt and label/waybill printing on a single device.
- Flexible Media Support: Supports adjustable label widths from 20mm to 82mm and accommodates large paper rolls with an outer diameter of up to 82mm.
- Space-Saving Setup: Features a built-in power adapter for a clean, compact desktop footprint.
- Future-Proof Maintenance: Supports one-click firmware updates to keep the device current with the latest features.
- Mobile-Ready: Offers worry-free connection and printing directly from mobile phones.
- Developer Friendly: Full SDK support for Android and iOS platforms, ensuring easy integration into custom business applications.
- Overview
- Parameter
- Product Details
- Recommended Products

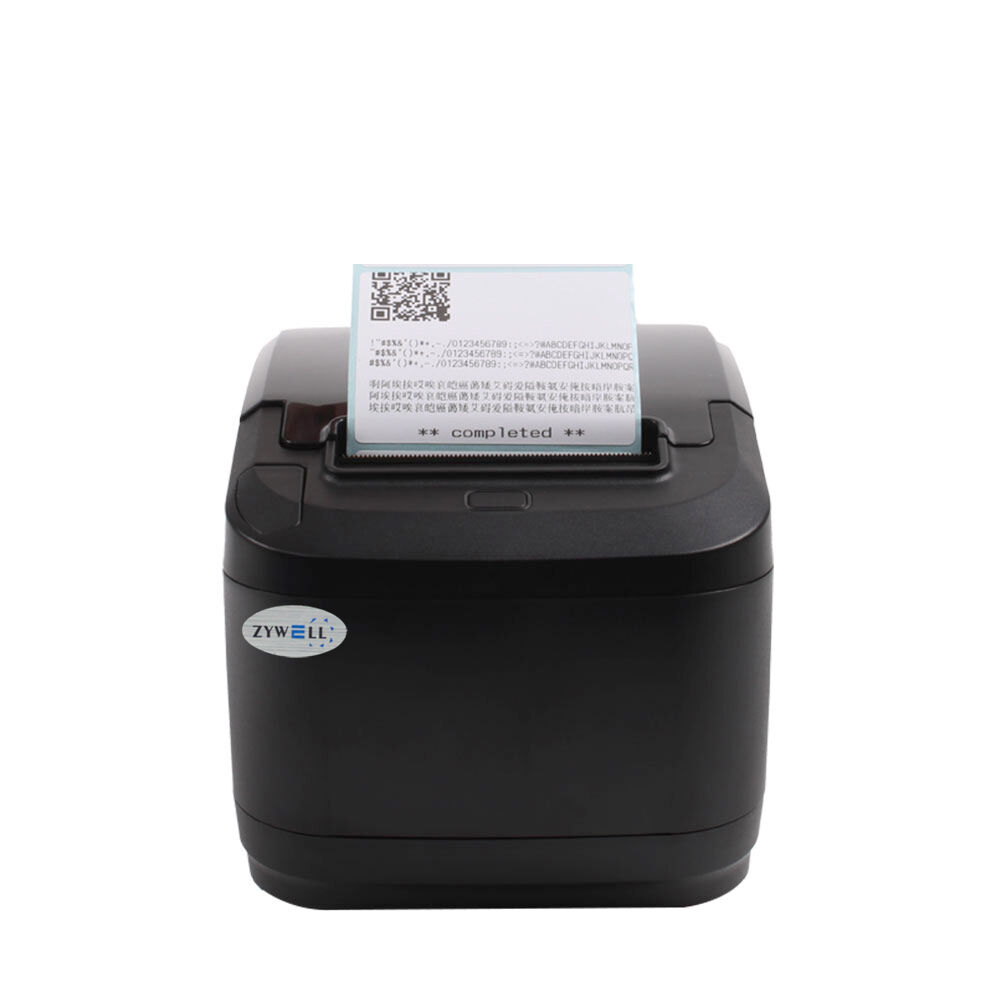

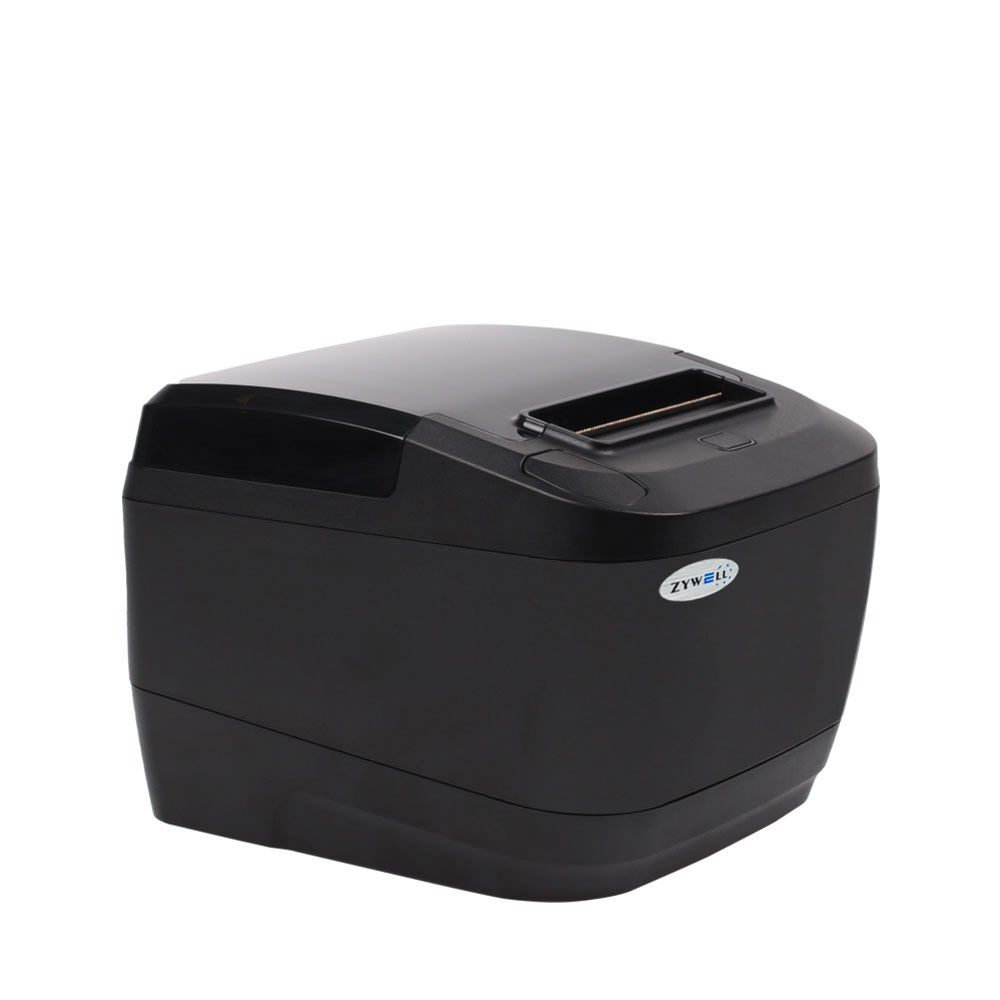

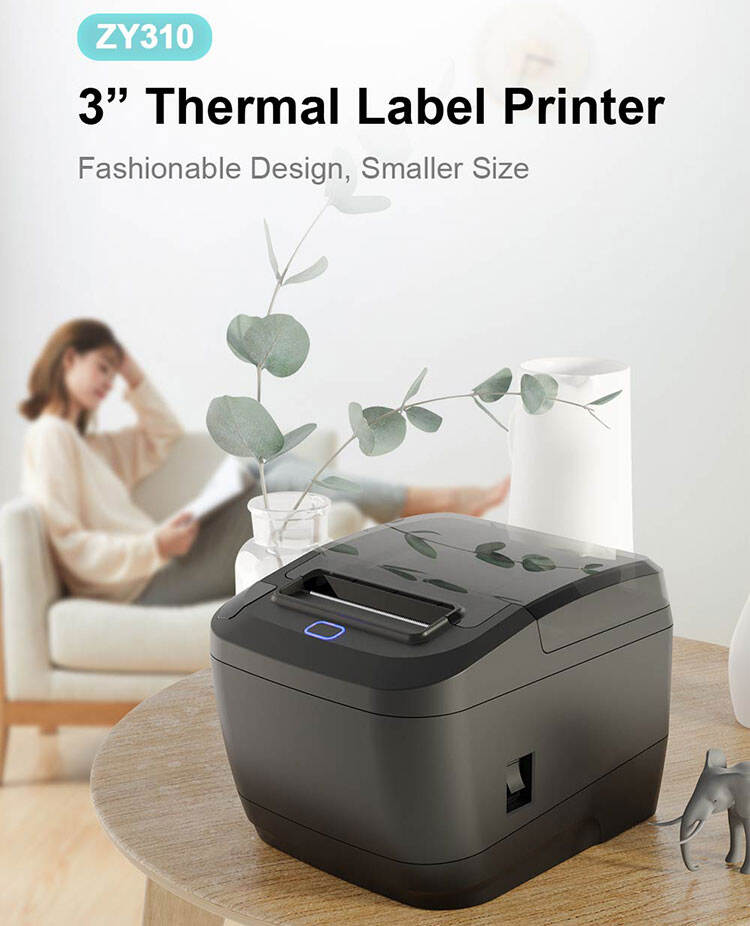

Zy-310 3-inch dual-function thermal printer
Core value: "Low maintenance" printing hub designed for high-intensity operations
Extremely durable: Equipped with imported 150km ultra-long-life print head and 1.5 million times lifespan cutting blade. Compared to conventional models, its durability has been significantly enhanced, greatly reducing the costs of equipment replacement and maintenance during long-term high-load operation.
Space optimization design: The built-in power supply is adopted, resulting in a compact and dust-proof, oil-resistant机身 structure. While saving desk space, it effectively reduces cable clutter and is suitable for complex environments such as warehouses, kitchens, and retail cash registers.
High-efficiency all-round output: Supports 152mm/s high-speed printing and is compatible with width adjustment ranging from 20mm to 82mm. Whether it's logistics labels, product tags, or cashier receipts, all can be completed by switching between dual modes on one machine.
Intelligent integration solution: No color paper required, no toner consumables needed. Supports deep integration with iOS/Android SDK and direct printing from mobile devices. Combined with the one-click firmware update function, ensures the system is always in the latest and stable state.
Recommended scenario: Suitable for high-frequency printing environments that prioritize "zero-cost maintenance", such as chain logistics, supermarket back offices, and pharmaceutical label management.
| Model | Zy310 |
| Print Method | Direct Thermal |
| Resolution | 203dpi(8dots/mm) |
| Memory | Input buffer: 2M; NV Flash: 4M |
| Interface | USB/USB+BLUETOOTH/USB+WIFI |
| Print Speed | 50.8mm/s(Min); 152mm/s(Max) |
| Printing Width | 72mm(default) |
| Fonts | |
| Font A | 12x24 |
| Font B | 9x17 |
| Chinese | GB18030, BIG5 24x24dots |
| Japanese/Korea | Support |
| User-defined | Support |
| Barcode | |
| 1D | CODE128/128M/EAN128/CODE39/39C/39S/CODE93/EAN13/EAN13+2/EAN13+5/AN8/EAN8+2/EAN8+5/25/25C/CODABAR/POSTNET/UPC-A/UPCA+2/UPCA+5/UPC-E/UPC-E+2/UPC-E+5/CPOST/MSI/MSIC/PLESSEY / ITF14 / EAN14 |
| 2D | PDF417/QR CODE/DATA MATRIX |
| Detection | |
| Print head temperature sensor | Thermal sensitive resistance |
| Paper exists detection | Photoelectric sensor |
| Power Supply | |
| Input | AC 100V-240V 50/60HZ |
| Output | DC 24V/2.5A |
| Paper | |
| Paper Type | Thermal Receipt Paper/Thermal Label Paper |
| Paper Width | 20mm-82mm |
| Paper Thickness | 0.06-0.19mm |
| Roll Dia | Max. Ø 90 mm |
| Diameter | 25mm-38mm |
| Paper Cut | Auto-cutter(half cut) |
| Graphic symbols | |
| Zoom in and rotate | Bidirectional magnification 1-10 times; 0°, 90°, 270°, 360° rotation |
| Graphics Processing | Support BMP/PCX/BAS files |
| Physical Characteristics | |
| Working Condition | 5℃-45℃, 20%-80%RH(No condensation) |
| Storage Condition | -40℃-55℃,≤93%RH(40℃) |
| Dimensions | 185(L)x144(W)x51.2(H)mm |
| Net weight | Net weight: 1.2kg; Gross weight: 1.7kg |
| Reliability | |
| Printing head | 50KM |
| Accessories | |
| Accessories | Data cable, power cable, CD, instruction manual, paper baffle, roller, power adapter |
| Packing | |
| Individual box | Dimension 286×164×160mm(L×W×H) 1unit/carton |
| Master carton | Dimension 615×370×535mm(L×W×H) 12unit/carton |
| OS | |
| Emulation | TSPL(Lable mode)/ESC/POS(Receipt mode) |
| Driver | Windows/Linux/Mac |
| SDK | Android/iOS/Windows |
| Website | www.zywell.net/www.zywell.com |
