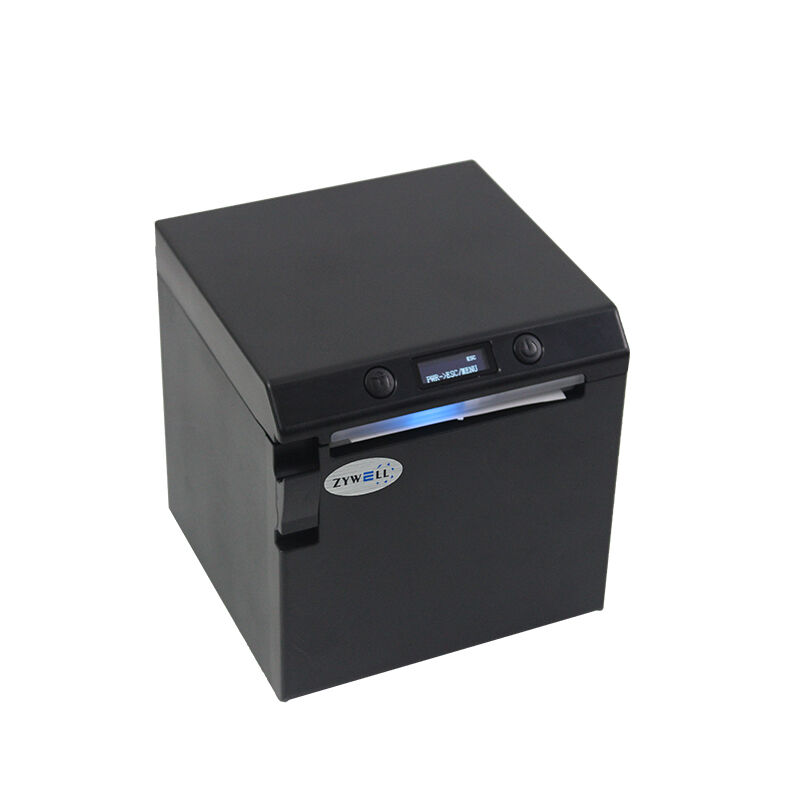

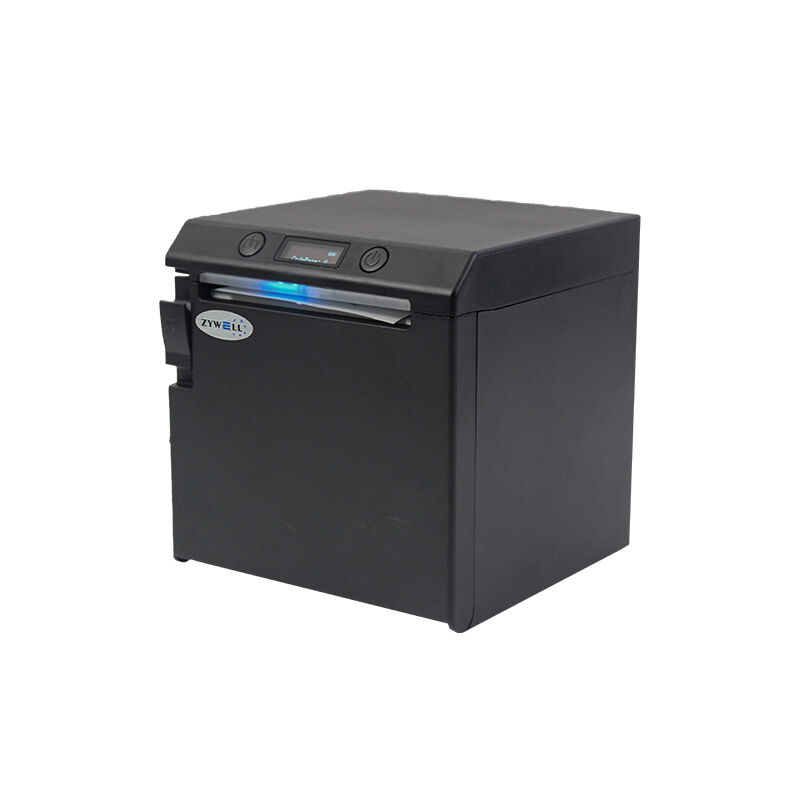

ZYWELL Zy-H862 Thermal Receipt Printer With Visual LED Display Light
- Modern Aesthetics: Features a stylish, contemporary industrial design that seamlessly integrates into upscale retail or hospitality environments.
- Space-Efficient Footprint: The compact and streamlined chassis is specifically engineered to maximize valuable counter space.
- Ultra-Fast Printing: Delivers industry-leading speeds of up to 350mm/s, significantly reducing transaction times and improving customer flow.
- High Memory Capacity: Built-in 8MB memory ensures stable data processing and prevents loss of information during high-volume print tasks.

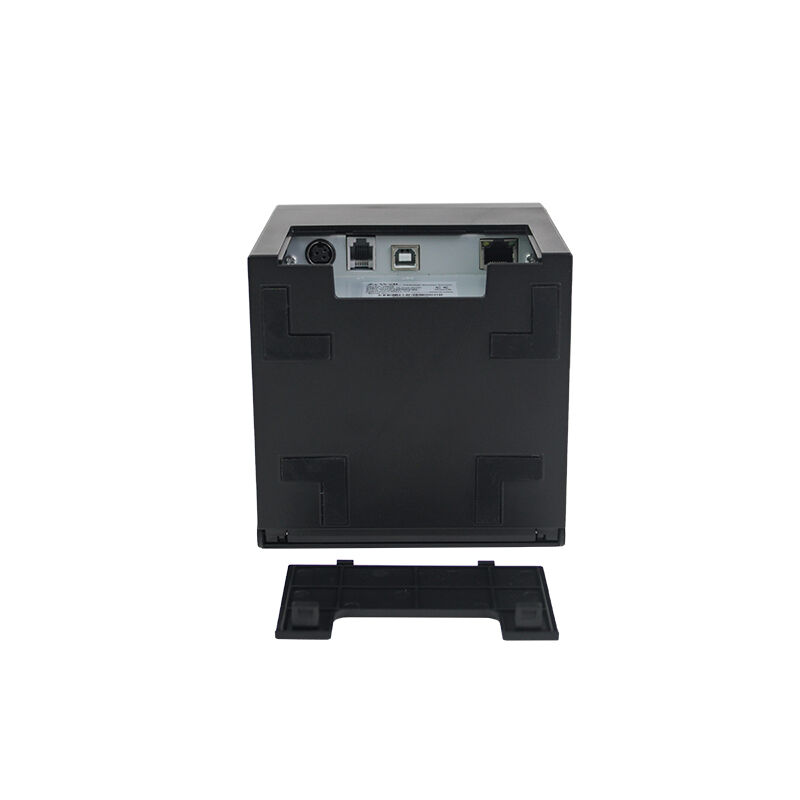

- Versatile Interface Options: Fully equipped with USB, Ethernet, Bluetooth, and Wi-Fi, providing the flexibility to operate in any wired or wireless network infrastructure.

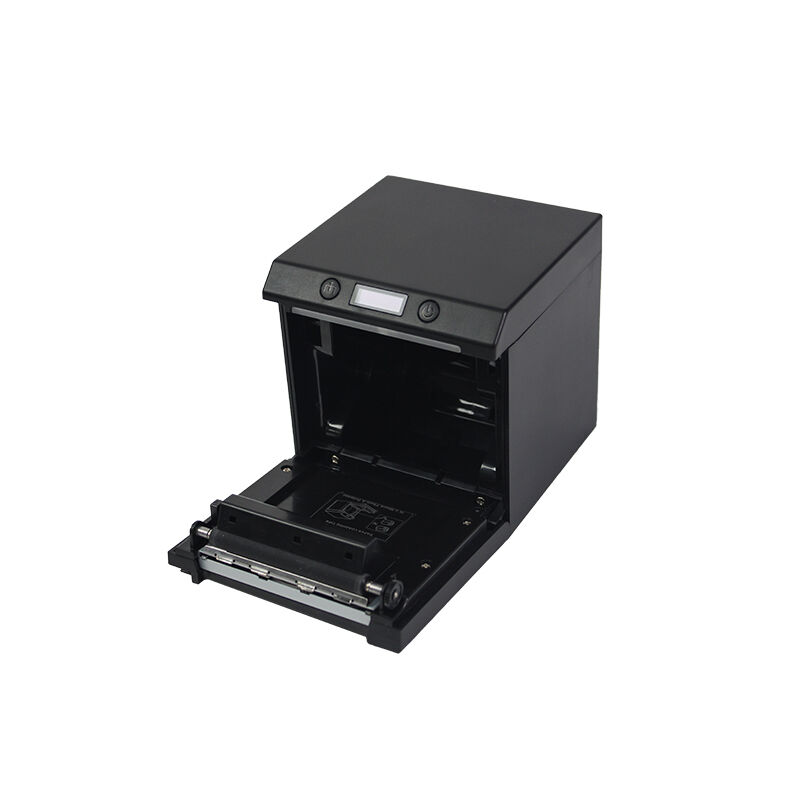

- Front-Loading/Dispensing: Designed with a front-type paper loading and output mechanism, making it ideal for under-counter placement or tight shelving.
- Intuitive Visual Feedback: Integrated LED display lights provide real-time status updates, offering instant visual prompts for power supply, error reports, and paper shortages.
- Overview
- Parameter
- Product Details
- Recommended Products
Zy-H862 80mm Thermal Receipt Printer
The Zy-H862 is a high-speed, dual-color thermal receipt printer designed for efficiency, creativity, and ease of use-perfect for retail stores, supermarkets, restaurants, and more.

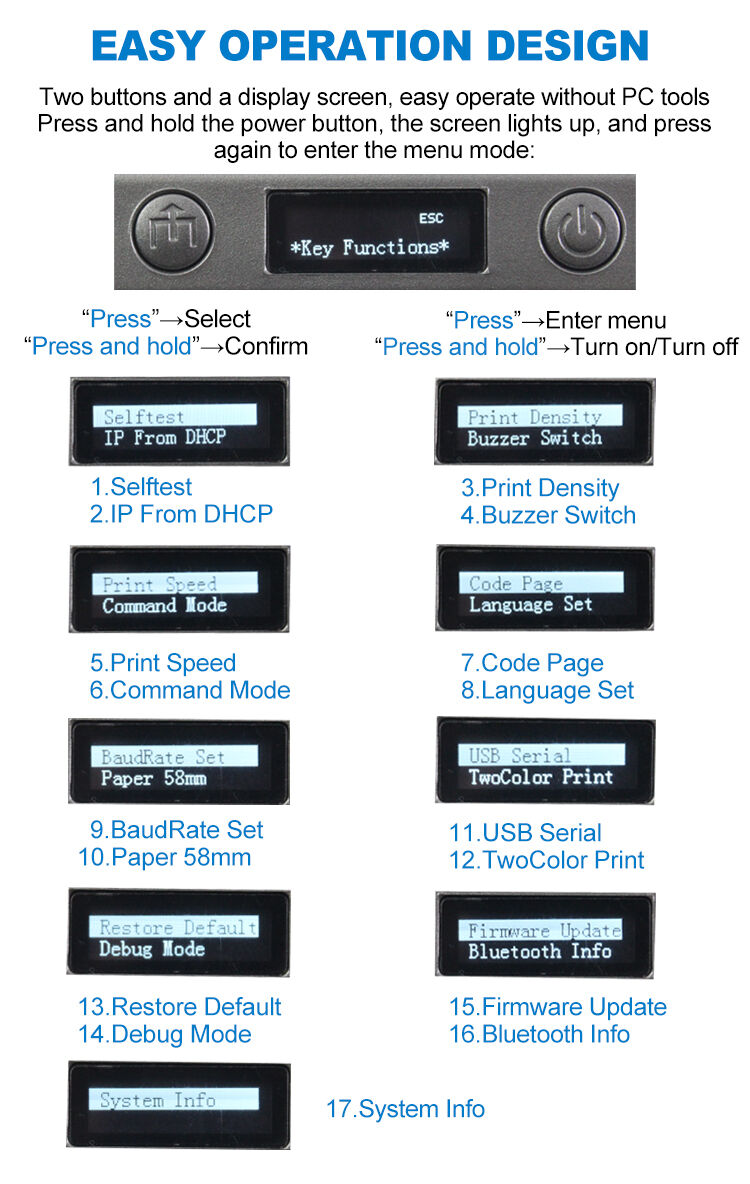

Simple Two-Button Control
Operate easily with a clear display screen. No extra PC tools are required-press and hold the power button to light up the screen, then press again to enter menu mode.
Dual-Color Printing
Print two colors on a single receipt for creative, eye-catching designs.
Includes free ZYWELL TwoColor Printer Driver V8.11 and supports ZYWELL red/blue/orange + black paper rolls.
Flexible Paper Output
Choose forward or upward paper output-take receipts the way you prefer.
Large Paper Capacity
Supports 58mm & 80mm paper width with a large Ø82mm paper bin, reducing roll
| Model | Zy-H862 |
| Print Method | Direct Thermal |
| Resolution | 203dpi |
| Printing Width | 80mm(MAX)/72mm(default) |
| Paper separator (option) | 58mm(57.5±0.5mm)/80mm(79.5±0.5mm) |
| Memory | Input buffer: 8M; NV Flash: 256kbytes |
| Interface | USB+LAN+SERIAL/USB+LAN+SERIAL+BT/USB+LAN+SERIAL+WIFI |
| Print Speed | 350mm/s (Max) |
| Discharge direction | "Top paper" and "Front paper" can be adjusted in both directions |
| Fonts | |
| Font A | 12x24 |
| Font B | 9x17 |
| Chinese | GB18030, BIG5 24x24dots |
| Japanese/Korea | Japanese JIS, Korean KSC5601 |
| User-defined | Support |
| Character Size (mm) | Font A:1.5x3.0mm; Font B:1x2.1mm; Simple/Traditional:3.0x3.0mm |
| Barcode | |
| 1D | UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)/CODE39/ITF/CODABAR/CODE93/CODE128 |
| 2D | QR code, PDF417 |
| Detection | |
| Sensors | Lack of paper detection, open cover detection, overtemperature detection |
| Function | Support two-color printing and screen display |
| Power Supply | |
| Input | AC 100V-240V 50/60HZ |
| Output | DC 24V/2.5A |
| Paper | |
| Paper Type | Thermal Receipt Paper |
| Paper Width | 58mm(57.5±0.5mm)/80mm(79.5±0.5mm) |
| Paper Thickness | 0.04-0.08mm |
| Roll Dia | Max. Ø 82 mm |
| Paper Load | Easy paper loading |
| Paper Cut | Auto-cutter (half cut) |
| Physical Characteristics | |
| Working Condition | 5℃-45℃, 10%-90%RH |
| Storage Condition | -20℃-60℃, 10%-90%RH |
| Dimensions | 128(D)x129(W)x132.6(H)mm |
| Net weight | Net weight: 1.0kg; Gross weight: 1.7kg |
| Reliability | |
| Printing head | 150KM |
| Cutter | 2.0million |
| Accessories | |
| Accessories | USB data cable, Power adaptor, Power cord, Paper roll, CD, Manual, Paper separator, Serial cable (optional) |
| Packing | |
| Individual box | Dimension 230×155×144mm(L×W×H) 1unit/carton |
| Master carton | Dimension 480×310×490mm(L×W×H) 12unit/carton |
| OS | |
| Emulation | ESC/POS |
| Driver | Windows/Linux/Mac |
| SDK | Android/iOS/Windows |
| Safety standard | CCC/ROHS/CE |
| Website | www.zywell.net/www.zywell.com |
