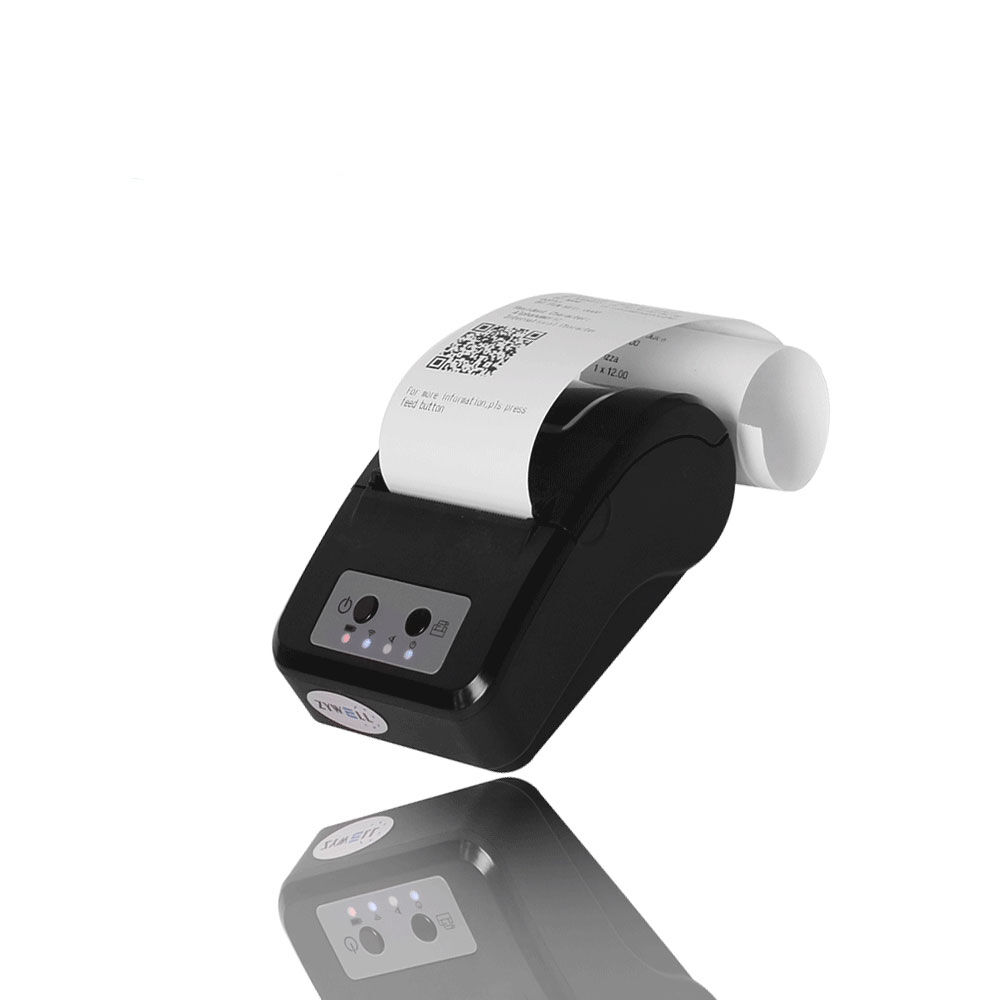

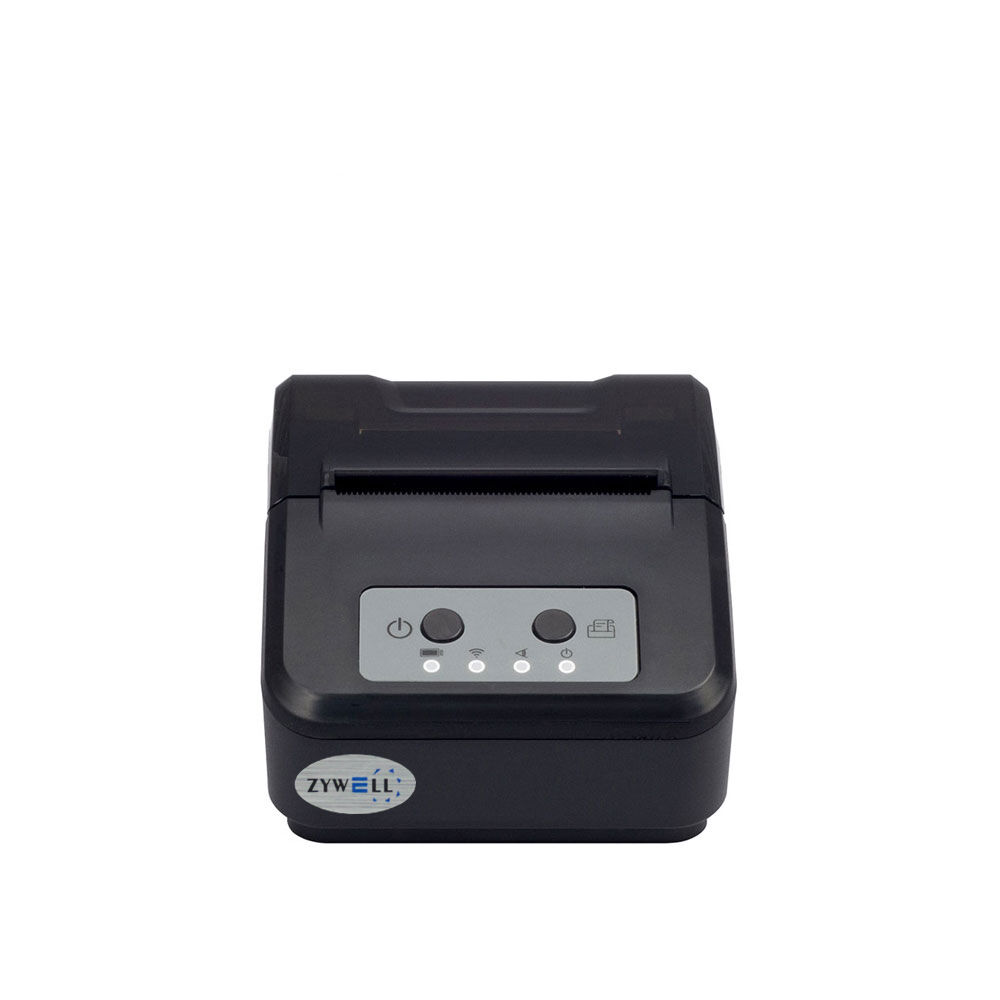

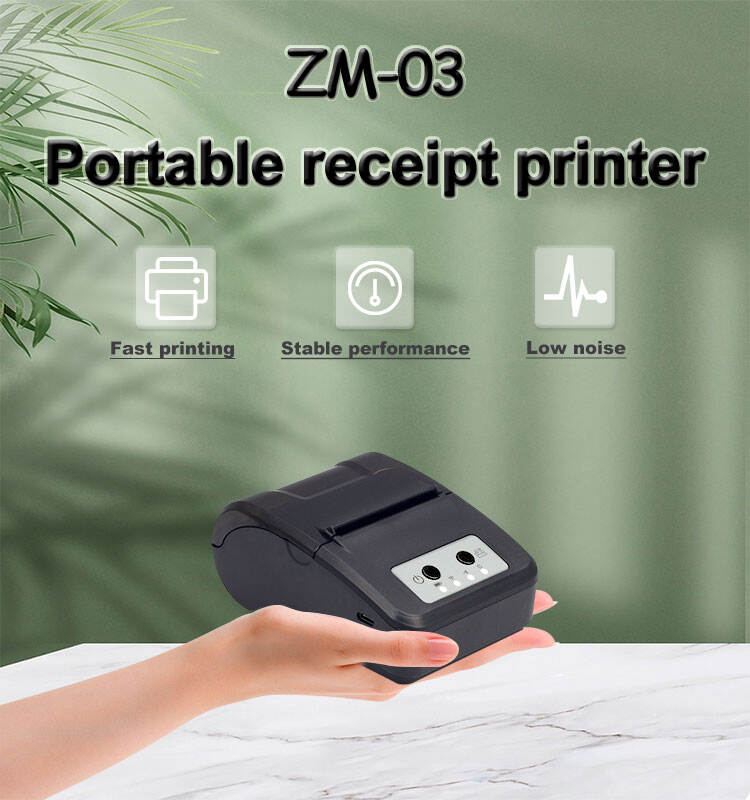

ZYWELL ZM03 Portable Pos Printer
Smart Power Management: Features an intelligent energy-saving system (60s auto-sleep / 30min auto-off) to maximize operational uptime.
Extended Endurance: Equipped with a high-capacity 1800mAh battery, providing up to 7 days of standby time and long-duration continuous use.
On-the-Road Charging: Supports Type-C and USB charging, including vehicle-mounted charging compatibility for drivers and field service technicians.
Multi-Interface Options: Available with Bluetooth, WiFi, and USB connectivity to suit various wireless environments.
Precision Printing: Supports black mark orientation to ensure accurate positioning for pre-printed forms or specific ticket types.

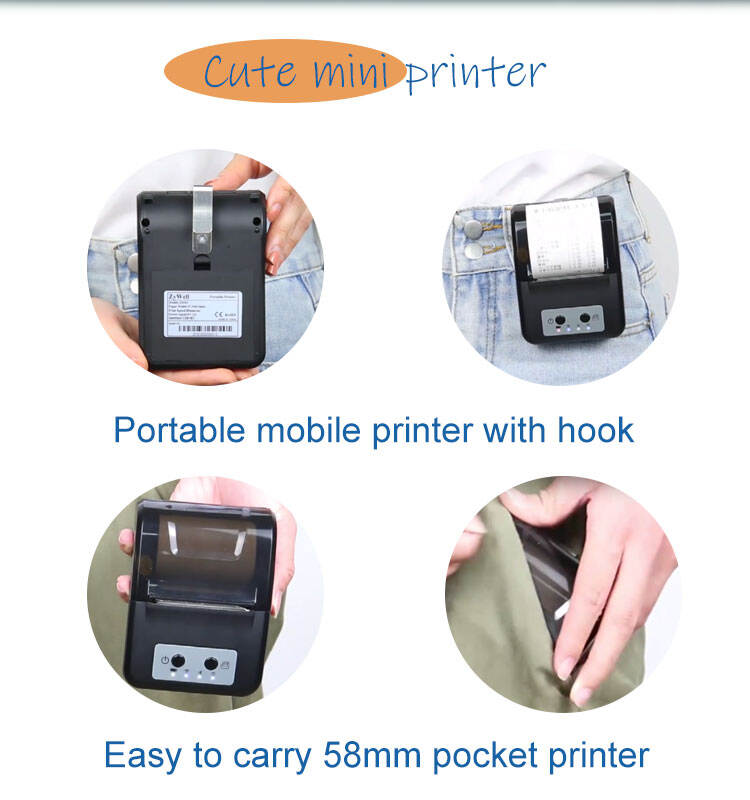

Compact & Lightweight: Engineered for handheld comfort with a small footprint that fits easily into a pocket or carrying case.
Fashionable Ergonomics: A sleek, modern design that combines professional aesthetics with industrial-grade durability.
- Overview
- Parameter
- Product Details
- Recommended Products
IOS Thermal Printer is a special type of thermal printer used on the Apple operating system. It has many technical features, let's take a look at these together:
1. Easy to use
The printer is easy to operate and users do not need to install drivers or any type of software. Simply connect the device through Bluetooth or WiFi to print. This brings great convenience to users, especially in scenarios where mobile printing is required.
2. Save paper and ink
This printer adopts thermal sensitive heat transfer technology, which saves consumables such as ink or ribbon compared to conventional printers. At the same time, when printing, using a thermal head to heat up and directly print the handwriting and images on the paper will not result in excessive waste.
3. High quality
This printer is not limited by resolution, and high-definition images can achieve extremely clear printing effects. This also makes it widely used in various applications, such as printing Commercial paper, receipts and other highly compatible documents.
4. Significant time-saving attributes
This printer is easy to use and does not require any additional software installation, making it extremely fast for printing files. It can quickly adapt to busy commercial environments and improve work efficiency.
5. Multifunctionality
This printer has multiple interface modes, such as Bluetooth, WiFi, USB, and so on. These interfaces can flexibly meet the diverse needs of enterprises or businesses.
| ZM03 | |
|---|---|
| Model | ZM03 |
| Print Method | Direct Thermal |
| Resolution | 203dpi (8dots/mm) |
| Printing Width | 48mm(default)/56mm |
| Memory | Input buffer: 128K bytes, NAND Flash: 2M |
| Paper Cutter (option) | Partial cut: 1.5mm/48mm (even loading)/6mm (odd loading) |
| Interface | USB/BLUETOOTH/USB+WIFI |
| Print Speed | 80mm/s |
| Fonts | |
| Font A | 12×24 |
| Font B | 9×17 |
| Character Set | GB18030, BIG5, 24×24dots |
| Japanese/Korean | Optional |
| User-defined | Support |
| Barcode | |
| 1D | UPC-A/UPC-E/EAN-13/EAN-8/AN8/AN13, CODE39/CODE93/CODE128A/CODE128B/CODE128 |
| 2D | QR code |
| Detection | |
| Sensors | Paper out detection |
| OS | |

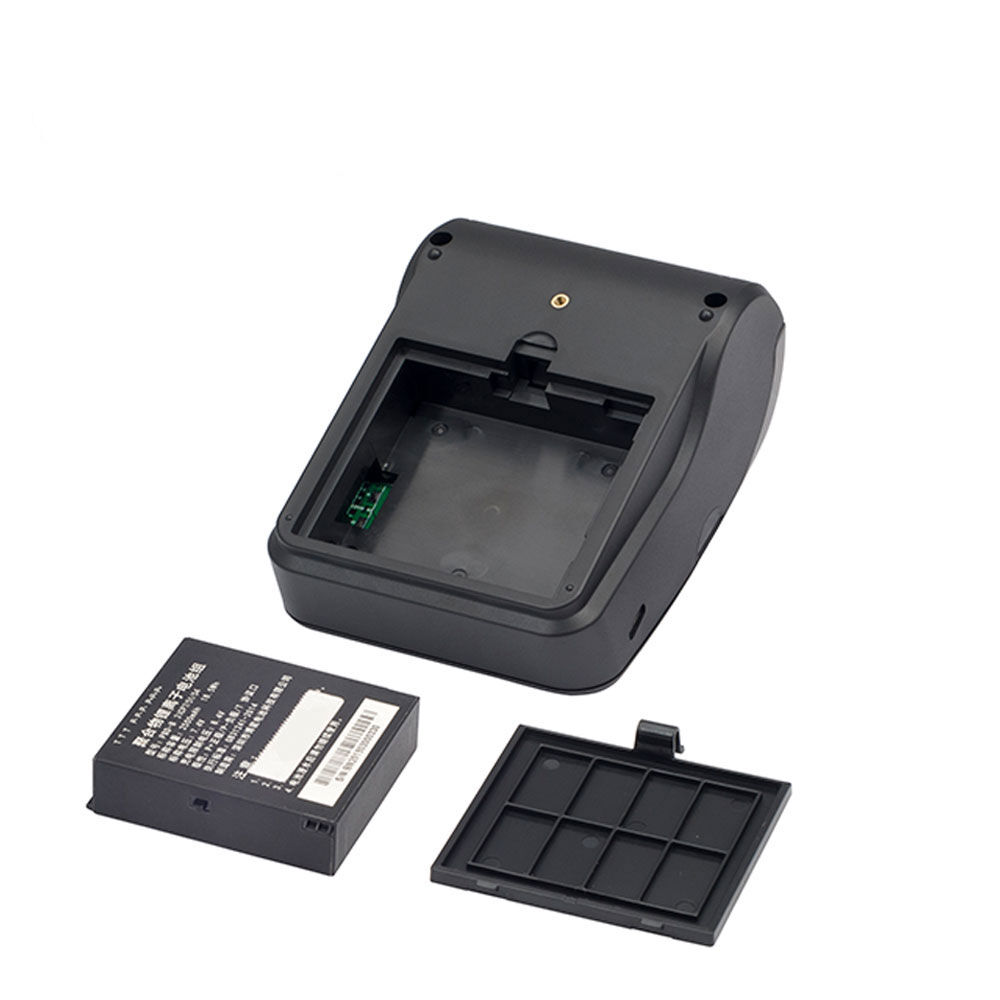

| Battery | 7.4V rechargeable Li-ion battery, 1800mAh |
| Input | AC: 100V-240V 50/60Hz |
| Output | DC: 5V/1A |
| Paper | |
| Paper Type | Thermal Receipt Paper |
| Roll Width | Max. 57/82.5mm |
| Paper Thickness | 0.05-0.15mm |
| Roll Dia. | Max. Φ40mm(OD) |
| Paper Cut | Paper, paper loading |
| Physical Characteristics | |
| Working Condition | -10°C ~ 50°C, 10% - 80% RH, no condensing |
| Storage Condition | -20°C ~ 60°C, 10% - 90% RH, no condensing |
| Dimensions | 170(D)×185(W)×58(H) mm |
| Net weight | Net weight: 0.20kg Gross weight: 0.45kg |
| Accessories | Data cable, plug, battery, paper roll, charging head, instruction manual |
| Reliability | |
| Printing head | 50KM |
| Packing | |
| Individual box Dimension | 128×66×72mm, Luntcarton |
| Master carton Dimension | 410×400×204mm, 20unit/carton |
| Emulation | |
| Driver | TSPL, TSC, ECS/POS |
| Windows, Linux, Mac | |
| Android/Apple |
