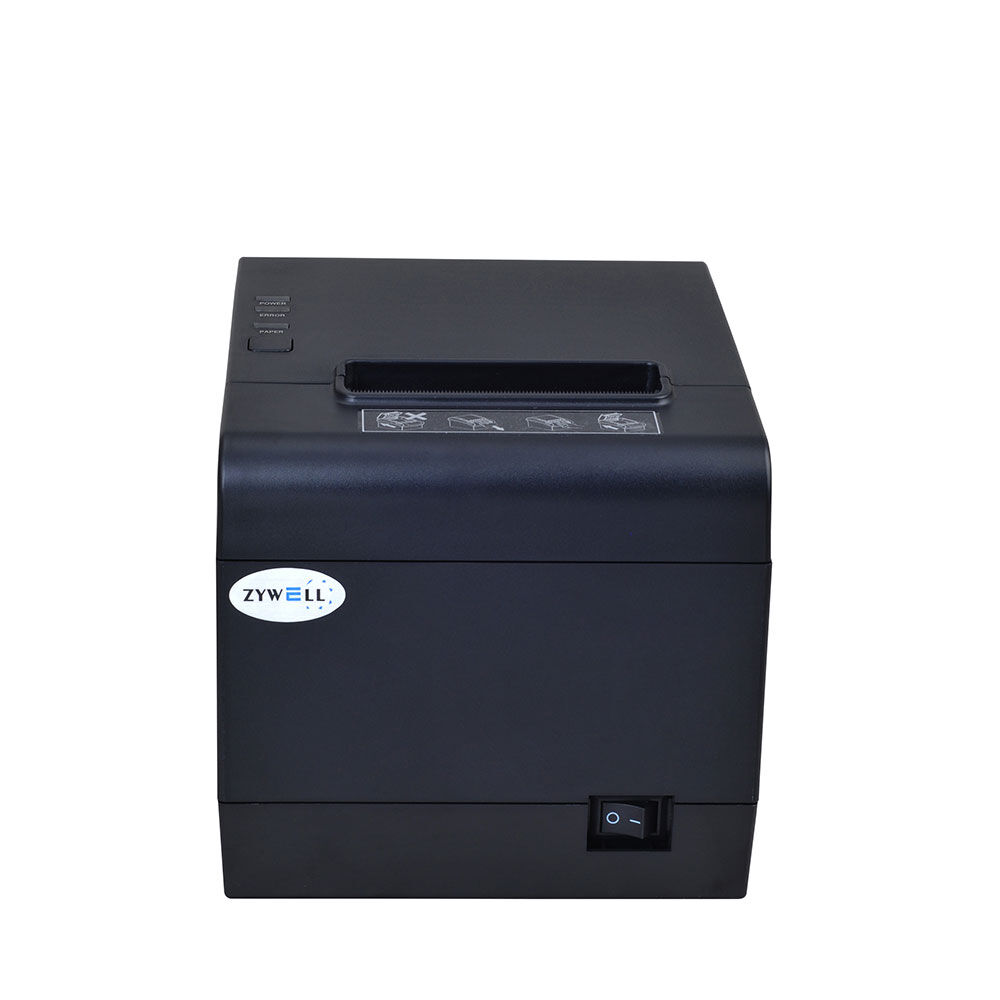

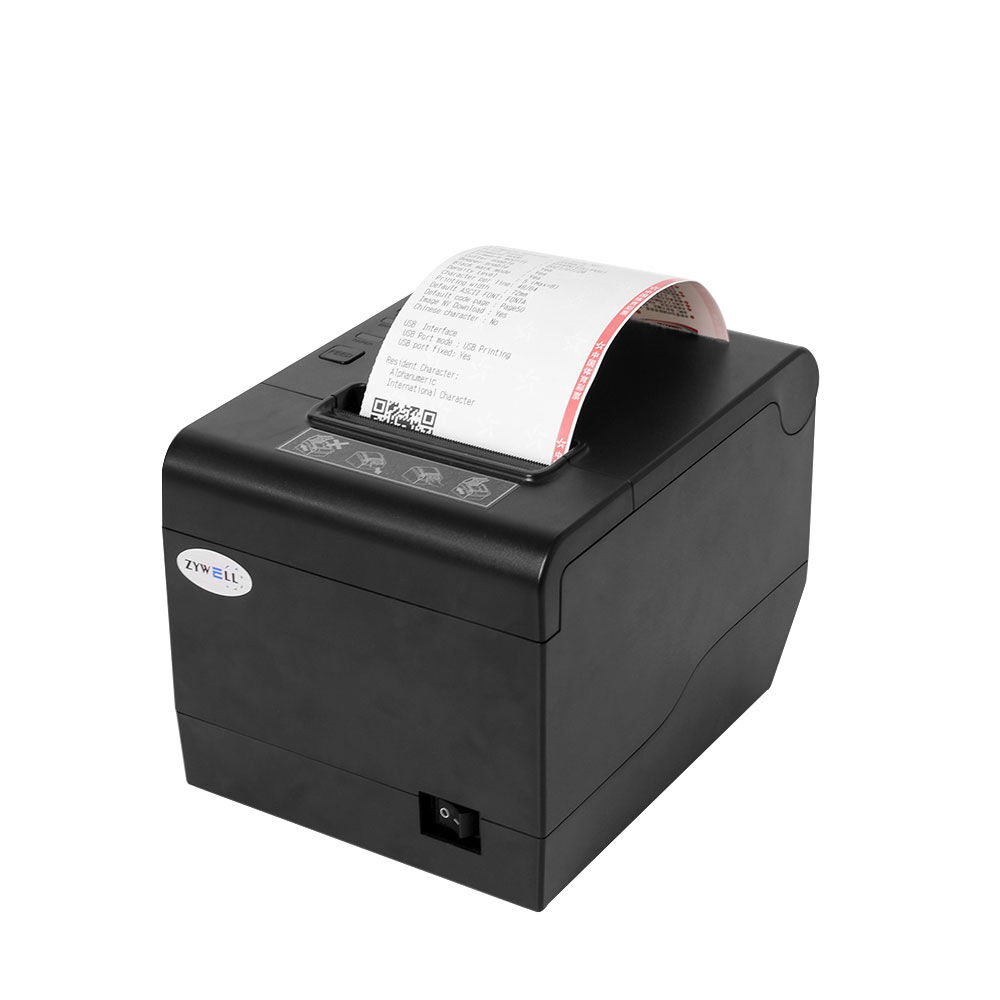

ZYWELL Zy808 Thermal Pos Receipt Printer

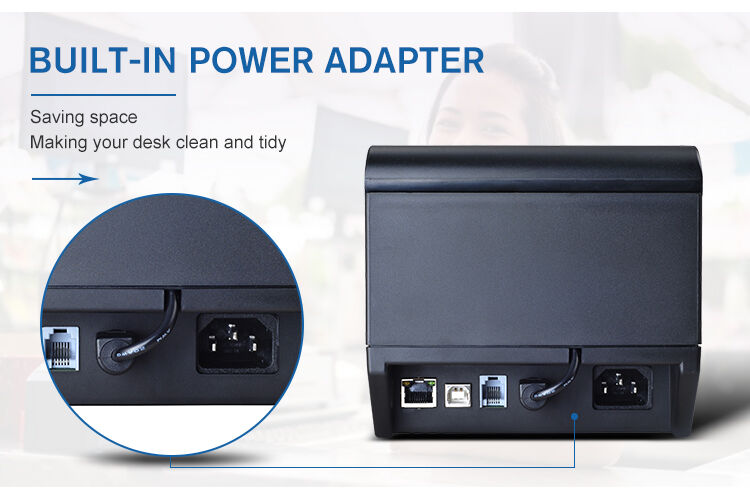

Integrated Power Architecture: Features a built-in power adapter that eliminates external "power bricks" and messy cables, creating a clean, professional countertop while maximizing workspace efficiency.
Intelligent Network Management: Supports advanced network monitoring, allowing for instant IP modifications via different gateways or QR code scanning for rapid, hassle-free configuration.
Flexible Deployment Options: Engineered with a built-in wall-hanging interface, providing the versatility to transition from desktop use to wall-mounted installations in space-constrained environments.
Hybrid Connectivity Suite: Offers comprehensive support for both Wired and Wireless printing, ensuring seamless integration into traditional Ethernet infrastructures or modern mobile-first (mPOS) ecosystems.
Optimized Space Design: A sleek, all-in-one footprint designed to reduce hardware clutter without compromising industrial-grade performance.
- Overview
- Parameter
- Product Details
- Recommended Products
The Zy808 incorporates a built-in power adapter, it eliminates cable clutter and external bricks, offering a clean, "plug-and-play" aesthetic for professional environments. Its unique dual-exit architecture—supporting both top and front paper discharge—provides the flexibility to install the unit on standard desktops, under counters, or within custom kiosks.

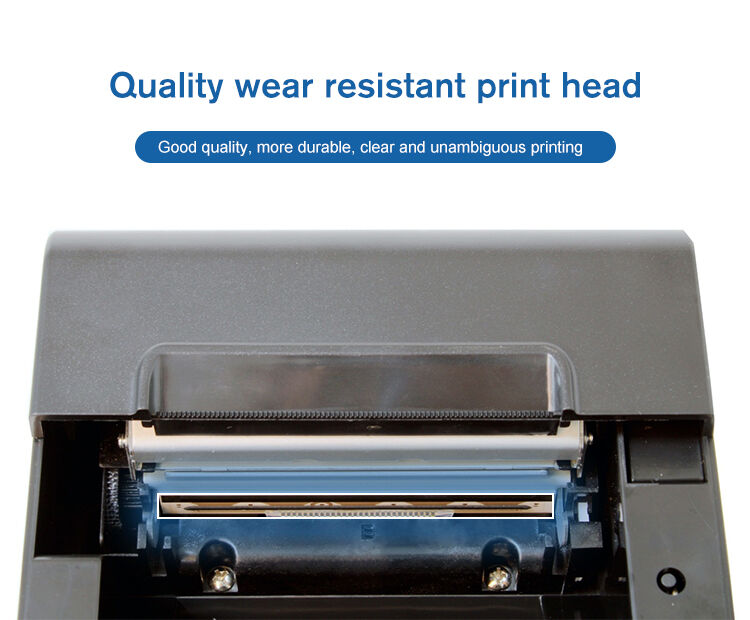

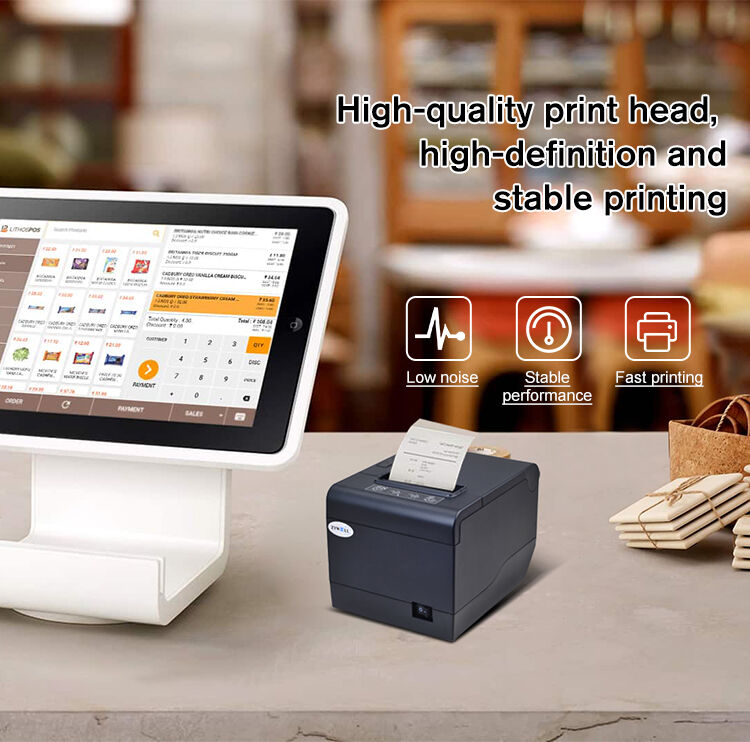

Beyond its compact design, the Zy808 is built for high-stakes reliability. Featuring anti-missing bill technology and a high-endurance 100KM print head, it ensures every transaction is processed accurately and quietly at high speeds. With smart network monitoring for instant IP configuration and support for both 58mm and 80mm media, the Zy808 is a versatile, low-maintenance asset designed to lower your total cost of ownership while maximizing operational efficiency.
| Item | Specification |
|---|---|
| Model | Zy808 |

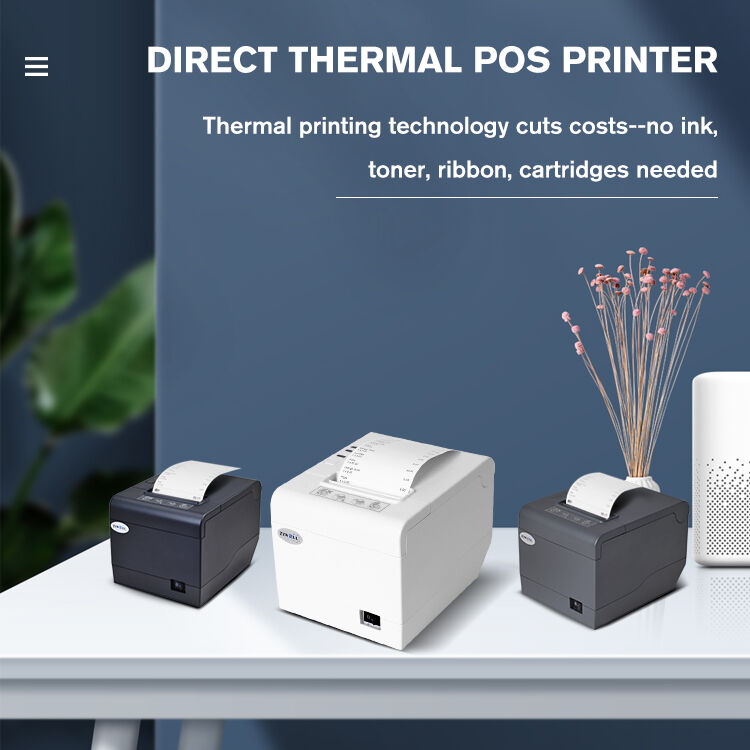

| Print Method | Direct Thermal |
| Resolution | 576 dots/line |
| Printing Width | 80mm (Max)/72mm (default) |
| Paper separator (option) | 48mm/52mm/56mm/64mm/68mm/76mm/80mm |
| Input buffer | 256k bytes |
| NV Flash | 256k bytes |
| Interface | U/U+L/U+S/U+L+S/U+BT/USB+WIFI/USB+S+L+BT/U+S+L+WIFI |
| Print Speed | 200-260mm/s |
| Fonts | |
| Font A | 12×24 |
| Font B | 9×17 |
| Chinese | GB18030, BIG5 24×24dots |
| Japanese/Korea | Optional |
| User-defined | Support |
| Barcode | |
| 1D | UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)/CODE39/ITF/CODABAR/CODE93/CODE128 |
| 2D | QR code |
| Detection | |
| Sensors | Paper shortage detection, cover opening detection, over temperature detection, knife jam detection |
| Power Supply | |
| Input | AC 100V-240V 50/60HZ |
| Output | DC 24V/2.5A |
| Paper | |
| Paper Type | Thermal Receipt Paper |
| Paper Width | Max.57.5±0.5mm or 79.5±0.5mm |
| Paper Thickness | 0.06~0.08mm |
| Roll Dia | Max. Ø 80mm |

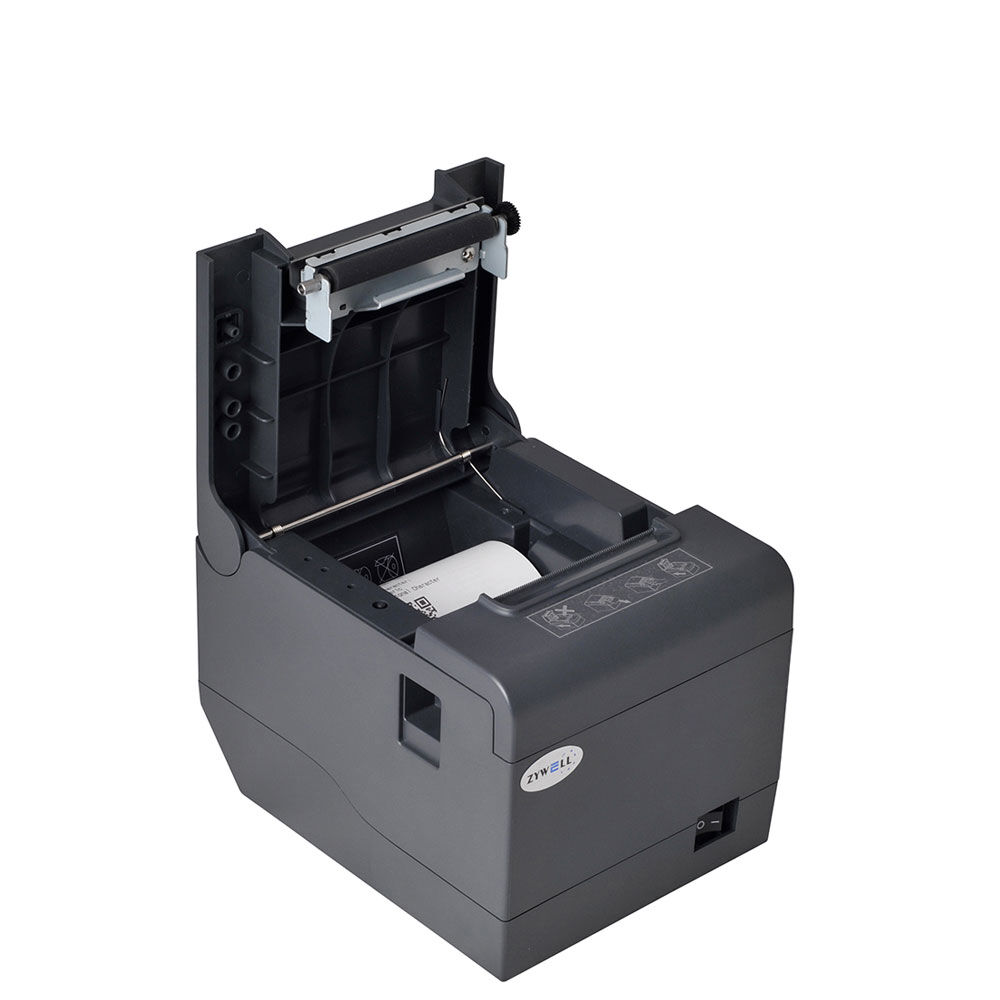

| Paper Load | Easy paper loading |

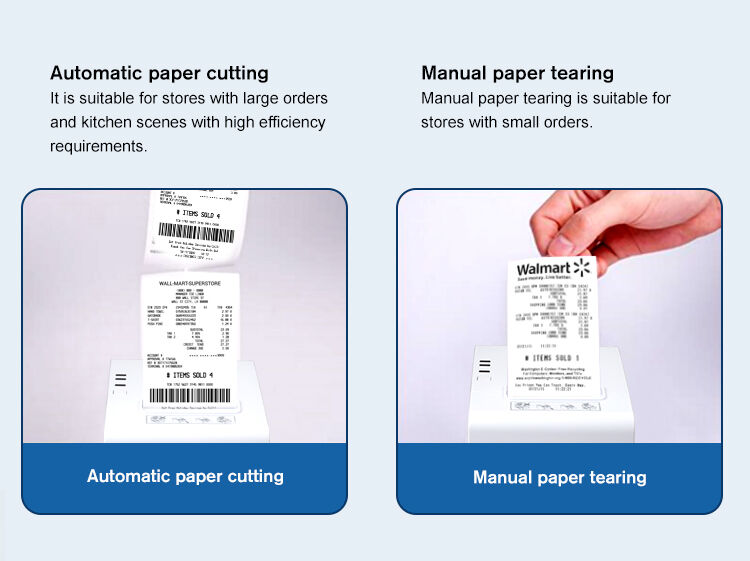

| Paper Cut | Auto-cutter |
| Physical Characteristics | |
| Working Condition | 0°C~45°C, 10%~80%RH |
| Storage Condition | -10°C~60°C,10%~90%RH |
| Dimensions | 191(D)×146(W)×129(H)mm |
| Net weight | Net weight: 1.2kg, Gross weight: 1.85kg |
| Reliability | |
| Printing head | 100KM |
| Cutter | 1.0million |

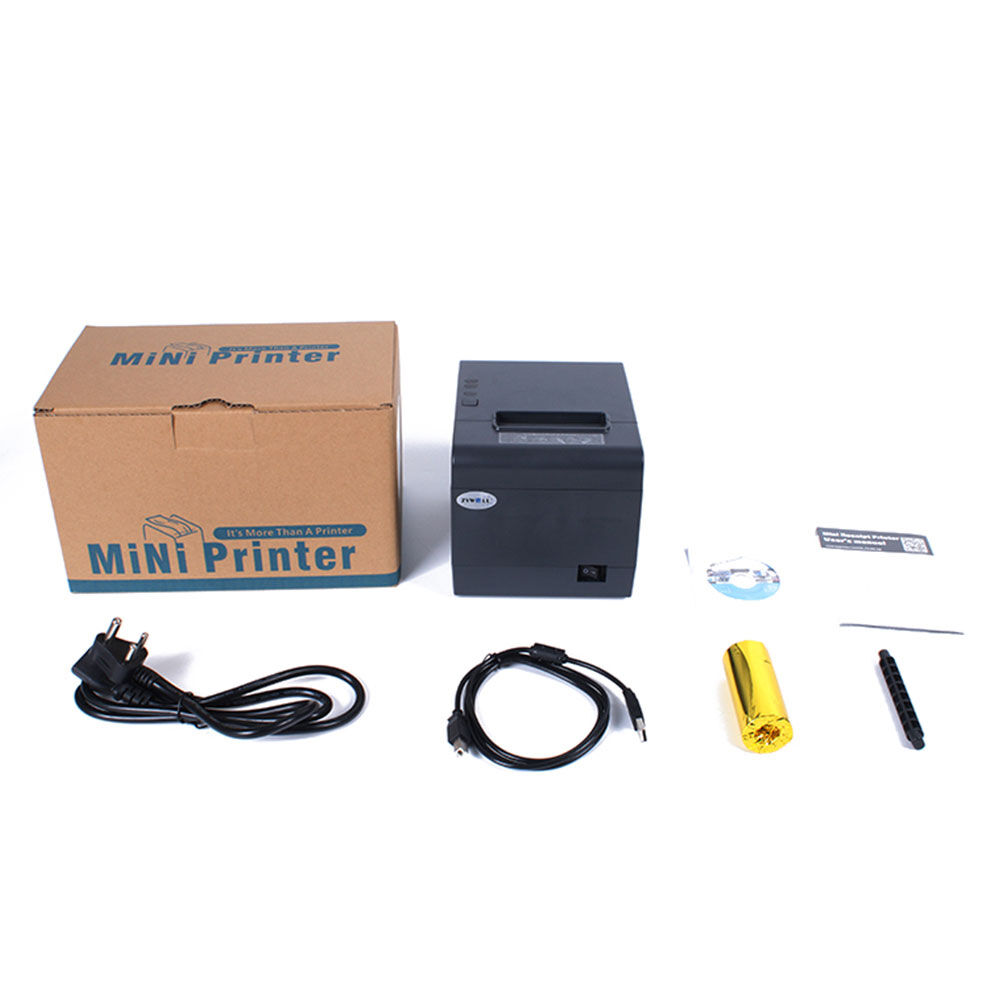

| Accessories | Data cable, power adapter, power cord, paper roll, CD, instruction manual, roller, paper baffle (optional) |
| Packing | |
| Individual box | Dimension 266×164×160mm(L×W×H) 1unit/carton |
| Master carton | Dimension 575×370×535mm(L×W×H)12unit/carton |
| OS | |
| Emulation | ESC/POS |
| Driver | Windows/Linux/Mac |
| SDK | Android/IOS/Windows |
